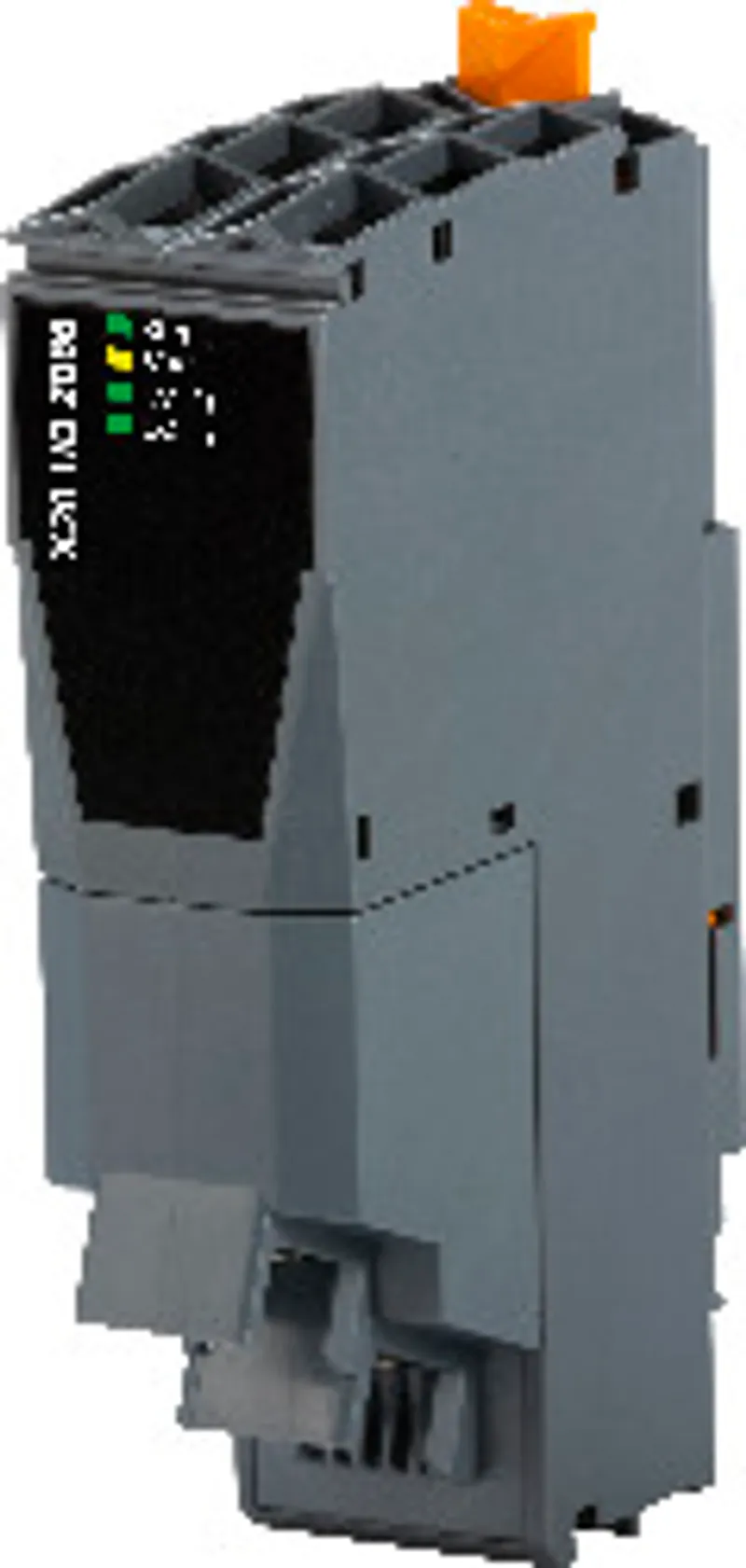

What is the B&R X20HB2886?
Active hub expansion module
2x 100 BASE-FX hub for redundant wiring
Hot-swap-capable
The X20BC8084 POWERLINK bus controller and the X20HB8884 module are equipped with an integrated link selector function. An additional 1 or 2 slots are available, depending on the bus base used. The active X20HB2886 hub expansion module can be operated in these slots. Note that the hardware revision of the X20BC8084 and the X20HB8884 must be ≥E0.
The active hub expansion module is equipped with one integrated 2x hub and allows redundant wiring. This means that the connection between the two 100 Base-FX interfaces remains intact if there is a failure in the bus controller or Compact Link Selector. The Ethernet connection is made using 62.5/125 μm or 50/125 µm fiber optic multimode cable with a duplex LC connection. The status of the module and network are indicated by LEDs.
Specifications
Short description
| Hub | 2 Fast Ethernet interfaces for fiber optic cables for redundant wiring |
General information
| Diagnostics – Module status | Yes, using LED status indicator |
| Diagnostics – Bus function | Yes, using LED status indicator |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| Status indicators | Module status, bus function |
| Power consumption | 2.3 W (rev. <D0: 2.8 W) |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Interfaces
| Transfer – Physical layer | 100BASE-FX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | No |
| Transfer – Autonegotiation | No |
| Transfer – Auto-MDI/MDIX | No |
| Optical power budget – Glass fiber 62.5/125 µm, NA = 0.275 | 11 dB |
| Optical power budget – Glass fiber 50/125 µm, NA = 0.200 | 7.7 dB |
| Line length – Half-duplex | Max. 400 m between 2 stations (segment length) |
| Line length – POWERLINK | Max. 2 km between 2 stations (segment length) |
| Type | Active hub expansion module |
| Variant | 2x female duplex LC |
| Transfer rate | 100 Mbit/s |
| Hub propagation delay | 0.96 to 1 µs |
| Wave length | Typ. 1300 nm Rx range: 1270 to 1380 nm Tx range: 1270 to 1380 nm |
| Cable fiber type | Multimode fiber with 62.5/125 µm or 50/125 µm core diameter ; On both sides: Male duplex LC connector |
Electrical properties
| Electrical isolation | Power supply isolated from Ethernet (IF1 and IF2) |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation (with ≥2 hubs) | -25 to 50°C (Rev. <D0: 0 to 40°C) |
| Temperature – Vertical mounting orientation (with ≥2 hubs) | -25 to 35°C (Rev. <D0: 0 to 35°C) |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Slot | Hub expansion for X20BC8084 and X20HB8884 (note: The hardware revision of the X20BC8084 and X20HB8884 must be E0 or later.) |
Accessories
Required accessories (order separately)
| X20BC8084 | Expandable bus controllers — POWERLINK; I/O configuration and firmware update via the fieldbus; Integrated compact link selector function; 2 active hub expansion module… |
| X20BB82 | System modules for expandable bus controllers — Bus base with 2 expansion slots The bus module has 2 expansion slots. The following modules are used on this module: Base module (BC, HB, e… |
| X20HB8884 | X20 redundancy systems — Connecting POWERLINK devices to the POWERLINK cable redundancy system; Integrated compact link selector function POWERLINK is a standard pr… |
