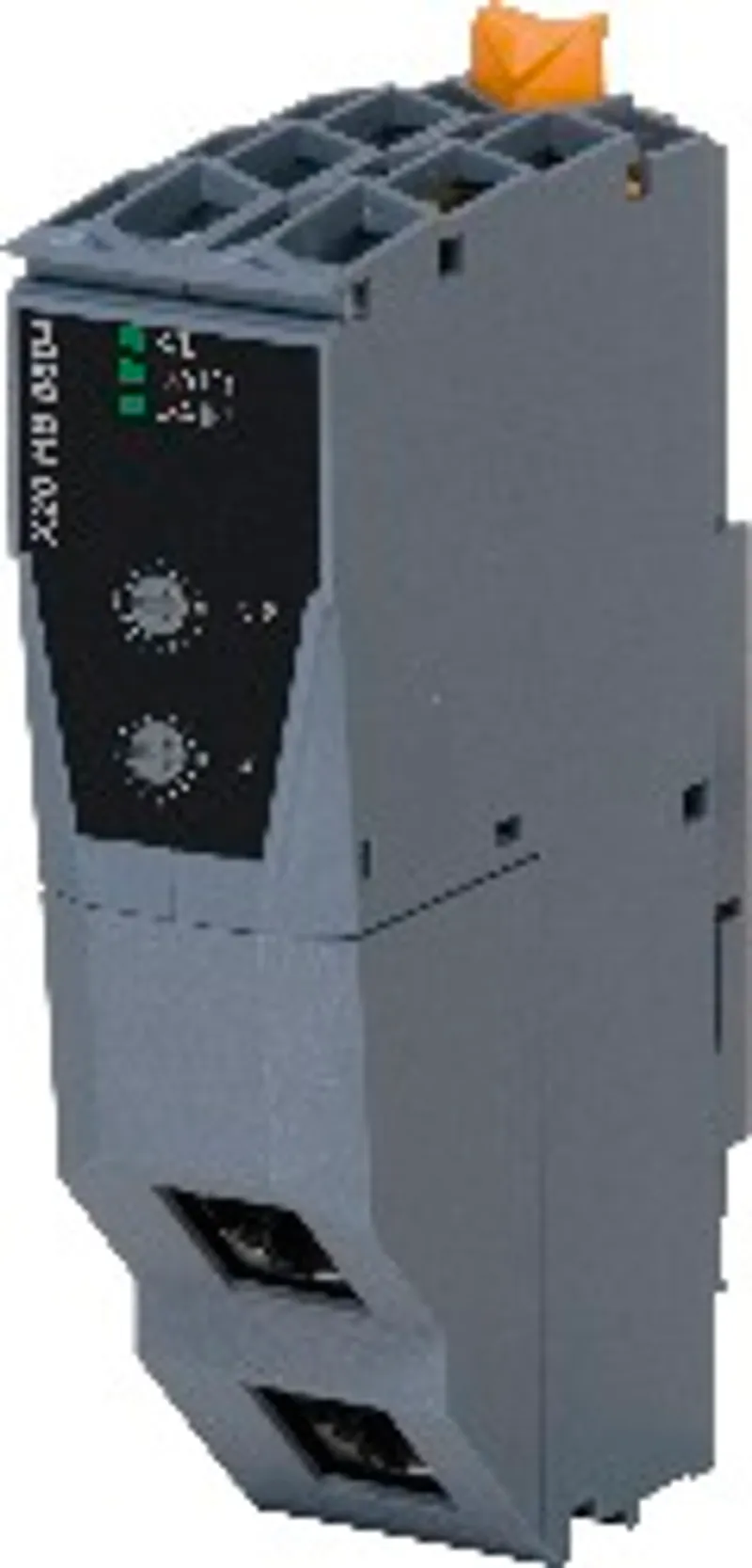

B&R X20HB8884

POWERLINK compact link selector

MPN: X20HB8884
Category: X20 redundancy systems

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20HB8884?

Connecting POWERLINK devices to the POWERLINK cable redundancy system

Integrated compact link selector function

POWERLINK is a standard protocol for Fast Ethernet with hard real-time properties. The Ethernet POWERLINK Standardization Group (EPSG) ensures that the standard remains open and is continually developed. www.ethernet-powerlink.org

Systems with redundant cabling can be implemented easily using POWERLINK. Unlike ring redundancy, cable redundancy does not require cable looping, which can sometimes be problematic. This allows the creation of all types of tree structures. When using a device with the link selector function, data is always transferred via the highest quality network lines. The link selector function is integrated in the module compact link selector. This makes it easy to connect any POWERLINK device to a redundant POWERLINK network.

Specifications

Short description

POWERLINK compact link selector

Connects POWERLINK devices to a redundant POWERLINK network

General information

Diagnostics – Module status	Yes, using LED status indicator
Diagnostics – Bus function	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
Status indicators	Module status, bus function
Power consumption	2 W

Interfaces

Transfer – Physical layer	100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	No
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Type	POWERLINK compact link selector
Variant	2x shielded RJ45
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Hub propagation delay	0.96 to 1 µs

Electrical properties

Electrical isolation

Power supply isolated from POWERLINK (IF1 and IF2)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Pitch – X20BB81	62.5 +0.2 mm (note: Pitch is based on the width of bus base X20BB81 or X20BB82. 1 X20HB2880 hub expansion module or 2 X20HB2885 hub expansion modules and 1 X20PS8002 power supply module are also always required for the compact link selector.)
Pitch – X20BB82	87.5 +0.2 mm (note: Pitch is based on the width of bus base X20BB81 or X20BB82. 1 X20HB2880 hub expansion module or 2 X20HB2885 hub expansion modules and 1 X20PS8002 power supply module are also always required for the compact link selector.)
Note	Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20PS8002 separately. ; Order 1x hub expansion module X20HB2880 or 2x hub expansion module X20HB2885. ; Order 1x bus base X20BB81 or X20BB82 separately.

Accessories

Required accessories (order separately)

X20PS8002	System modules for X20 hub systems — Supply for X20 stand-alone devices; No electrical isolation between the I/O supply and the device power supply The supply module is used to…
X20HB2880	System modules for X20 hub systems — Hub expansion module; 2x hub 100 BASE-TX POWERLINK bus controller X20BC8083, standalone hub X20HB8880 and the POWERLINK TCP/IP gateway X20H…
X20HB2885	System modules for X20 redundancy systems — Active hub expansion module; 2x Fast Ethernet hub for redundant wiring; Hot-swap-capable The X20BC8084 POWERLINK bus controller and the X20…
X20BB82	System modules for expandable bus controllers — Bus base with 2 expansion slots The bus module has 2 expansion slots. The following modules are used on this module: Base module (BC, HB, e…
X20BB81	System modules for expandable bus controllers — Bus base with one expansion slot The bus module has an expansion slot. The following modules are used on this module: Base module (BC, HB,…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
