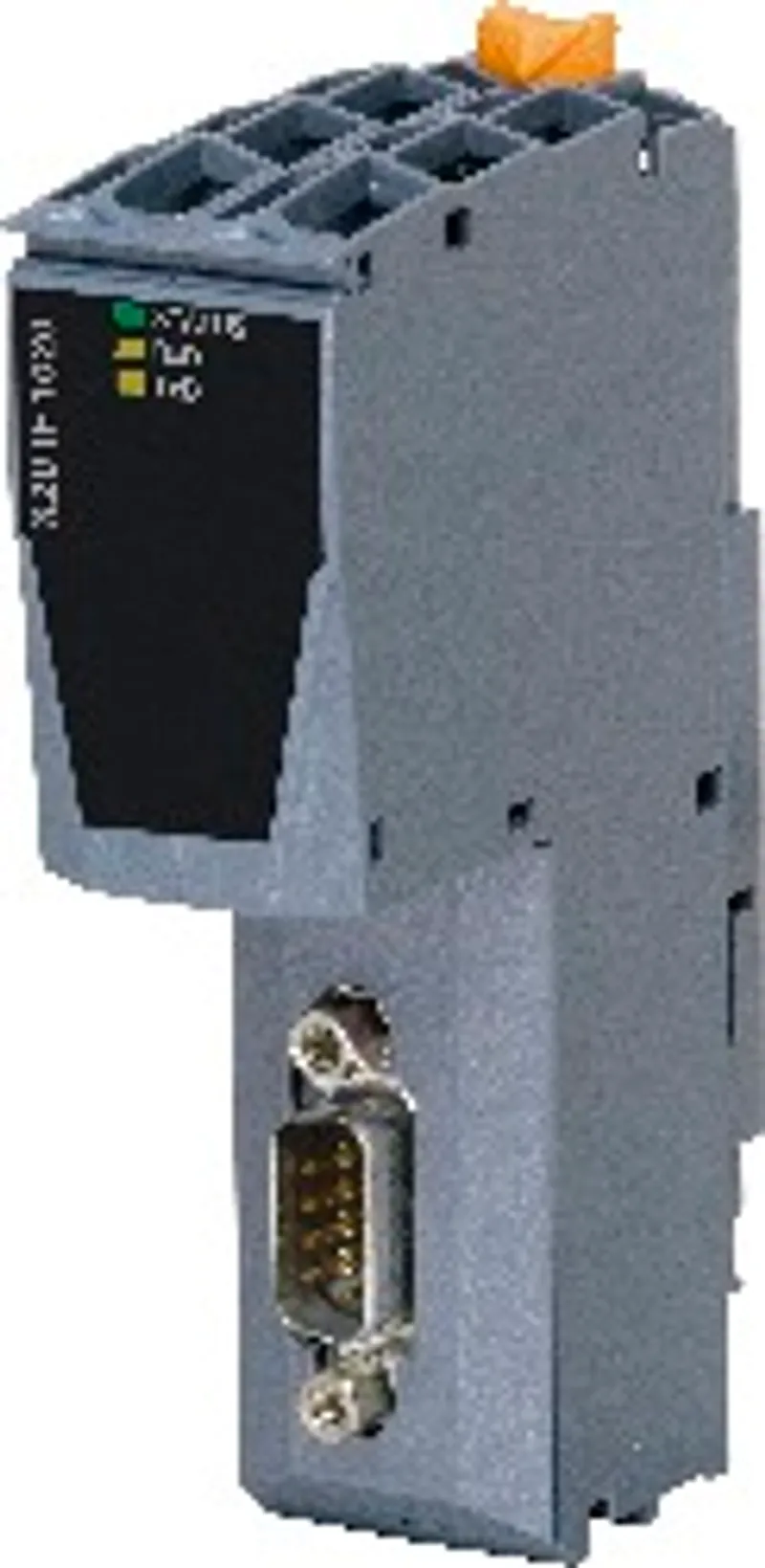

B&R X20IF1020

Communication module, 1x RS232

MPN: X20IF1020
Category: X20 interface module communication

€263.94excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20IF1020?

The RS232 interface can be configured as an online interface

The interface module is used for application-specific expansion of the X20 controllers. It is equipped with an RS232 interface.

Specifications

Short description

Communication module

1x RS232

General information

Diagnostics – Module status	Yes, using LED status indicator
Diagnostics – Data transfer	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x1F27
Status indicators	Module status, data transfer
Power consumption	0.35 W
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Interface IF1 – Data bits	5 to 8
Interface IF1 – Parity	Yes / No / Even / Odd
Interface IF1 – Stop bits	1 or 2
Interface IF1 – Signal	RS232
Interface IF1 – Variant	9-pin male DSUB connector
Interface IF1 – Max. distance	900 m
Interface IF1 – Transfer rate	Max. 115.2 kbit/s
Interface IF1 – Network-capable	No
Interface IF1 – FIFO buffer	16 bytes in the transmit and receive directions
Interface IF1 – Handshake lines	RTS, CTS
Interface IF1 – Controller	UART type 16C550 compatible

Electrical properties

Electrical isolation

PLC isolated from RS232 (IF1)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Slot	In the X20 PLC

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D File DXF/STEP X20 Interface module X20IF1020, 1030ZIP · 1 MB · 2.0 (07/10/2019)
