Home / B&R / System modules for the X20 hub system / B&R X20HB2881

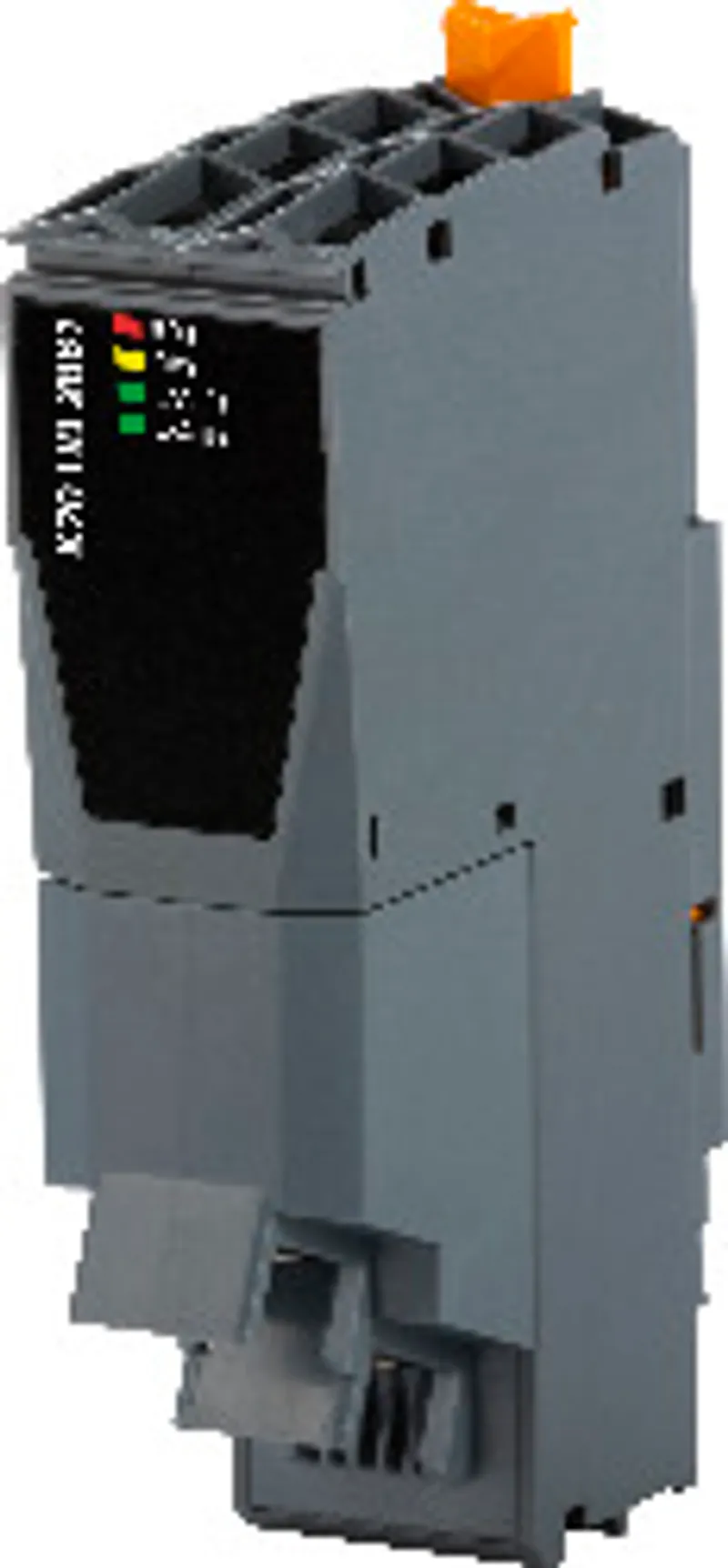

B&R X20HB2881

Q: When can X20HB2881 be shipped?

X20HB2881 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up X20HB2881 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for X20HB2881 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20HB2881, subject to availability and destination.

Hub, 2 Fast Ethernet interfaces for fiber optic cables for…

MPN: X20HB2881
Category: System modules for the X20 hub system

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20HB2881?

Hub expansion module

2x Hub 100 BASE-FX

The POWERLINK bus controller X20BC8083 and the stand-alone hubs X20HB8880 and X20HB8815 are equipped with a modular hub expansion. An additional 1 or 2 slots are available, depending on the bus base used. The X20HB2881 hub expansion module can be operated in these slots. Note that the hardware revision of the X20BC8083 and the X20HB8880 must be ≥F0.

The hub expansion module is a 2x hub. The Ethernet connection is made using 62.5/125 μm or 50/125 µm fiber optic multimode cable with a duplex LC connection. The status of the module and network are indicated by LEDs.

Specifications

Short description

Hub	2 Fast Ethernet interfaces for fiber optic cables for hub expansion

General information

Diagnostics – Module status	Yes, using LED status indicator
Diagnostics – Bus function	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
Status indicators	Module status, bus function
Power consumption	2.3 W (rev. <E0: 2.8 W)
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Transfer – Physical layer	100BASE-FX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	No
Transfer – Autonegotiation	No
Transfer – Auto-MDI/MDIX	No
Optical power budget – Glass fiber 62.5/125 µm, NA = 0.275	11 dB
Optical power budget – Glass fiber 50/125 µm, NA = 0.200	7.5 dB
Line length – Half-duplex	Max. 175 m between 2 stations (segment length)
Line length – POWERLINK	Max. 2 km between 2 stations (segment length)
Type	Hub expansion module
Variant	2x female duplex LC
Transfer rate	100 Mbit/s
Hub propagation delay	0.96 to 1 µs
Wave length	Typ. 1300 nm Rx range: 1270 to 1380 nm Tx range: 1270 to 1380 nm
Cable fiber type	Multimode fiber with 62.5/125 µm or 50/125 µm core diameter ; On both sides: Male duplex LC connector

Electrical properties

Electrical isolation

Power supply isolated from Ethernet (IF1 and IF2)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation (with 1 hub)	-25 to 55°C (Rev. <E0: 0 to 45°C)
Temperature – Horizontal mounting orientation (with ≥2 hubs)	-25 to 50°C (Rev. <E0: 0 to 40°C)
Temperature – Vertical mounting orientation (with 1 hub)	-25 to 40°C (Rev. <E0: 0 to 40°C)
Temperature – Vertical mounting orientation (with ≥2 hubs)	-25 to 35°C (Rev. <E0: 0 to 35°C)
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Slot	Hub expansion for X20BC8083 and X20HB8880 (note: The hardware revision of the X20BC8083 and X20HB8880 must be F0 or later.)

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (15)

X20HB2881: frequently asked questions

When can X20HB2881 be shipped?

X20HB2881 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20HB2881 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20HB2881 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20HB2881, subject to availability and destination.
