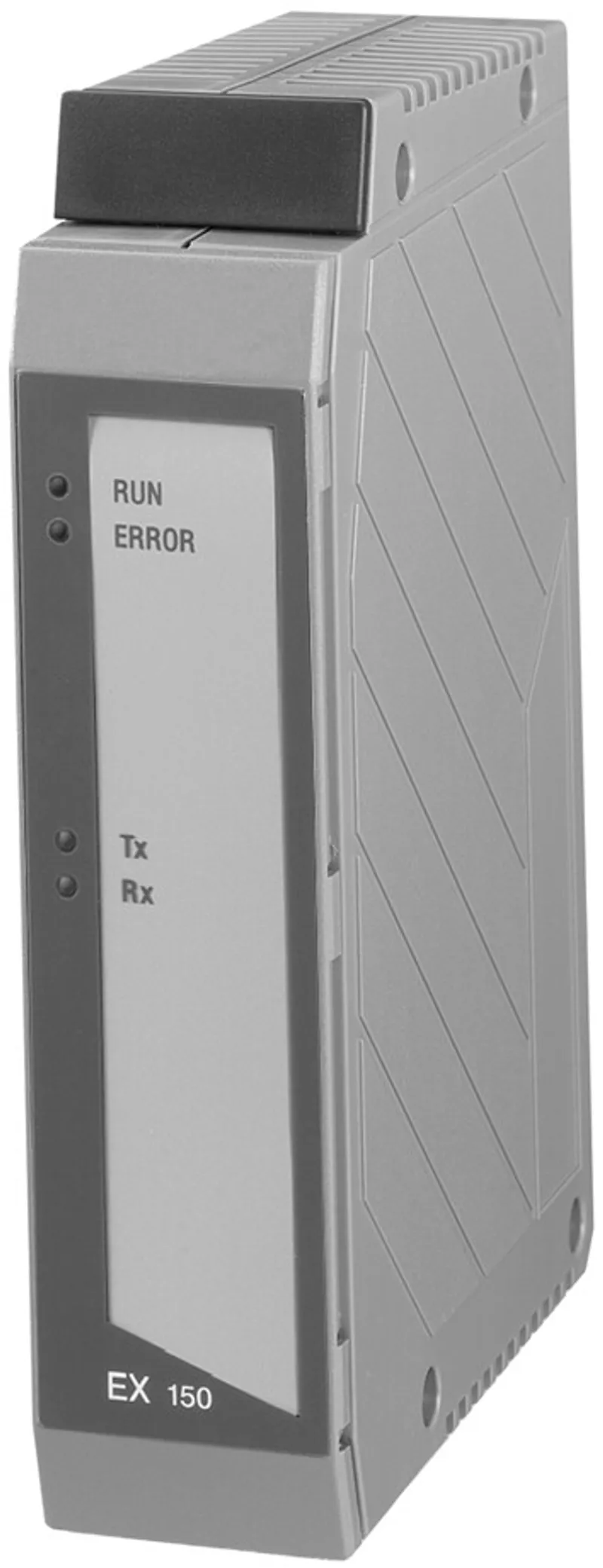

B&R 3EX150.60-1 – 2005 remote I/O master electrically isolated RS485…
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3EX150.60-1 be shipped?
3EX150.60-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3EX150.60-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3EX150.60-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3EX150.60-1, subject to availability and destination.
2005 remote I/O master electrically isolated RS485 interface for connecting to remote I/O bus
Accessories
Optional accessories (2)
| 0G1000.00-090 | Infrastructure components — The RS485 bus connector is used to connect a controller to a Profibus network or an RS485 network. The terminating resistor is integrated i… |
| 0AC916.9 | Infrastructure components — Bus termination, RS485, active for PROFIBUS networks, remote I/O standard top-hat rail mounting supply voltage: 120 / 230 VAC |
Specifications
General Information
| C-UL-US Listed | Yes |
| B&R ID Code | $01 |
| Serial Interface | RS485 |
| Design | 9-pin DSUB socket |
| Electrical Isolation | Yes |
| Baud Rates | Depends on the distance |
| 100 kBit/s | Max. 1,200 m |
| 181 kBit/s | Max. 1,000 m |
| 500 kBit/s | Max. 400 m |
| 1000 kBit/s | Max. 200 m |
| 2000 kBit/s | Max. 100 m |
| Remote I/O Bus – Access Procedure | Master-slave principle |
| Remote I/O Bus – Number of Slaves | Max. 31 (without repeater) |
| Remote I/O Bus – Topology | Physical bus |
| Remote I/O Bus – Connection to the Bus | Direct |
| Remote I/O Bus – Transfer Media | Shielded, twisted pair |
| Remote I/O Bus – Terminating Resistance | External |
| Power Consumption – 5V | Max. 5.5 W |
| Power Consumption – Total | Max. 5.5 W |
| Dimensions | B&R 2005 single-width |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 3EX150.60-1 | PDF · 452 KB · 1.0 (06/08/2004) - EN |
