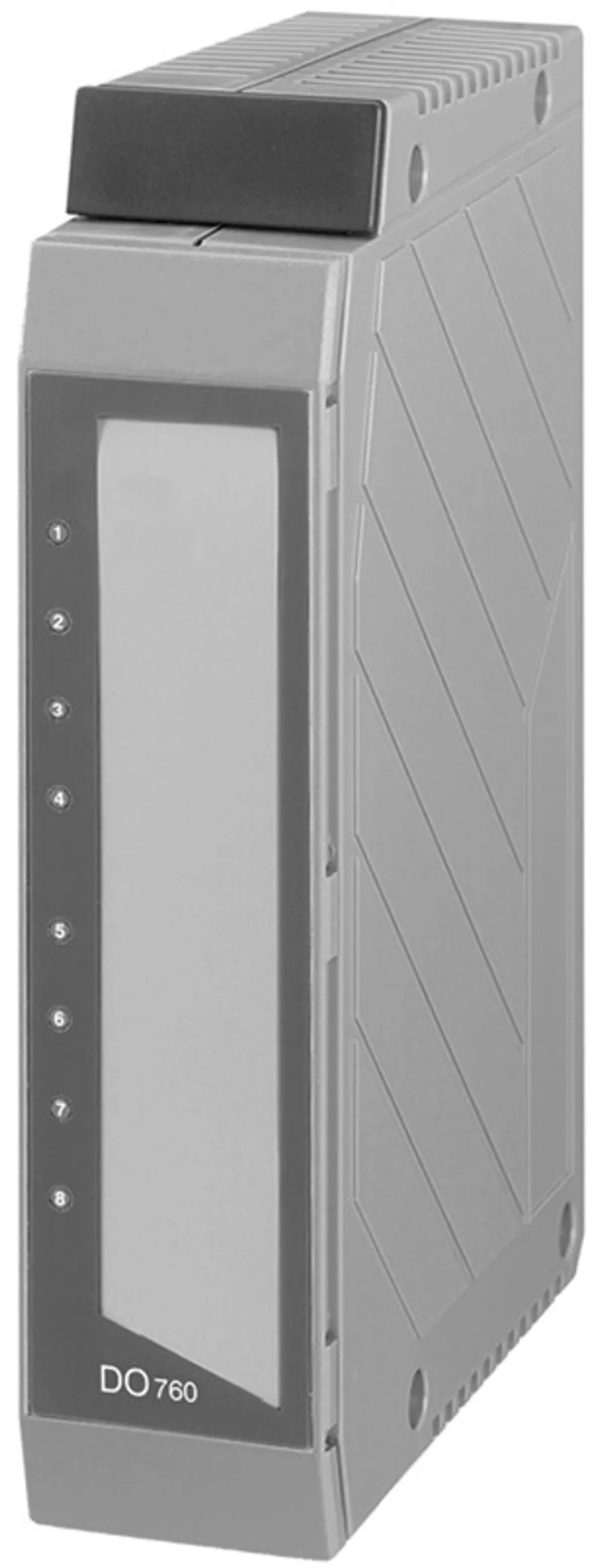

B&R 3DO760.6 – I/O module, 8 digital outputs 30 VDC / 240 VAC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3DO760.6 be shipped?
3DO760.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3DO760.6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3DO760.6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3DO760.6, subject to availability and destination.
2005 digital output module, 8 relay outputs 240 VAC / 30 VDC, 4 A, outputs single-channel isolated, order 1x terminal block TB170 separately!
Accessories
Specifications
Short description
| I/O module | 8 digital outputs 30 VDC / 240 VAC, outputs single-channel isolated |
General information
| Diagnostics – Outputs | Yes, using LED status indicator |
| Power consumption – 24 VDC | - |
| Power consumption – 5 VDC | 4.0 W |
| Power consumption – Total | 4.0 W |
| Power consumption – External | 4.0 W |
| Electrical isolation – Channel - Channel | 1 minute 1000 VAC or 1.4 kV @ 1.2 x 50 µs pulse |
| Electrical isolation – Channel - PLC | 1 minute 2800 VAC or 4 kV @ 1.2 x 50 µs pulse |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | I/O function per channel |
Digital outputs
| Variant | Relay / 4 changeover contacts and 4 normally open contacts; the channels are single-channel isolated. |
| Nominal voltage | 30 VDC to 240 VAC |
| Rated frequency | DC / 45 to 63 Hz |
| Nominal output current | 4.0 A |
| Total nominal current | 32.0 A |
| Switching capacity | 120 W @ 30 VDC (resistive load) / 2000 VA |
| Sensor power supply | External |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | System 2005 single-width |
| Can be installed on – Base unit | Yes |
| Can be installed on – Expansion unit | Yes |
| Note | Order 1x terminal block TB170 separately. |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 3DO760.6 | PDF · 305 KB · 1.0 (06/08/2004) - EN |
More B&R parts
Available on requestB&R 3DO487.6 – I/O module, 16 digital outputs 24 VDC in 2 groups
Available on requestB&R 3DO650.6 – I/O module, 16 digital outputs 24 VDC / 120 VAC in 4 groups
Available on requestB&R 3DO690.6 – I/O module, 8 triac outputs 120 VAC in 2 groups
Available on requestB&R 3DO750.6 – I/O module, 8 digital outputs 24 VDC / 230 VAC in 2 groups
Available on requestB&R 3EX150.60-1 – 2005 remote I/O master electrically isolated RS485…
Available on requestB&R 3EX250.60-1 – 2005 remote I/O slave controller electrically isolated…

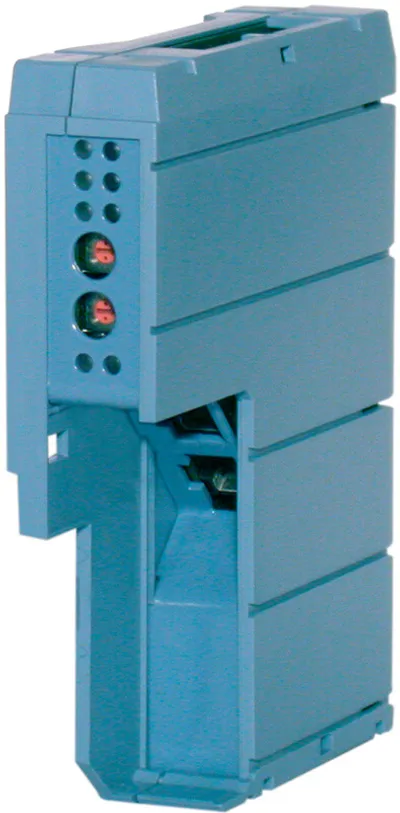

Available on requestB&R 3EX282.6 – Bus controller, POWERLINK controlled node

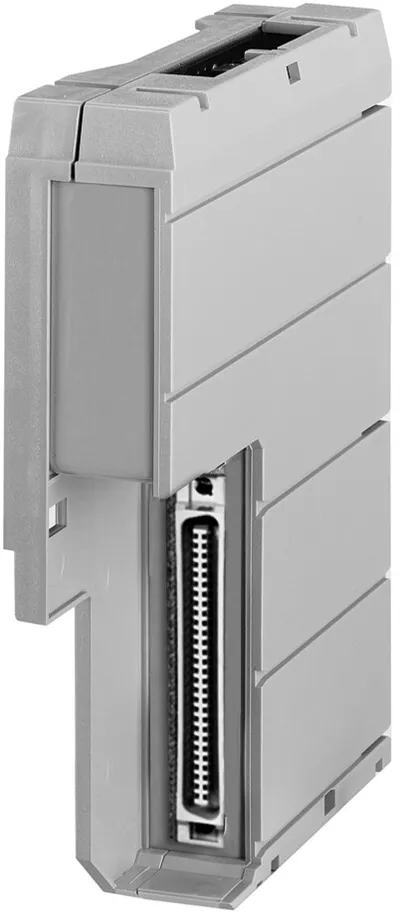

Available on requestB&R 3EX350.6 – Bus controller, I/O master controller
