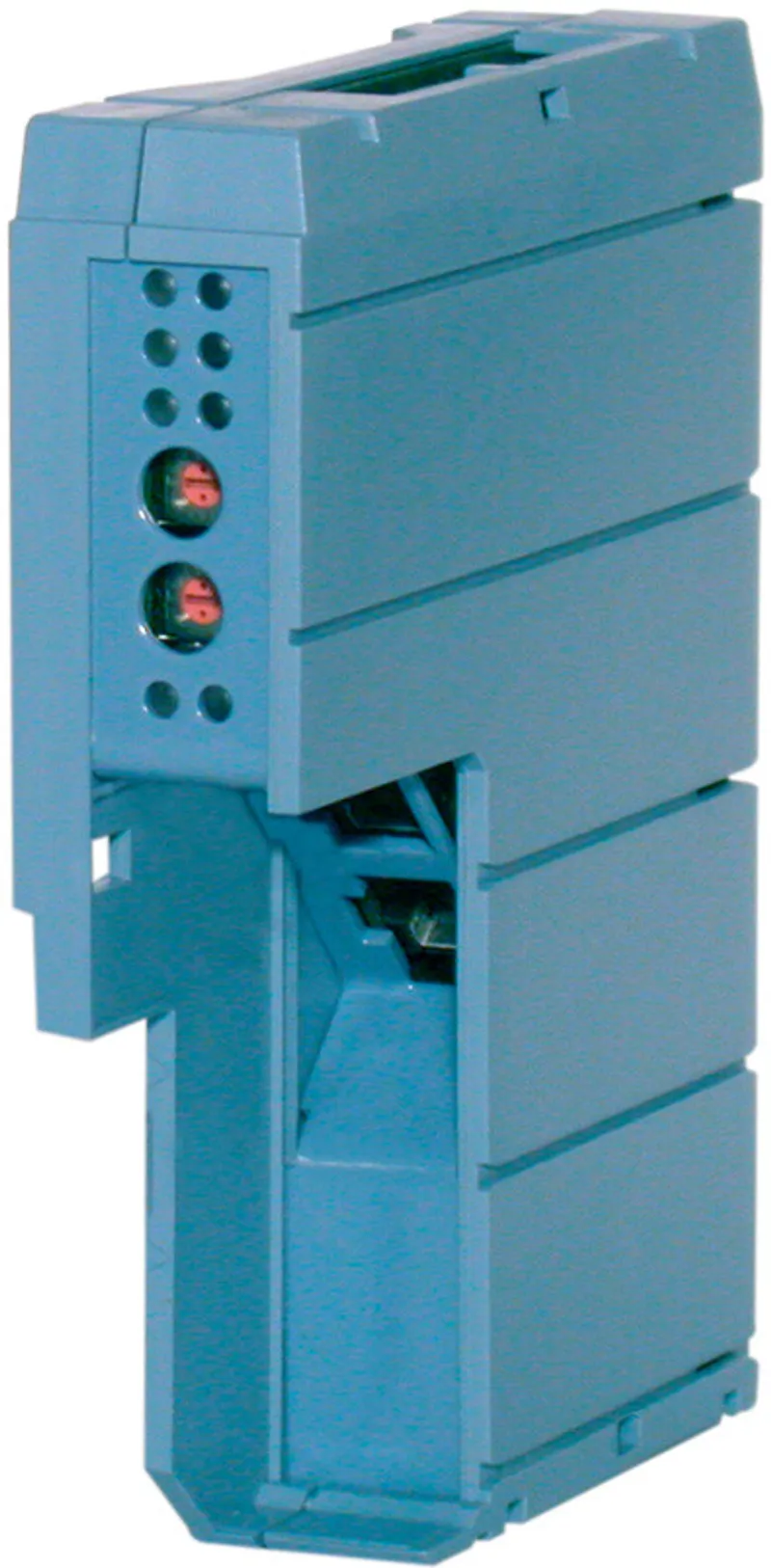

B&R 3EX282.6 – Bus controller, POWERLINK controlled node
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3EX282.6 be shipped?
3EX282.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3EX282.6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3EX282.6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3EX282.6, subject to availability and destination.
2005 POWERLINK bus controller, 2 POWERLINK interfaces, electrically isolated, slot for power supply modules
Specifications
Short description
| Bus controller | POWERLINK controlled node |
General information
| Diagnostics – Module status | Yes, using LED status indicator and software |
| Diagnostics – Bus function | Yes, using LED status indicator and software |
| Power consumption – 24 VDC | - |
| Power consumption – 5 VDC | 3.8 W |
| Power consumption – Total | 3.8 W |
| Electrical isolation – PLC - POWERLINK | Yes |
| Certifications – CE | Yes |
| Certifications – UL | In preparation |
| Status indicators | Bus function, I/O module function |
Controller
| Fieldbus | POWERLINK |
| Line length | Max. 100 m between two stations (segment length) |
| Port design | Internal 2-port hub |
| Type | 100BASE-T (ANSI/IEEE 802.3) |
| Transfer rate | 100 Mbit/s |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Slot | Slot in power supply unit PS465 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 3EX282.6 | PDF · 580 KB · 1.0 (06/08/2004) - EN |
