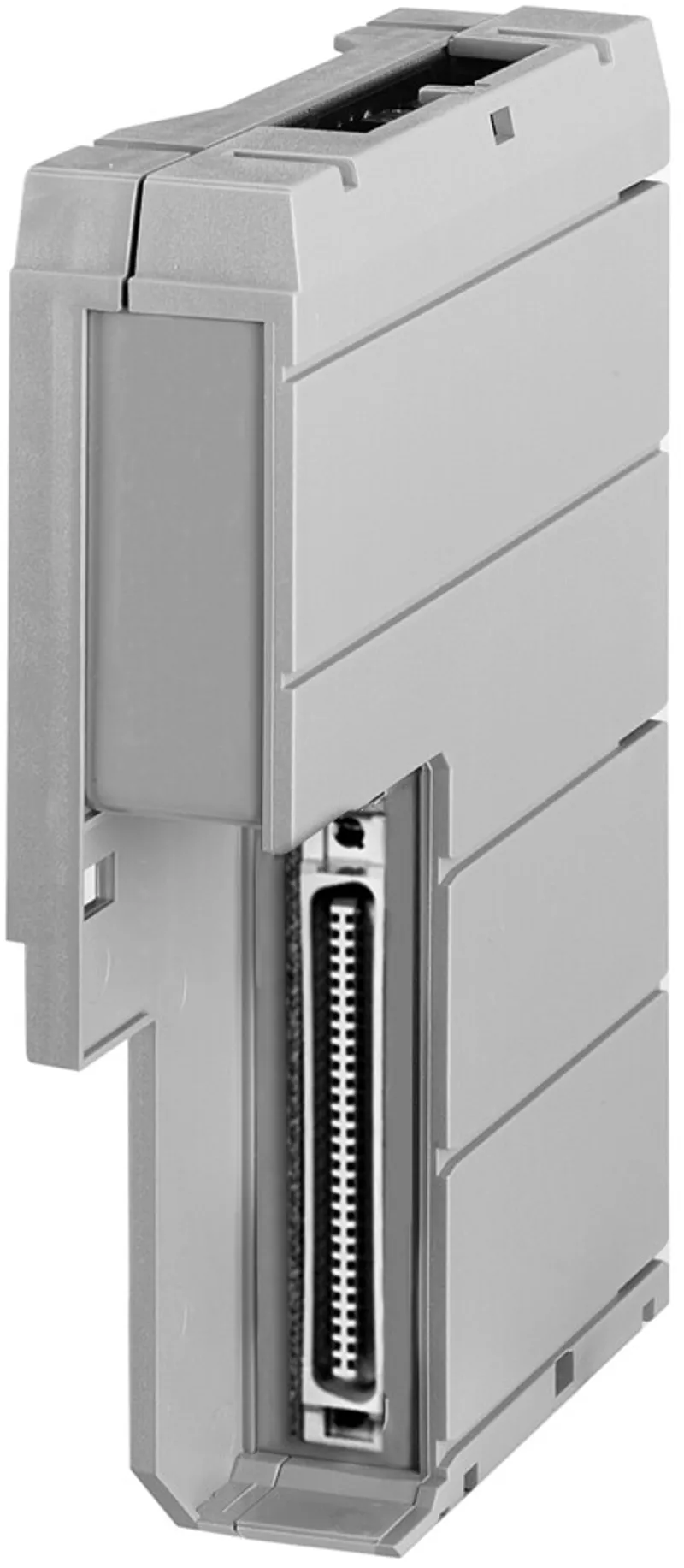

B&R 3EX350.6 – Bus controller, I/O master controller
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3EX350.6 be shipped?
3EX350.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3EX350.6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3EX350.6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3EX350.6, subject to availability and destination.
2005 local I/O master controller, operates I/O modules on up to four expansion backplanes, slot for power supply modules
Specifications
Short description
| Bus controller | I/O master controller |
General information
| Power consumption – 24 VDC | - |
| Power consumption – 5 VDC | 1.5 W |
| Power consumption – Total | 1.5 W |
| Electrical isolation – PLC - Expansion master | No |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | None |
Controller
| Number of I/O data points – Analog | 512 In / 512 Out |
| Number of I/O data points – Digital | 1024 In / 1024 Out |
| Number of I/O data points | Based on the base system and System 2005 expansion systems |
| Number of expansion backplanes | Max. 4 |
| Data buffering | Battery backup via System 2005 backplane module |
| Communication interface | Expansion master |
| Access methods | B&R local I/O bus expansion (secured) |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Slot | Slot in power supply unit PS465 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 3EX350.6 | PDF · 723 KB · 1.0 (06/08/2004) - EN |
