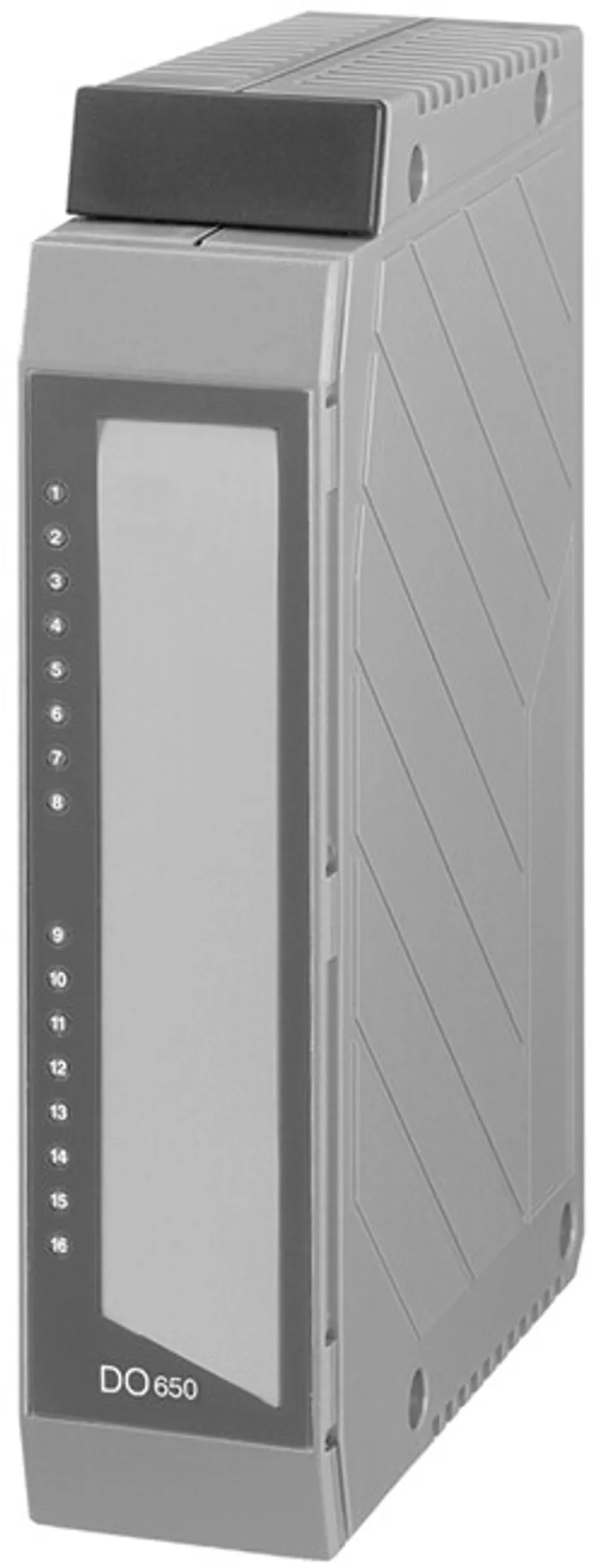

B&R 3DO650.6 – I/O module, 16 digital outputs 24 VDC / 120 VAC in 4 groups
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3DO650.6 be shipped?
3DO650.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3DO650.6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3DO650.6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3DO650.6, subject to availability and destination.
2005 digital output module, 16 relay outputs 120 VAC / 24 VDC, 2 A, 4 electrically isolated output groups, order 1x terminal block TB170 separately!
Accessories
Specifications
Short description
| I/O module | 16 digital outputs 24 VDC / 120 VAC in 4 groups |
General information
| Diagnostics – Outputs | Yes, using LED status indicator |
| Power consumption – 24 VDC | 3.3 W |
| Power consumption – 5 VDC | 0.7 W |
| Power consumption – Total | 4.0 W |
| Electrical isolation – Group - Group | Yes / Max. 250 VAC |
| Electrical isolation – Channel - Channel | No (same group) |
| Electrical isolation – Channel - PLC | Yes / Max. 144 VAC |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | I/O function per channel |
Digital outputs
| Switching capacity – Minimum | 0.1 mA / 0.1 VDC |
| Switching capacity – Maximum | 300 VA up to 90 W |
| Variant | Relay / Normally open contact |
| Nominal voltage | 24 VDC to 120 VAC |
| Rated frequency | DC / 45 to 63 Hz |
| Nominal output current | 2.0 A |
| Total nominal current | 32.0 A |
| Group rated voltage | 8.0 A |
| Switching frequency | Max. 10 Hz at nominal load |
| Sensor power supply | External |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | System 2005 single-width |
| Can be installed on – Base unit | Yes |
| Can be installed on – Expansion unit | Yes |
| Note | Order 1x terminal block TB170 separately. |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 3DO650.6 | PDF · 274 KB · 1.0 (06/08/2004) - EN |
