Bosch Rexroth R912009610
INTERFACE MODULE XI813101
- MPN
- R912009610
- Category
- XI8 System Modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R912009610?

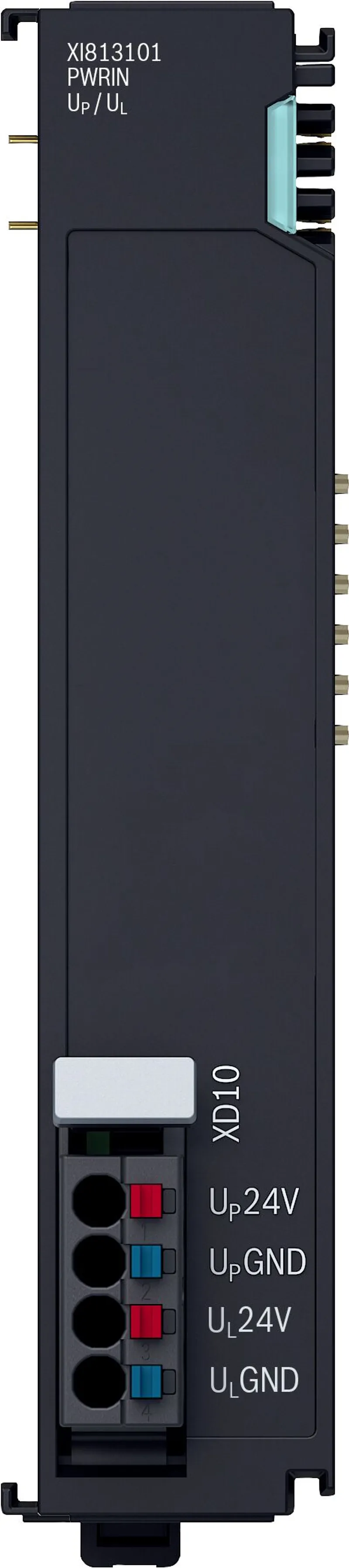

The active voltage boost module XI813101 is used to boost the peripheral circuit (UP) and logical circuit (UL) in a ctrlX I/O station. It supplies the connected I/O modules with the peripheral voltage (UP) of DC 24 V, 8 A, which is internally galvanically isolated from the peripheral voltage supply of the preceding modules and and the logical voltage (UL) of DC 24 V, 3 A. The voltages and the currents fed in are measured internally and applied to the process data. The logic voltage supply as well as the EtherCAT-based module communication are routed through the module.
Specifications
Specifications
| Connection type | Push-in |
| Width [mm] | 20 |
| Height [mm] | 105 |
| Depth [mm] | 99 |
| International protection code | IP20 |
| Protection class | III |
| Backplane-Bus | Standard-EtherCAT über LVDS |
| Bit width, input data in the process data image (including fill bits) | 10 bytes |
| Maximum power dissipation in the module [W] | 1.296 |
| Channel LEDs | Display status of Power supply |
| Post-assembly position | Vertical, on a horizontal support rail |
| Electrical isolation | 1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL) |
| Fuse protection (UP) | No internal fuse protection. The operator has to provide protection against overload by an external fuse. |
| Fuse protection (UL) | Internal with a protective fuse |
| Transient protection | Present, suppressor diodes, pulse load up to 1500 W |
| Maximum number of modules per station | 30 |
| Current requirement UL | Max. 50 mA (without I/O modules), 3 A max. (complete system with I/O modules) |
| Current requirement Up | Typ. 4 mA (without I/O modules, 8 A max. (complete system with I/O modules) |
| Nominal voltage (UL/UP) | DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage) |
| Overvoltage category | 2 |
| Voltage dips at power supply interfaces | PS1 <1 ms, evaluation criterion A |
| Overvoltage protection UL and UP | Present, fuses can trigger in case of overvoltage |
| Conductor cross-section | AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm² |
| Permissible air humidity (storage) [%] | 10-95 |
| Permissible air humidity (transport) [%] | 10-95 |
| Ambient temperature (storage and transport) [°C] | -40-70 |
| Ambient temperature during operation | 2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C |
| Maximum operating altitude [m] | 5000 |
| Contamination level | 2, no condensation |
| Weight [kg] | 0.13 |
