XI8 System Modules Parts
Compare XI8 System Modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Width [mm] | Depth [mm] | Weight [kg] | Maximum power dissipation in the module [W] |
|---|---|---|---|---|

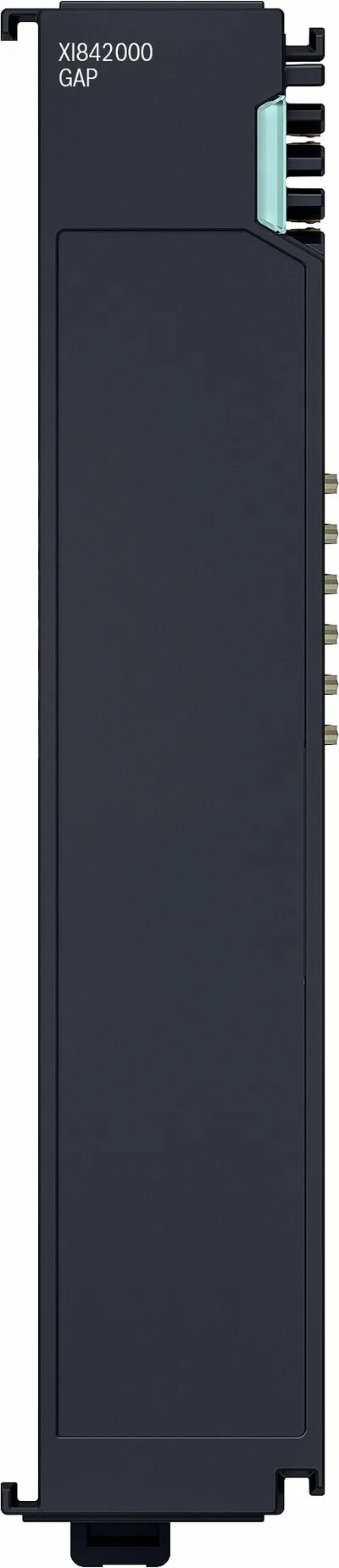

| R911406128 | 20 | 85 | 0.11 | — |

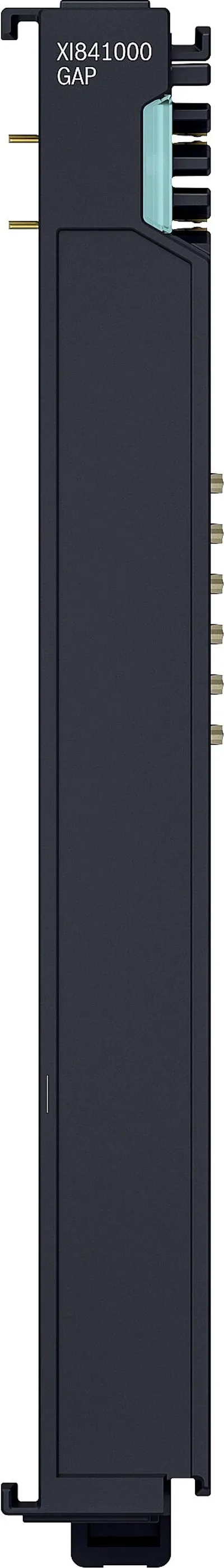

| R911406126 | 12 | 85 | 0.1 | — |

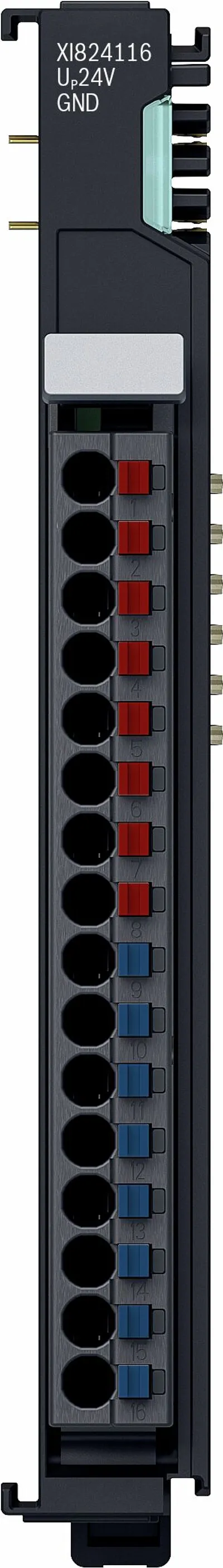

| R911406122 | 12 | 99 | 0.12 | 0.52 |

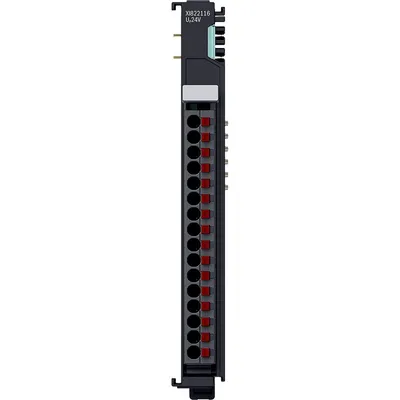

| R911406123 | 12 | 99 | 0.12 | 0.37 |
| R911406125 | 12 | 99 | 0.12 | 0.14 |

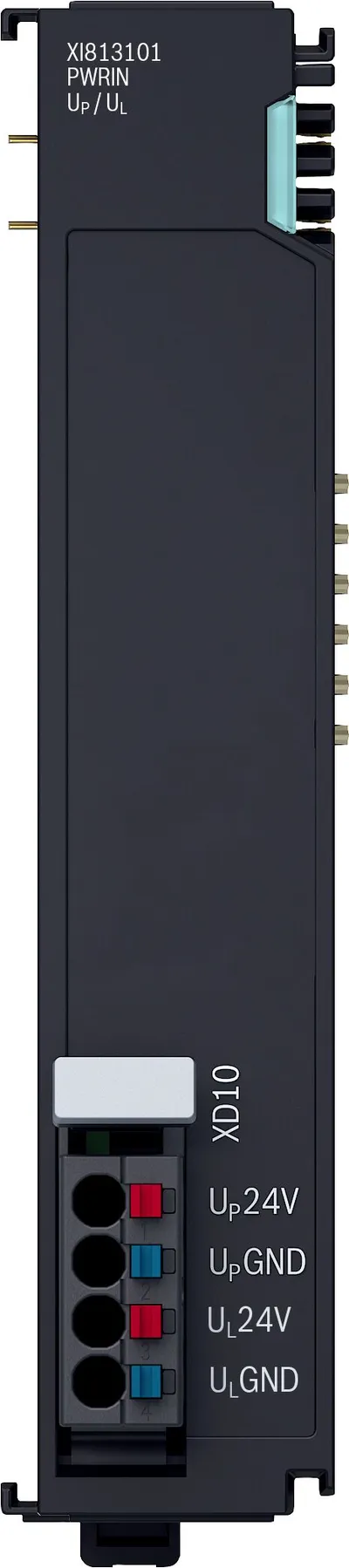

| R912009610 | 20 | 99 | 0.13 | 1.296 |
| R911406094 | 20 | 99 | 0.13 | 2.64 |

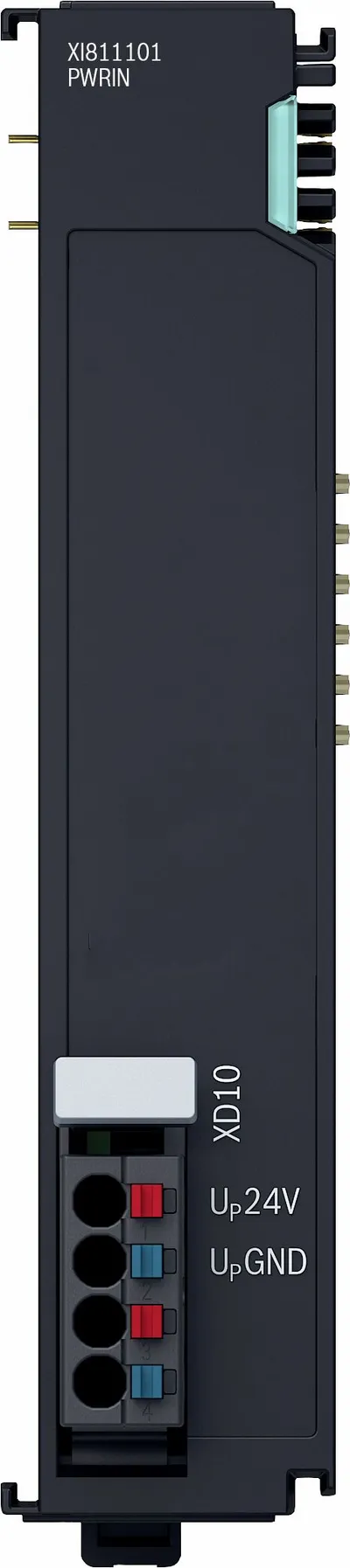

| R911406093 | 20 | 99 | 0.12 | — |
Common to all listed parts
| Connection type | Push-in |
| Height [mm] | 105 |
| International protection code | IP20 |
| Protection class | III |
| Backplane-Bus | Standard-EtherCAT über LVDS |
| Post-assembly position | Vertical, on a horizontal support rail |
| Overvoltage category | 2 |
| Permissible air humidity (storage) [%] | 10-95 |
