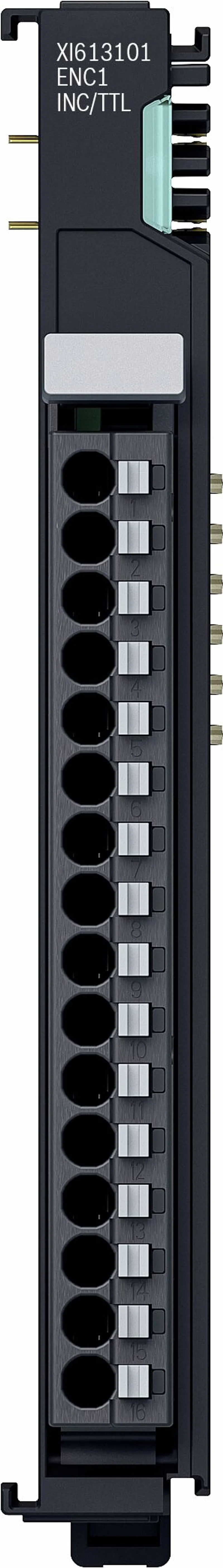

FUNCTIONAL MODULE XI613101
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | XI6 Technology Modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R912009618 be shipped?
R912009618 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R912009618 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R912009618 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R912009618, subject to availability and destination.
The XI613101 encoder module enables the connection of an incremental encoder with differential signals (RS422) in a ctrlX I/O station. Input frequencies of up to 1 MHz can be evaluated. Alternatively, it can be used as an up/down counter. The 5 V encoder supply can be provided directly via the module's connection points. The four additional digital inputs, which are designed in 2-wire technology, are used to record application-specific signals (e.g. blocking, saving, referencing). <br><br>The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.
Specifications
Specifications
| Connection type | Push-in |
| Connectivity technology | Differential RS422 |
| Number of channels | 1 |
| Width [mm] | 12 |
| Height [mm] | 105 |
| Depth [mm] | 99 |
| International protection code | IP20 |
| Protection class | III |
| Backplane-Bus | Standard-EtherCAT über LVDS |
| EMC resistance | EN 61000-6-2 and EN 61000-6-4 |
| Bit width, output data in the process data image | 2 Bytes |
| Bit width, input data in the process data image (including fill bits) | 18 bytes |
| Maximum power dissipation in the module [W] | 2.003 |
| Input filter | 3 ms |
| Fuse protection (UOUT24 V) | Auto switch-off at overload |
| Channel LEDs | Per channel |
| Post-assembly position | Vertical, on a horizontal support rail |
| Electrical isolation | 1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL) |
| Current requirement UL | 0.0397 A |
| Current requirement Up | 0.032 A + load |
| Max. current up per terminal point [A] | 1 |
| Max. net current Up module [A] | 3 |
| Input current [mA] | 3.6 |
| Signal voltage "0" [V] | -3-5 |
| Signal voltage "1" [V] | 15-30 |
| Nominal voltage (UL/UP) | DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage) |
| Overvoltage category | 2 |
| Nominal input voltage [V DC] | 24 |
| Signal type | Incremental Encoder, TTL |
| Conductor cross-section | AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm² |
| Permissible air humidity (storage) [%] | 10-95 |
| Permissible air humidity (transport) [%] | 10-95 |
| Ambient temperature (storage and transport) [°C] | -40-70 |
| Ambient temperature during operation | 2,000 m to 3,000 m: -25 °C to +40 °C; Up to 2000 m: -25°C to +45°C |
| Maximum operating altitude [m] | 3000 |
| Contamination level | 2, no condensation |
| Weight [kg] | 0.12 |
