DIGITAL OUTPUT MODULE XI221116

Name: DIGITAL OUTPUT MODULE XI221116
Brand: Bosch Rexroth
SKU: R912009223

MPN: R912009223 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	XI2 Digital Outputs
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R912009223 be shipped?

R912009223 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R912009223 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R912009223 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R912009223, subject to availability and destination.

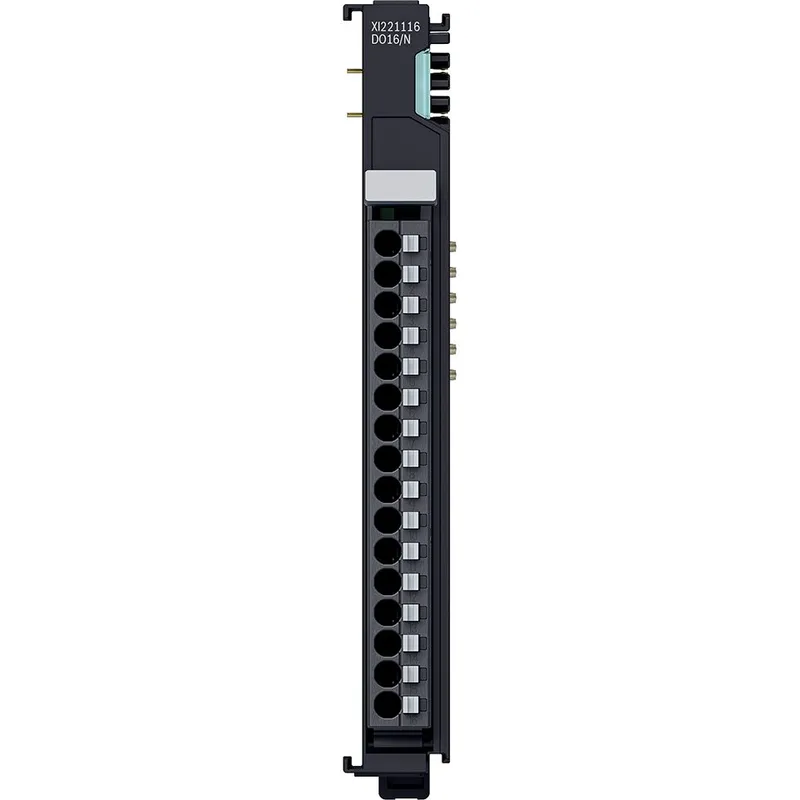

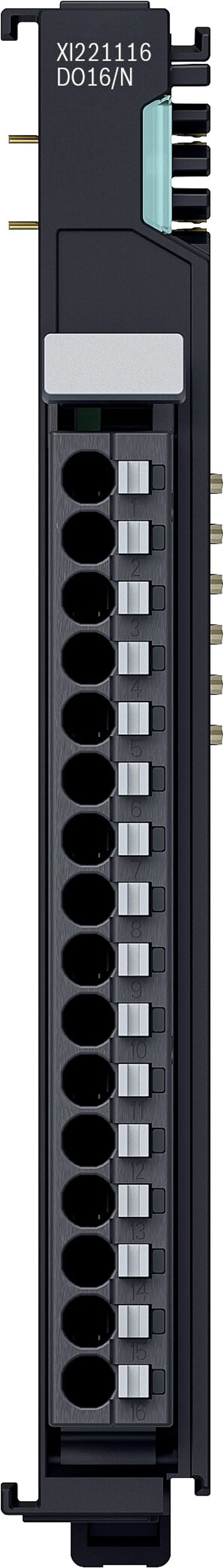

The digital output module XI221116 is used to output binary GND control signals in a ctrlX I/O station. The module has 16 channels in a 1-wire technique. The signal state is shown at the channel LED on the removable peripheral connector. The peripheral GND supplies the digital outputs. <br><br>The logic and peripheral supply as well as the Ethercat-based module communication are routed through the module.

Specifications

Connection type	Push-in
Connectivity technology	1-wire technique
Number of channels	16
Max. output current per channel [A]	0.5
Width [mm]	12
Height [mm]	105
Depth [mm]	99
International protection code	IP20
Protection class	III
Backplane-Bus	Standard-EtherCAT über LVDS
EMC resistance	EN 61000-6-2 and EN 61000-6-4
Bit width, output data in the process data image	2 Bytes
Inductive switch-off energy	Max. 150 mJ
Nominal load [Ohm]	48
Channel LEDs	Per channel
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL)
Feedback voltage resistance	Not resistant to feedback, external measures required
Max. current up per terminal point [A]	4
Max. net current Up module [A]	0.5
Net current module outputs [A]	4
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Nominal output voltage [V DC]	24
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Overload protection	Granular switch-off with automatic restart
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Contamination level	2, no condensation
Weight [kg]	0.12
