CAM ROLLER RAIL 32-0

Name: CAM ROLLER RAIL 32-0
Brand: Bosch Rexroth
SKU: R192103231

MPN: R192103231 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cam roller guide rails
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R192103231 be shipped?

R192103231 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R192103231 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R192103231 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R192103231, subject to availability and destination.

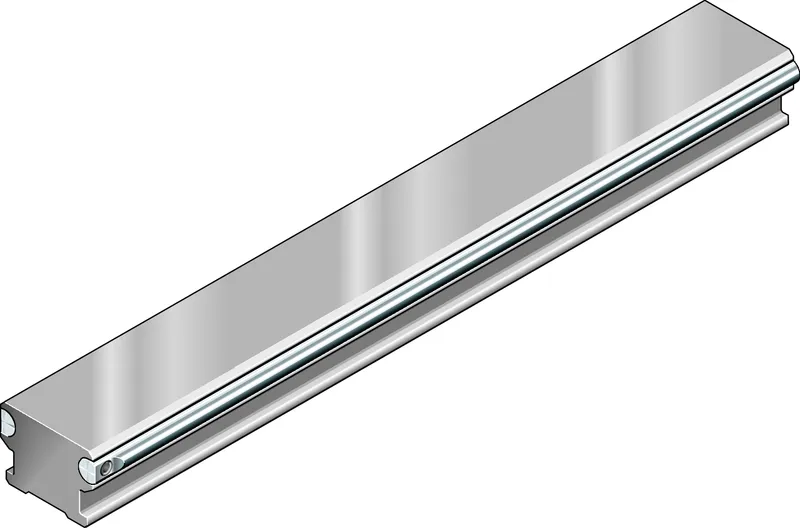

The cam roller guide rail is characterized by the following product features: Size 32 Format SNS: Width = slimline, length = normal, height = standard Guide rails made of aluminum with secured shafts made of corrosion-resistant steel Fastener 00: Without Cover 00: Without cover No bores Number of partial sections: one-piece Rail in standard version For mounting from above Optional mounting hole plugs With secured shafts made of corrosion-resistant steel according to DIN EN ISO 683-17 / EN 10088 Rail body made of aluminum (anodized) Secured guide tracks made of corrosion-resistant precision steel shafts

Specifications

Version	Cam roller guide
Nominal size [mm]	32
Material (profiled rail systems)	Aluminum profile and corrosion-resistant steel shafts
Guide rail mounting	For bolting from above
Note: maximum length Lmax	Guide tracks up to 3500 mm are made of one-piece precision steel shafts.
Operating temperature (min. … max.)	-20 °C ... +80 °C
Mass m (kg/m) [kg/m]	1.6
Weight [kg]	0
Recommended rail length (formula)	L = n• T‒ 4 mm
Maximum operating temperature [°C]	+80
Minimum operating temperature [°C]	-20
Pitch T guide rail [mm]	125

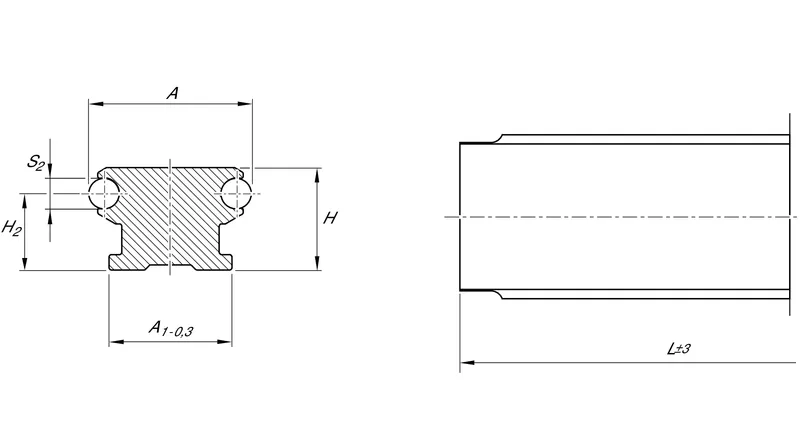

Dimension A (profiled rail systems) [mm]	32
Dimension A1 (profiled rail systems) [mm]	24
Dimension D [mm]	11
Dimension 2nd grade area moment, y-axis ly [mm⁴]	14551
Dimension 2nd grade area moment, z-axis lz [mm⁴]	19272
Dimension H [mm]	20.0
Dimension H1 (profiled rail systems) [mm]	9.5
Dimension H2 (profiled rail systems) [mm]	15
Dimension L [mm]	3500
Dimension S1 (profiled rail systems) [mm]	6.5
Dimension S2 [mm]	6
Dimension T [mm]	125
Dimension T1 min [mm]	13
Dimension T1 s (profiled rail systems) [mm]	60.5
Dimension section modulus, y-axis Wy [mm³]	1399
Dimension section modulus, z-axis Wz [mm³]	1357
Footnote Dimension L	Up to 3500 mm, the guideways are made from one-piece precision steel shafts
