XT1N 160 TMD 125-1250 3p F F
MPN: 1SDA067417R1 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Functional Modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.1 kg |
Shipping & availability
When can 1SDA067417R1 be shipped?
1SDA067417R1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SDA067417R1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SDA067417R1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SDA067417R1, subject to availability and destination.

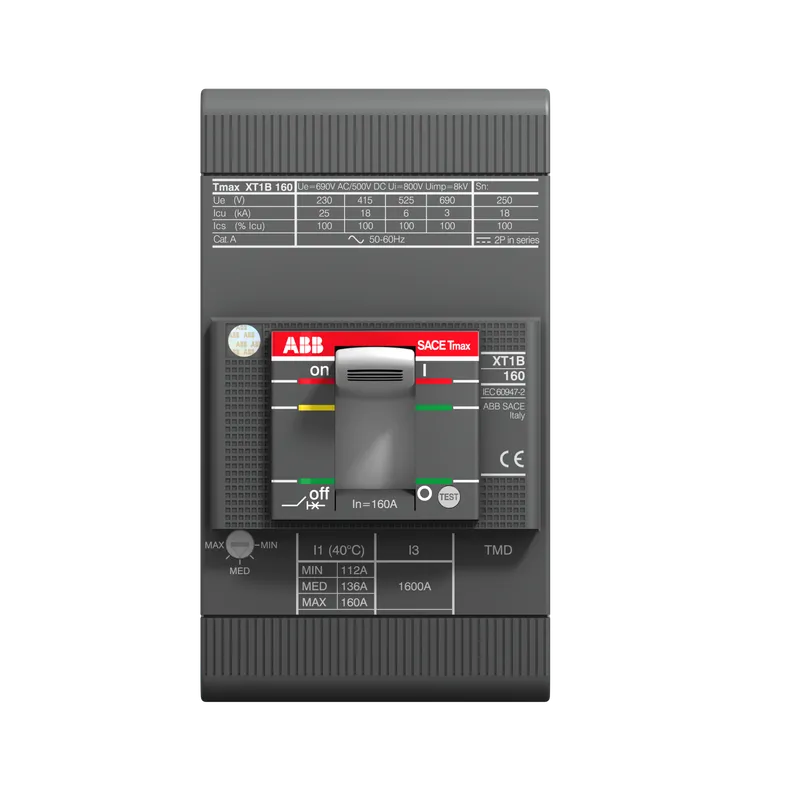

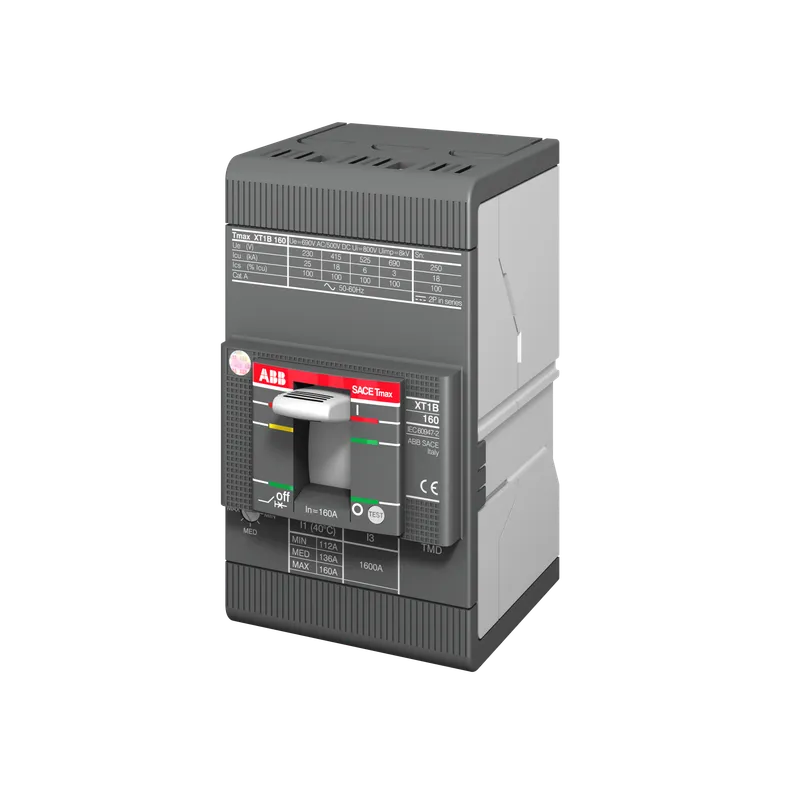

C.BREAKER TMAX XT1N 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 125-1250 A
Specifications
ABB EcoSolutions
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2347 |
| Environmental Product Declaration - EPD | 9AKK108468A1890, 9AKK108468A7793 |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.9 % |
Material Compliance
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | a017b995-7677-4032-97d0-70955e42da44 Italy |
| Simplified SCIP | 1674f522-863e-4b10-9b22-1392e649868f Germany, 1016c0d9-6b2f-4541-9731-ae5e514b612c Poland, edbc41b2-977e-4e62-bf57-c577ff37b752 Norway, 8fc64a28-bf02-4bab-816f-7f1ea8cfd665 Finland, 43a45886-4e27-4a3e-ac1b-8b1e0104ca73 Netherlands, 4fcbf66a-4b6b-46af-ac6f-59cb9aa340de Germany, 9e0ae2d2-e0b9-4228-be20-f5c865206c7c Denmark, 20885196-3e38-4106-9f6c-8d28627c13b2 Germany, 343aaf43-b98c-4a34-9ed6-a9b69238da5b Germany, 2c159a70-312e-4644-b3d1-94e378e10a86 Germany, 809033fa-336d-4222-bc6d-effdad3dc5cf France, 2aeb223c-861a-44a1-a400-158a4cdeb813 Croatia, 22571705-23bb-4a04-b01e-c24dd2ed0c42 Czech Republic, b2a78f6a-a79e-40fa-a74c-1288ca44ffc3 Poland, 1237e344-5721-4e92-ba26-495240e92ab2 Netherlands, afa7cc49-fb95-4dcf-b06f-b5ca40347ffd Netherlands, a80945a7-a1d7-4591-a902-0d7f35f16fdf Estonia, e85dc33f-4046-4d61-a81c-b669d5302bcc Greece, 996e3faf-cb89-42ac-936a-470cbacce407 Portugal, 343aaf43-b98c-4a34-9ed6-a9b69238da5b Germany, 2c159a70-312e-4644-b3d1-94e378e10a86 Germany, 809033fa-336d-4222-bc6d-effdad3dc5cf France, 0444e024-95d5-44cc-bb85-a31adfd5c119 Netherlands, ee5df21b-fa7d-489e-a92d-46638bb22341 Spain, 446e2120-ac60-44e4-aae9-f4f832038592 Netherlands, de89bfae-43b5-4256-924a-7387070e4c4f Bulgaria, 8c45bbc7-0bae-4794-b9f3-2952b5b9fe76 Sweden, 446e2120-ac60-44e4-aae9-f4f832038592 Netherlands, b24cbc91-fe23-4da5-8766-52ace4f2b836 Poland, dbfc548b-8fe0-4a7b-9c71-47814e8b77cf France, 3155e223-d2f5-457b-ad5a-bf70d2814bc8 Sweden, 0444e024-95d5-44cc-bb85-a31adfd5c119 Netherlands, ee5df21b-fa7d-489e-a92d-46638bb22341 Spain, 1016c0d9-6b2f-4541-9731-ae5e514b612c Poland, edbc41b2-977e-4e62-bf57-c577ff37b752 Norway, 8c45bbc7-0bae-4794-b9f3-2952b5b9fe76 Sweden, b24cbc91-fe23-4da5-8766-52ace4f2b836 Poland, dbfc548b-8fe0-4a7b-9c71-47814e8b77cf France, 3155e223-d2f5-457b-ad5a-bf70d2814bc8 Sweden, 8fc64a28-bf02-4bab-816f-7f1ea8cfd665 Finland, 43a45886-4e27-4a3e-ac1b-8b1e0104ca73 Netherlands, 4fcbf66a-4b6b-46af-ac6f-59cb9aa340de Germany, 9e0ae2d2-e0b9-4228-be20-f5c865206c7c Denmark, 20885196-3e38-4106-9f6c-8d28627c13b2 Germany, 2aeb223c-861a-44a1-a400-158a4cdeb813 Croatia, 22571705-23bb-4a04-b01e-c24dd2ed0c42 Czech Republic, b2a78f6a-a79e-40fa-a74c-1288ca44ffc3 Poland, 1237e344-5721-4e92-ba26-495240e92ab2 Netherlands, afa7cc49-fb95-4dcf-b06f-b5ca40347ffd Netherlands, a80945a7-a1d7-4591-a902-0d7f35f16fdf Estonia, e85dc33f-4046-4d61-a81c-b669d5302bcc Greece, 996e3faf-cb89-42ac-936a-470cbacce407 Portugal, de89bfae-43b5-4256-924a-7387070e4c4f Bulgaria |
Environmental
| Environmental Information | 9AKK108467A6707 |
Ordering
| E-Number (Finland) | 3640520 |
| E-Number (Norway) | 4379209 |
| E-Number (Sweden) | 3182428 |
| EAN | 8015644013110 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Dimensions
| Product Net Width | 76.2 mm mm |
| Product Net Height | 130 mm mm |
| Product Net Depth / Length | 70 mm mm |
| Product Net Weight | 1.1 kg kg |
Container Information
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 128 mm mm |
| Package Level 1 Height | 135 mm mm |
| Package Level 1 Depth / Length | 143 mm mm |
| Package Level 1 Gross Weight | 1.141 kg kg |
| Package Level 1 EAN | 8015644013110 |
Additional Information
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0008 |
Technical
| Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² mm |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour, 8000 cycle |
| Mechanical Durability | 240 cycles per hour, 25000 cycle |
| Number of Poles | 3P |
| Opening Time | CB with SOR 30 ms, CB with UVR 30 ms |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 10.7 W W |
| Rated Current (In) | 125 A A |
| Rated Frequency (f) | 50 / 60 Hz Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1250 A A |
| Rated Insulation Voltage (Ui) | 800 V V |
| Rated Operational Voltage | 690 V AC, 500 V DC V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA, (230 V AC) 50 kA, (240 V AC) 50 kA, (380 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 18 kA, (500 V AC) 15 kA, (525 V AC) 11 kA, (690 V AC) 5 kA, (250 V DC) 2 Poles in Series 36 kA, (500 V DC) 3 Poles in Series 36 kA V |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA, (230 V AC) 65 kA, (240 V AC) 65 kA, (380 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 36 kA, (500 V AC) 30 kA, (525 V AC) 22 kA, (690 V AC) 6 kA, (250 V DC) 2 Poles in Series 36 kA, (500 V DC) 3 Poles in Series 36 kA V |
| Rated Uninterrupted Current (Iu) | 160 A A |
| Rated Voltage (Ur) | 690 V V |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 87.5...125 A A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT1 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m m |
Certificates and Declarations
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206, 1SDC210099D0206 |
| Declaration of Conformity - CE | 9AKK106713A5532 |
| GL Certificate | 1SDL000163R0103 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000719R0100 |
| Mechanical Drawings | 1SDH000719R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000719R0001 |
External Classifications and Standards
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
