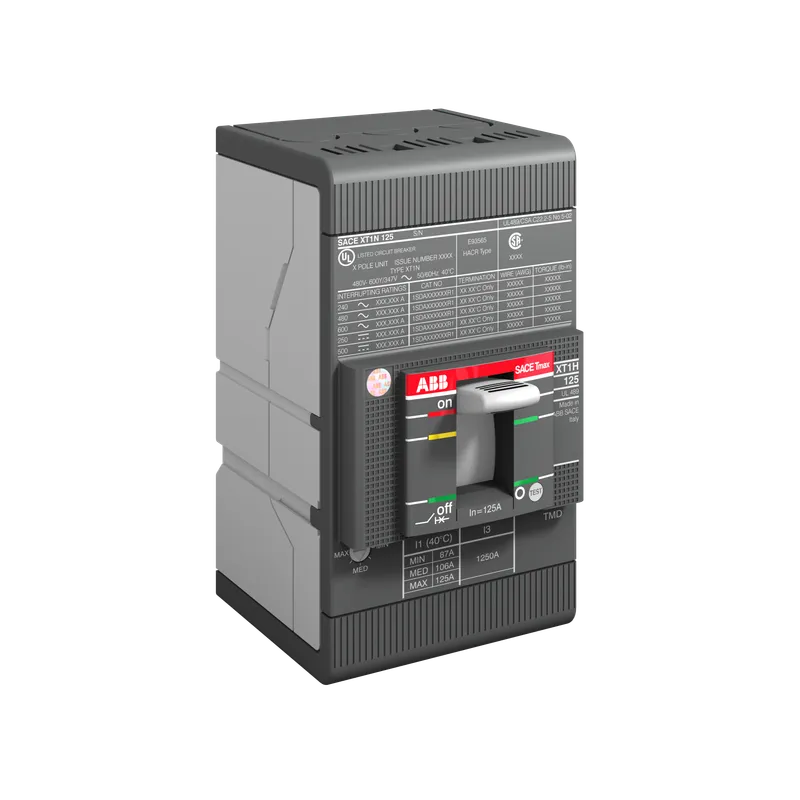

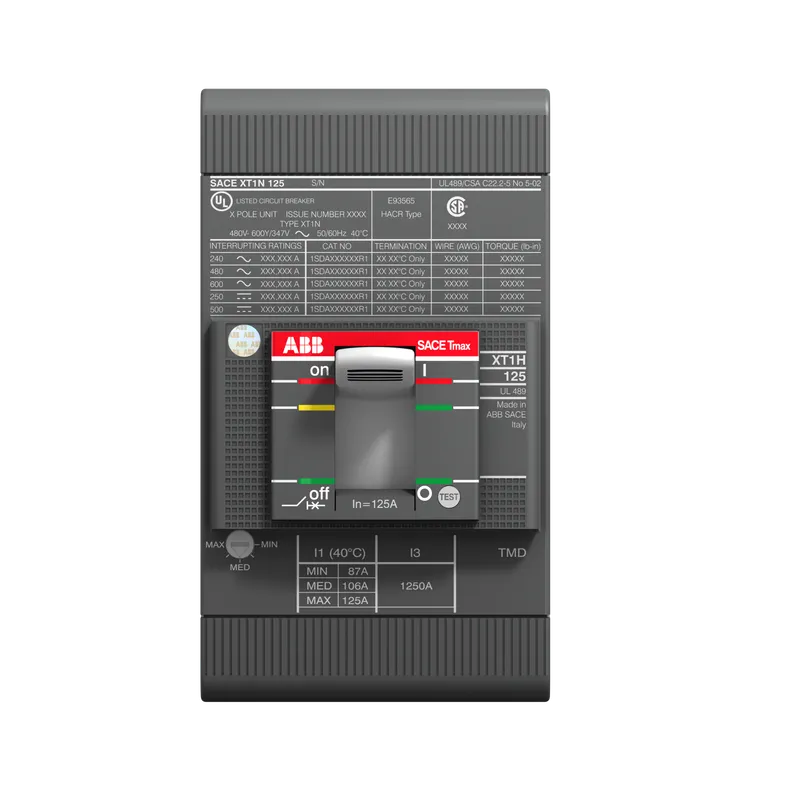

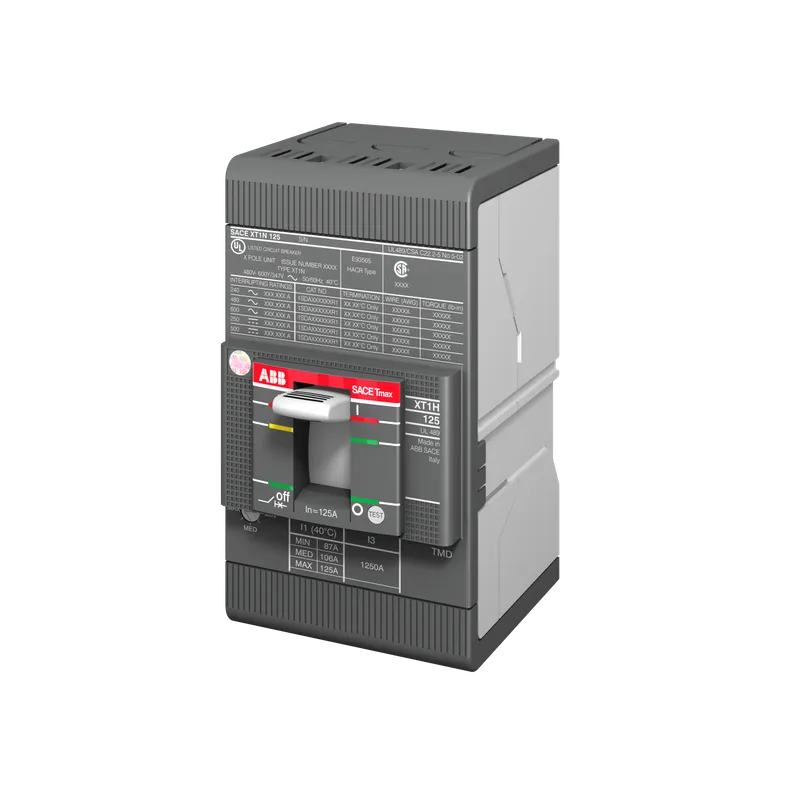

XT1H 125 TMF 100-1000 3p F F UL/CSA
MPN: 1SDA074706R1 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | IRC5 Single |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.1 kg |
Shipping & availability
When can 1SDA074706R1 be shipped?
1SDA074706R1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SDA074706R1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SDA074706R1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SDA074706R1, subject to availability and destination.
C.BREAKER TMAX XT1H 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 100-1000 A
Specifications
ABB EcoSolutions
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2347 |
| Environmental Product Declaration - EPD | 9AKK108468A1890 |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.9 % |
Material Compliance
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 5b7a7380-c053-433a-9f61-08fa87722d7b Italy |
| Simplified SCIP | e0586616-1069-4194-b884-80e044d27193 Germany, 37c6df43-5e1b-4817-b794-339ac18e23a6 Croatia, 37f6e4cc-48cd-4fea-a24f-03cac81d35c3 Czech Republic, fc0cee72-60eb-4d8e-8a8d-eaebe44aab19 Denmark, 17367a5e-3f4d-49e3-b5e5-9c543ad6bf94 Sweden, eb2f426b-7b73-4cea-881a-d7dd0ad79c2d Germany, c23ff3ce-9400-4e4e-927b-ad22450fb521 France, ebeae46e-76b7-4513-92e4-f800040c451e Germany, 9261ffca-86bc-405b-91f4-319fd846ddc6 Hungary, 1fa6f5fc-7ba3-4dda-a01d-f6adab7893b2 Spain, 075b1678-7e71-48cd-9824-fc260f2f152e Belgium, 3bd5d061-e310-4064-b60c-6b3bd7f94885 France, b980ed83-55d9-4544-990c-daa669a4b982 Poland, 2562a00b-094b-4ff0-8520-de14820294fd Germany, 78898227-54dd-4a64-bcd4-e3fc834099f2 Germany, 064d5381-d941-4413-aca7-e7b73cd64aeb Portugal, 949f3ba9-8f37-4702-a1f6-180ea8467b98 Poland, 2e4d5011-a2c7-4793-9bea-a292444c8bb4 Netherlands, f6087d44-cd7a-47ec-94a7-5737a8cb8e60 Sweden, 0f434782-16d3-4e4a-b24b-e9cb81c9f4da Norway, 6fe277ca-3bf6-4ed1-90d7-8bbfd05cf69a Bulgaria, b7c3cec4-ee79-4e84-8c3e-26c94501e45e Poland, d2503023-b537-4a63-84f4-50a3fed6dbdb Finland, 42d1e26f-e329-4a45-8fd9-3cc95ce7a224 Hungary, c8c834db-a5d2-4cbe-89a1-9b6710822da8 Greece, 256ff5cf-d3b5-4e0b-9f9f-88f7afc88917 Estonia, 26b02900-a58a-45ed-a2ee-0b51d4aac893 Belgium |
Environmental
| Environmental Information | 9AKK108467A6707 |
Ordering
| Order Code US and Canada | XT1HU3100AFF000XXX |
| EAN | 8015644786830 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Dimensions
| Product Net Width | 76.2 mm mm |
| Product Net Height | 130 mm mm |
| Product Net Depth / Length | 70 mm mm |
| Product Net Weight | 1.1 kg kg |
Container Information
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 128 mm mm |
| Package Level 1 Height | 135 mm mm |
| Package Level 1 Depth / Length | 143 mm mm |
| Package Level 1 Gross Weight | 1.1 kg kg |
| Package Level 1 EAN | 8015644786830 |
Additional Information
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable for Product Class | SACE Tmax XT |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0008 |
Technical
| Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² mm |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour, 8000 cycle |
| Mechanical Durability | 240 cycles per hour, 25000 cycle |
| Number of Poles | 3P |
| Opening Time | CB with SOR 30 ms, CB with UVR 30 ms |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 7 W W |
| Rated Current (In) | 100 A A |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1000 A A |
| Rated Operational Voltage | 600Y/347 V AC, 500 V DC V |
| Rated Uninterrupted Current (Iu) | 125 A A |
| Rated Voltage (Ur) | 600Y/347 V V |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMF |
| Release Type | TM |
| Setting Range | 100 A A |
| Short-Circuit Performance Level | H |
| Standards | UL489 |
| Sub-type | XT1 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m m |
Technical UL/CSA
| Interrupting Rating acc. to UL489 | (240 V AC) 100 kA, (480 V AC) 65 kA, (600Y / 347 V AC) 25 kA, (250 V DC) 2 Poles in Series 50 kA, (500 V DC) 4 Poles in Series Kind 50 kA V |
Certificates and Declarations
| ATEX Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | 9AKK10103A3905 |
| Data Sheet, Technical Information | 1SDC210200D0206, 1SDC210199D0206 |
| Declaration of Conformity - CE | 9AKK106713A5532 |
| UL Certificate | 1SDL000163R0111 |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000719R0100 |
| Mechanical Drawings | 1SDH000719R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000719R0003 |
External Classifications and Standards
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4927 >> Molded case circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121616 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| eClass | V11.1 : 27370409 |
