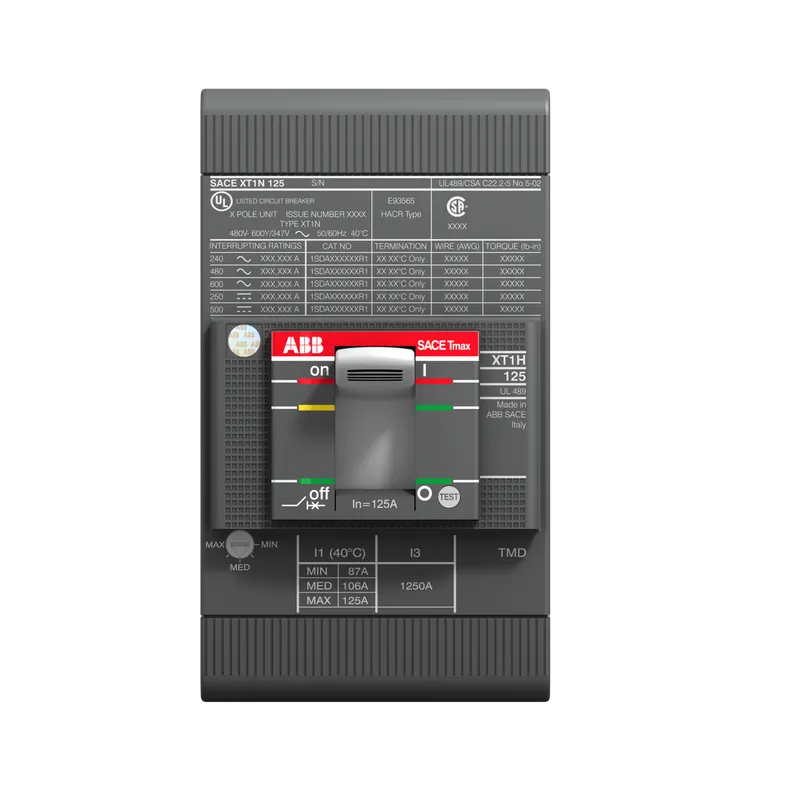

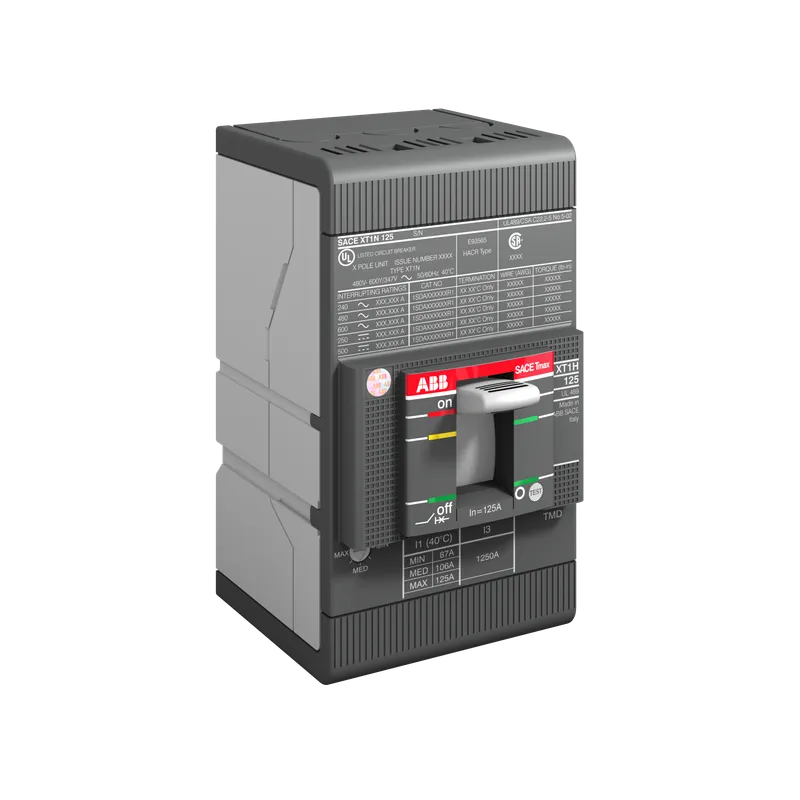

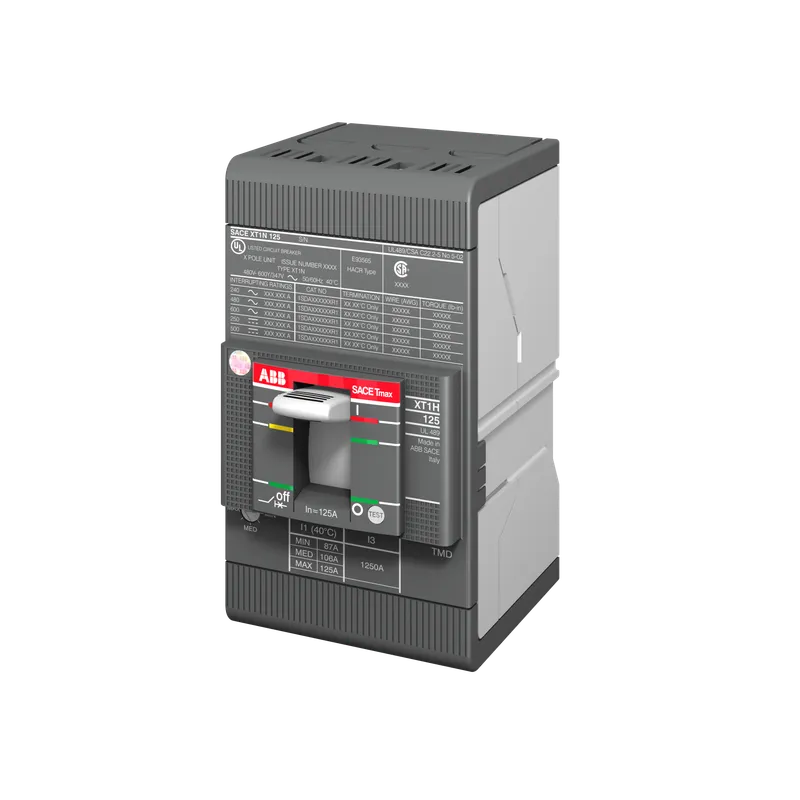

XT1H 125 TMF 125-1250 3p F F UL/CSA
Specifications
ABB EcoSolutions
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2347 |
| Environmental Product Declaration - EPD | 9AKK108468A1890 |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.9 % |
Material Compliance
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Environmental
| Environmental Information | 9AKK108467A6707 |
Ordering
| Order Code US and Canada | XT1HU3125AFF000XXX |
| EAN | 8015644786854 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Dimensions
| Product Net Width | 76.2 mm mm |
| Product Net Height | 130 mm mm |
| Product Net Depth / Length | 70 mm mm |
| Product Net Weight | 1.1 kg kg |
Container Information
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 128 mm mm |
| Package Level 1 Height | 135 mm mm |
| Package Level 1 Depth / Length | 143 mm mm |
| Package Level 1 Gross Weight | 1.19 kg kg |
| Package Level 1 EAN | 8015644786854 |
Additional Information
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable for Product Class | SACE Tmax XT |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0008 |
Technical
| Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² mm |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour, 8000 cycle |
| Mechanical Durability | 240 cycles per hour, 25000 cycle |
| Number of Poles | 3P |
| Opening Time | CB with SOR 30 ms, CB with UVR 30 ms |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 10.7 W W |
| Rated Current (In) | 125 A A |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1250 A A |
| Rated Operational Voltage | 600Y/347 V AC, 500 V DC V |
| Rated Uninterrupted Current (Iu) | 125 A A |
| Rated Voltage (Ur) | 600Y/347 V V |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMF |
| Release Type | TM |
| Setting Range | 125 A A |
| Short-Circuit Performance Level | H |
| Standards | UL489 |
| Sub-type | XT1 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m m |
Technical UL/CSA
| Interrupting Rating acc. to UL489 | (240 V AC) 100 kA, (480 V AC) 65 kA, (600Y / 347 V AC) 25 kA, (250 V DC) 2 Poles in Series 50 kA, (500 V DC) 4 Poles in Series Kind 50 kA V |
Certificates and Declarations
| ATEX Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | 9AKK10103A3905 |
| Data Sheet, Technical Information | 2CDC210017C0101, 1SDC210200D0206, 1SDC210199D0206 |
| Declaration of Conformity - CE | 9AKK106713A5532 |
| UL Certificate | 1SDL000163R0111 |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000719R0100 |
| Mechanical Drawings | 1SDH000719R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000719R0003 |
External Classifications and Standards
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4927 >> Molded case circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121616 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| eClass | V11.1 : 27370409 |
