XT1N 160 TMD 100-1000 3p F F
MPN: 1SDA067416R1 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | IRC5 Single |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.1 kg |
Shipping & availability
When can 1SDA067416R1 be shipped?
1SDA067416R1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SDA067416R1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SDA067416R1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SDA067416R1, subject to availability and destination.

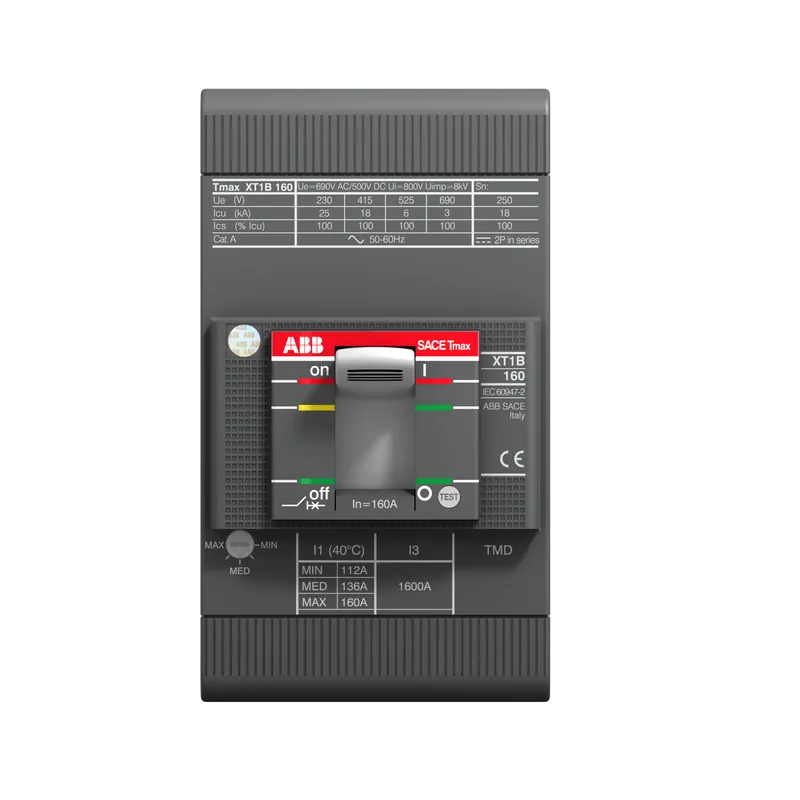

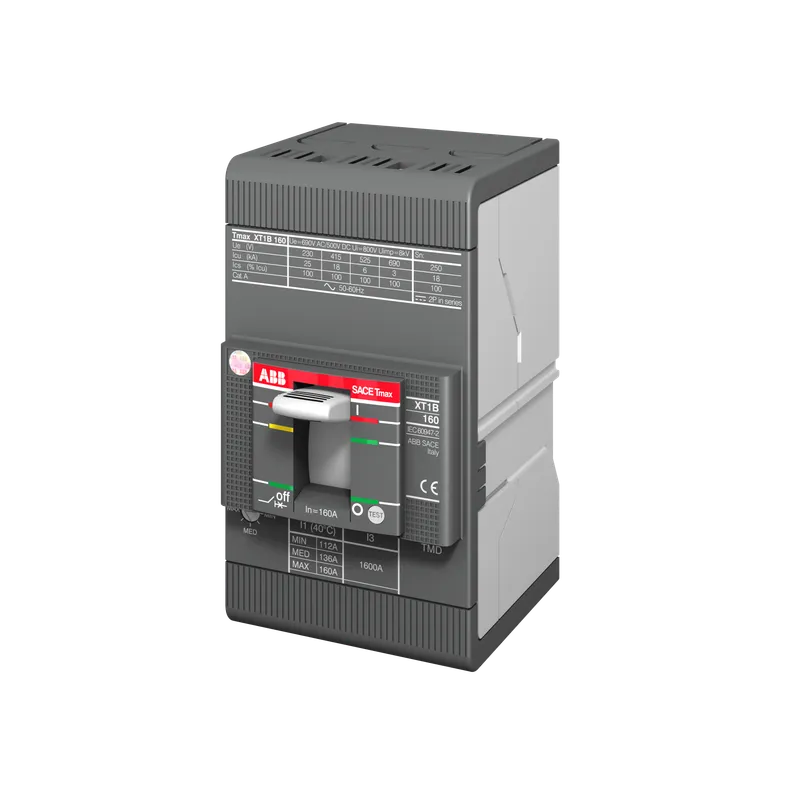

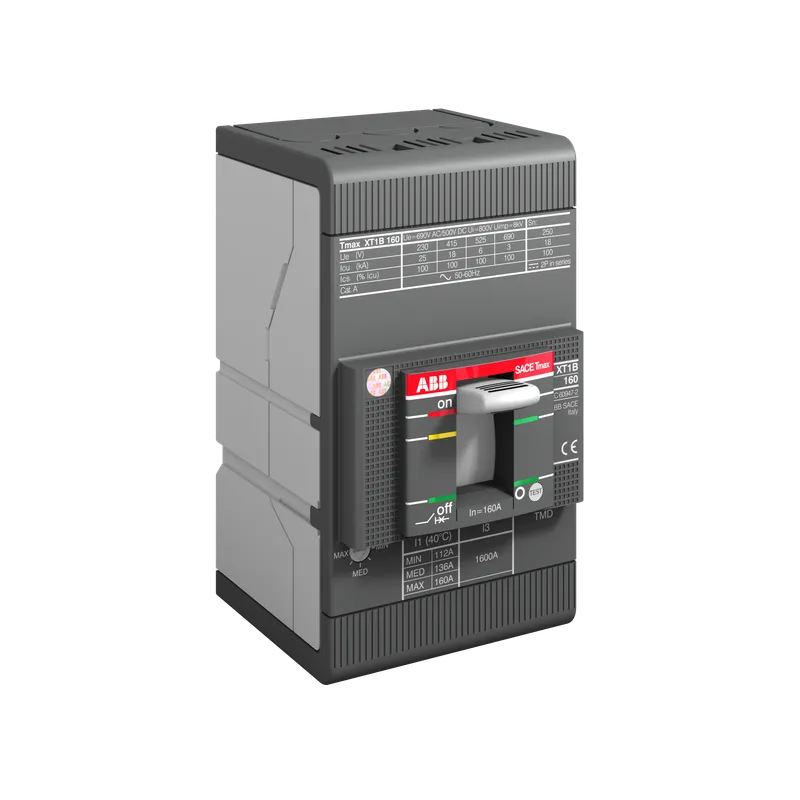

C.BREAKER TMAX XT1N 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 100-1000 A
Specifications
ABB EcoSolutions
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2347 |
| Environmental Product Declaration - EPD | 9AKK108468A1890, 9AKK108468A7793 |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.9 % |
Material Compliance
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 9dc23701-0389-4d5d-9536-ba4ecc672f9f Italy |
| Simplified SCIP | dd3b120b-cdd6-4746-84e1-3b6ba8deac82 Germany, 8ebd8f62-f8d3-47fd-bae4-333e0a218076 Greece, db9cca29-2669-426f-bf76-0e2f3f91228f Portugal, 01cd358c-7878-4350-a8cb-ad98bcdf704c Bulgaria, b0a036f2-b8f0-4f7f-aefc-8d094fa47899 Sweden, 996ed7e4-edc7-4d81-acaa-2cb3aad20176 Poland, 8fd3fa87-f754-4249-8c2f-b59e41939151 France, c53d77de-041e-4093-a986-0c6cc61f57c5 Sweden, 84ac0468-5c88-4c5d-8651-f235b69841f9 Norway, fbb53485-dd85-4069-8b43-658e7c5756b5 Finland, d200e345-117c-45cc-aa41-8ed4a9afed60 Netherlands, 1a85d563-57df-4b20-b426-89ccb3c219e0 Germany, e9fc3286-418a-43e6-a8da-5755bebb9679 Denmark, b375cf2b-78f3-4e1e-ae01-a1a61a24b8a8 Germany, d6dca289-557a-48dd-b4aa-fd4b82c36b75 Croatia, 83b9a438-3162-4bc0-be90-1012a3e4b3fc Poland, 4f0681cb-c9f4-4a2f-abaf-3d07ac967890 Germany, 3b489665-c6a7-4f01-ac7f-d84483cd1553 France, e6c6fa22-a8fe-4514-a81d-fcf5be2a7031 Netherlands, c4a7c5cf-16cb-45a7-8b0f-07ab801af36a Spain, 83b9a438-3162-4bc0-be90-1012a3e4b3fc Poland, 84ac0468-5c88-4c5d-8651-f235b69841f9 Norway, fbb53485-dd85-4069-8b43-658e7c5756b5 Finland, b0a036f2-b8f0-4f7f-aefc-8d094fa47899 Sweden, 2bcd0110-606e-4b4a-96e7-796264c5d0b9 Netherlands, 996ed7e4-edc7-4d81-acaa-2cb3aad20176 Poland, 8fd3fa87-f754-4249-8c2f-b59e41939151 France, c53d77de-041e-4093-a986-0c6cc61f57c5 Sweden, 8b19cf35-ed11-4fe7-8969-08b832056cec Germany, 3acf60b8-4063-465a-b3fd-a4c165e3f530 Czech Republic, 5dc72b3c-ae87-4b2b-b761-495b6eb5d7eb Poland, cb2acb5b-5523-4886-9a78-19a9c1e14bee Netherlands, 1216d8d6-e907-4c14-bafd-557686032dbe Netherlands, 87f2c02c-07fc-4c8f-9140-875e6fa9b620 Estonia, 8ebd8f62-f8d3-47fd-bae4-333e0a218076 Greece, db9cca29-2669-426f-bf76-0e2f3f91228f Portugal, 8b19cf35-ed11-4fe7-8969-08b832056cec Germany, 4f0681cb-c9f4-4a2f-abaf-3d07ac967890 Germany, 3b489665-c6a7-4f01-ac7f-d84483cd1553 France, e6c6fa22-a8fe-4514-a81d-fcf5be2a7031 Netherlands, c4a7c5cf-16cb-45a7-8b0f-07ab801af36a Spain, 2bcd0110-606e-4b4a-96e7-796264c5d0b9 Netherlands, 01cd358c-7878-4350-a8cb-ad98bcdf704c Bulgaria, d200e345-117c-45cc-aa41-8ed4a9afed60 Netherlands, 1a85d563-57df-4b20-b426-89ccb3c219e0 Germany, e9fc3286-418a-43e6-a8da-5755bebb9679 Denmark, b375cf2b-78f3-4e1e-ae01-a1a61a24b8a8 Germany, d6dca289-557a-48dd-b4aa-fd4b82c36b75 Croatia, 3acf60b8-4063-465a-b3fd-a4c165e3f530 Czech Republic, 5dc72b3c-ae87-4b2b-b761-495b6eb5d7eb Poland, cb2acb5b-5523-4886-9a78-19a9c1e14bee Netherlands, 1216d8d6-e907-4c14-bafd-557686032dbe Netherlands, 87f2c02c-07fc-4c8f-9140-875e6fa9b620 Estonia |
Environmental
| Environmental Information | 9AKK108467A6707 |
Ordering
| E-Number (Finland) | 3640527 |
| E-Number (Norway) | 4379208 |
| E-Number (Sweden) | 3182429 |
| EAN | 8015644013103 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Dimensions
| Product Net Width | 76.2 mm mm |
| Product Net Height | 130 mm mm |
| Product Net Depth / Length | 70 mm mm |
| Product Net Weight | 1.1 kg kg |
Container Information
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 128 mm mm |
| Package Level 1 Height | 135 mm mm |
| Package Level 1 Depth / Length | 143 mm mm |
| Package Level 1 Gross Weight | 1.133 kg kg |
| Package Level 1 EAN | 8015644013103 |
Additional Information
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0008 |
Technical
| Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² mm |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour, 8000 cycle |
| Mechanical Durability | 240 cycles per hour, 25000 cycle |
| Number of Poles | 3P |
| Opening Time | CB with SOR 30 ms, CB with UVR 30 ms |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 7 W W |
| Rated Current (In) | 100 A A |
| Rated Frequency (f) | 50 / 60 Hz Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1000 A A |
| Rated Insulation Voltage (Ui) | 800 V V |
| Rated Operational Voltage | 690 V AC, 500 V DC V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA, (230 V AC) 50 kA, (240 V AC) 50 kA, (380 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 18 kA, (500 V AC) 15 kA, (525 V AC) 11 kA, (690 V AC) 5 kA, (250 V DC) 2 Poles in Series 36 kA, (500 V DC) 3 Poles in Series 36 kA V |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA, (230 V AC) 65 kA, (240 V AC) 65 kA, (380 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 36 kA, (500 V AC) 30 kA, (525 V AC) 22 kA, (690 V AC) 6 kA, (250 V DC) 2 Poles in Series 36 kA, (500 V DC) 3 Poles in Series 36 kA V |
| Rated Uninterrupted Current (Iu) | 160 A A |
| Rated Voltage (Ur) | 690 V V |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 70...100 A A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT1 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m m |
Certificates and Declarations
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 2CDC210017C0101, 1SDC210100D0206, 1SXF210033C2001, 1SDC210099D0206, 1SXF210034C2001 |
| Declaration of Conformity - CE | 9AKK106713A5532 |
| GL Certificate | 1SDL000163R0103 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000719R0100 |
| Mechanical Drawings | 1SDH000719R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000719R0001 |
External Classifications and Standards
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| eClass | V11.1 : 27370409 |
