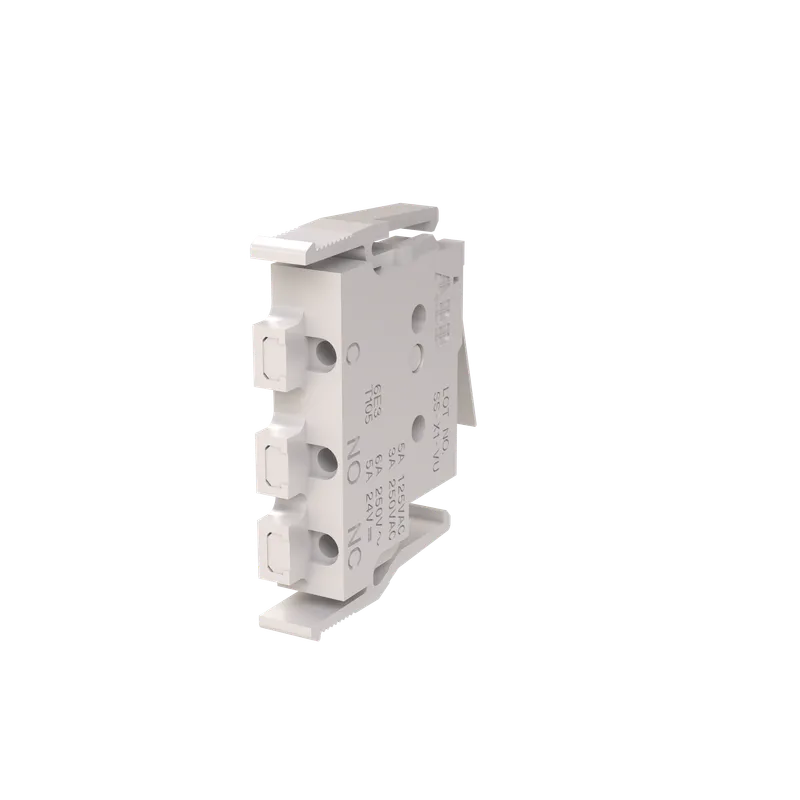

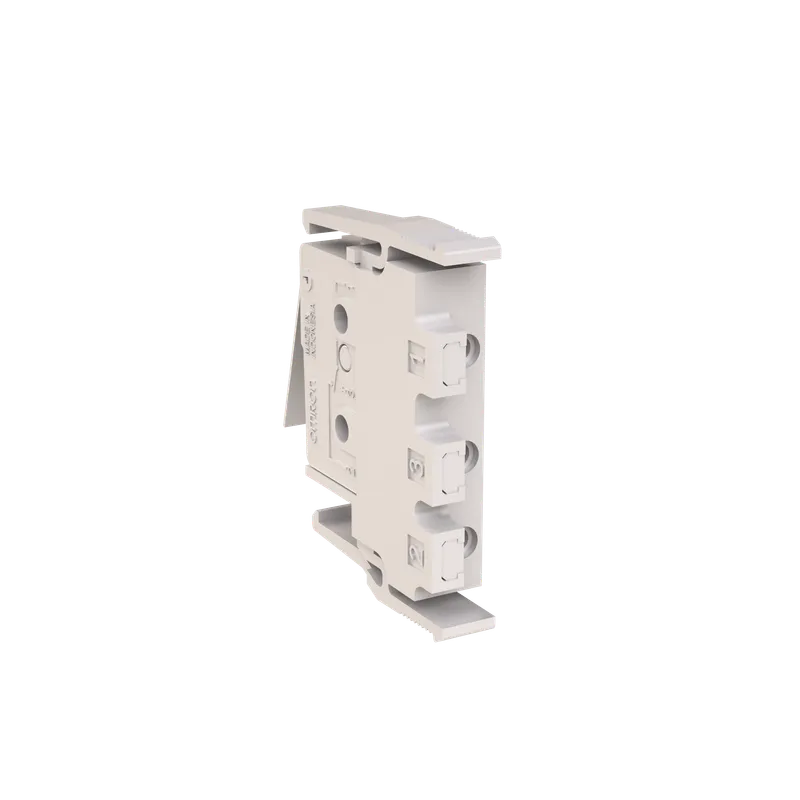

AUX 1Q 24Vdc XT1...XT4

Name: AUX 1Q 24Vdc XT1...XT4
Brand: ABB
SKU: 1SDA066423R1

MPN: 1SDA066423R1 · Brand: ABB

Price on request

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Functional Modules
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.05 kg

Shipping & availability

When can 1SDA066423R1 be shipped?

1SDA066423R1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SDA066423R1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SDA066423R1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SDA066423R1, subject to availability and destination.

1 CHANGEOVER CONTACTS OPEN-CLOSED V <(><<)> 24V DC XT1..XT4

Specifications

Material Compliance

REACH Declaration	9AKK108466A1425
RoHS Declaration	9AKK108466A1424
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
Toxic Substances Control Act - TSCA	9AKK108467A8326

Environmental

Environmental Information

9AKK108467A6707

Ordering

Order Code US and Canada	KXTAAUXD
E-Number (Norway)	4384915
EAN	8015644002787
Minimum Order Quantity	1 piece
Customs Tariff Number	85389099

Dimensions

Product Net Weight

0.048 kg kg

Container Information

Package Level 1 Units	box 1 piece
Package Level 1 Width	110 mm mm
Package Level 1 Height	60 mm mm
Package Level 1 Depth / Length	140 mm mm
Package Level 1 Gross Weight	0.05 kg kg
Package Level 1 EAN	8015644002787

Additional Information

Product Main Type	Accessories for Tmax XT
Product Name	Accessory
Product Type	Accessory
Suitable For	XT1, XT2, XT3, XT4, XT5, XT6
Suitable for Product Class	SACE Tmax XT

Technical

Configuration Type	Loose or configurable
Number of Auxiliary Contacts CO (SPDT)	1
Order Multiple	1 piece
Standards	IEC60947-2, UL489

Certificates and Declarations

Data Sheet, Technical Information	1SDC210100D0206, 1SDC210099D0206
Declaration of Conformity - CE	Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals	1SDH000719R0617

External Classifications and Standards

ETIM 9	EC000041 - Auxiliary contact block
ETIM 10	EC000041 - Auxiliary contact block
IDEA Granular Category Code (IGCC)	4743 >> Auxiliary contact block
Object Classification Code	Q
UNSPSC	39121522
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
eClass	V11.1 : 27371302
