Pepperl Fuchs PML.LR.L.W.2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Control Units (Ex e) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PML.LR.L.W.2 be shipped?
PML.LR.L.W.2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PML.LR.L.W.2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PML.LR.L.W.2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PML.LR.L.W.2, subject to availability and destination.

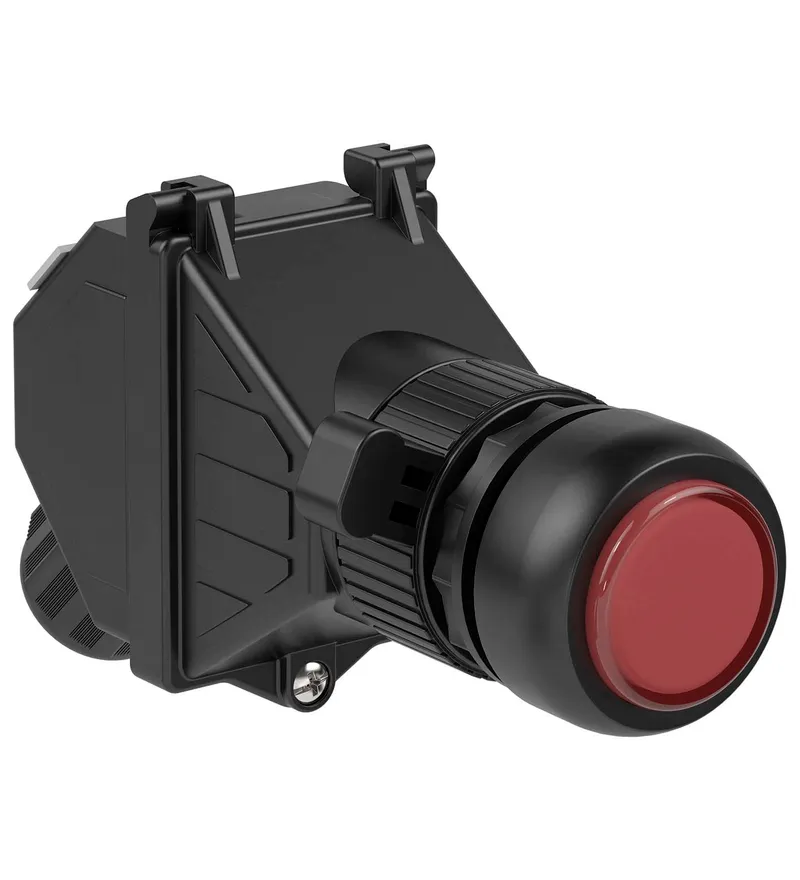

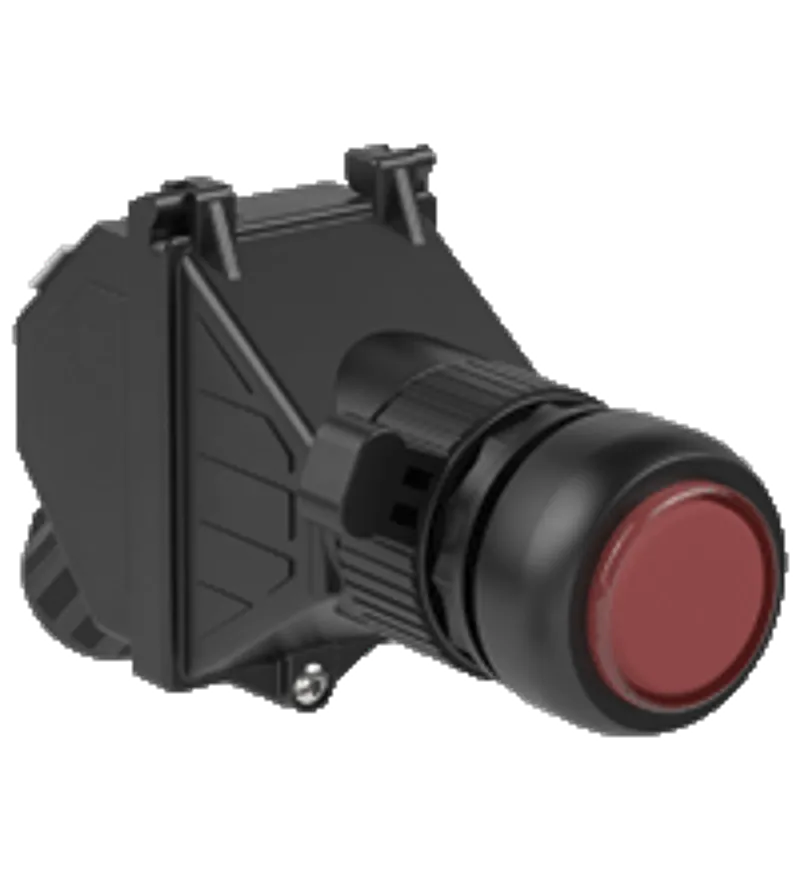

Control Unit Ex e, Panel Mount, LED Indicator. LED indicator, red - 12 ... 250 V AC/DC, Ex de and Ex tb certified, Full equipment certified, Polyamide housing for panel mount, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Cable Gland M20 integrated in protective cover, Degree of protection IP66, Function: LED indicator, Housing: Polyamide (PA), Marking: [exsign] II 2 GD <BR>Ex de IIC T6 Gb <BR>Ex tb IIIC T80 °C Db. Operating voltage: 250 V max.. Operating current: 16 A max.. Terminal capacity: 2x 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: LED indicator. ColorredRated operating voltage20 ... 250 V AC/DC: . Color: red. Rated operating voltage: 20 ... 250 V AC/DC. Cable type: non-armored cables. Clamping range (D): 5.5 ... 13 mm (D). Covering: Protective cap fully detachable. Cover fixing: Phillips head screw. Degree of protection: IP66. Cable entry: . Number of cable entries1x M20 cable gland in protective cover: . Number of cable entries: 1x M20 cable gland in protective cover. Material: . HousingPolyamide (PA)Finishinherent color blackSealsiliconeWasher gasketsilicone: . Housing: Polyamide (PA). Finish: inherent color black. Seal: silicone. Washer gasket: silicone. Mass: 150 g max.. Dimensions: . Height (A)77 mm (A)Width (B)44 mm (B)Depth (C)105 mm (C)Actuator head diameter (D2)39 mm (D2)Panel wall thickness (PT)1 ... 6 mm (PT)Diameter thru-hole (DT)30.6 mm (DT)Length outside enclosure (H)23.6 mm (H)Width across flats (SW1)24 mm (SW1)Total length (L)136.1 mm (L): . Height (A): 77 mm (A). Width (B): 44 mm (B). Depth (C): 105 mm (C). Actuator head diameter (D2): 39 mm (D2). Panel wall thickness (PT): 1 ... 6 mm (PT). Diameter thru-hole (DT): 30.6 mm (DT). Length outside enclosure (H): 23.6 mm (H). Width across flats (SW1): 24 mm (SW1). Total length (L): 136.1 mm (L). Tightening torque: . Nut torque at enclosure (SW1)2 Nm (SW1): . Nut torque at enclosure (SW1): 2 Nm (SW1). Mounting: via actuator head. Ambient temperature: -40 ... 50 °C (-40 ... 122 °F). EU-type examination certificate: CML 16 ATEX 3106X. Marking II 2 GD Ex de IIC T6 Gb Ex tb IIIC T80 °C Db: . Marking: II 2 GD Ex de IIC T6 Gb Ex tb IIIC T80 °C Db. IECEx approval: IECEx CML 16.0046X. UKCA approval: CML 21 UKEX 21275X. Degree of protection: EN 60529. Usage category: IEC / EN 60947. CE marking: 0080 or 0102, see type label. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
Specifications
Electrical specifications
| Operating voltage | 250 V max. |
| Operating current | 16 A max. |
| Terminal capacity | 2x 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque |
| Terminal torque | 0.8 Nm |
| Function | LED indicator |
| ColorredRated operating voltage20 ... 250 V AC/DC | Color |
| Color | red |
| Rated operating voltage | 20 ... 250 V AC/DC |
Mechanical specifications
| Cable type | non-armored cables |
| Clamping range (D) | 5.5 ... 13 mm (D) |
| Covering | Protective cap fully detachable |
| Cover fixing | Phillips head screw |
| Degree of protection | IP66 |
| Cable entry | |
| Number of cable entries1x M20 cable gland in protective cover | Number of cable entries |
| Number of cable entries | 1x M20 cable gland in protective cover |
| Material | |
| HousingPolyamide (PA)Finishinherent color blackSealsiliconeWasher gasketsilicone | Housing |
| Housing | Polyamide (PA) |
| Finish | inherent color black |
| Seal | silicone |
| Washer gasket | silicone |
| Mass | 150 g max. |
| Dimensions | |
| Height (A)77 mm (A)Width (B)44 mm (B)Depth (C)105 mm (C)Actuator head diameter (D2)39 mm (D2)Panel wall thickness (PT)1 ... 6 mm (PT)Diameter thru-hole (DT)30.6 mm (DT)Length outside enclosure (H)23.6 mm (H)Width across flats (SW1)24 mm (SW1)Total length (L)136.1 mm (L) | Height (A) |
| Height (A) | 77 mm (A) |
| Width (B) | 44 mm (B) |
| Depth (C) | 105 mm (C) |
| Actuator head diameter (D2) | 39 mm (D2) |
| Panel wall thickness (PT) | 1 ... 6 mm (PT) |
| Diameter thru-hole (DT) | 30.6 mm (DT) |
| Length outside enclosure (H) | 23.6 mm (H) |
| Width across flats (SW1) | 24 mm (SW1) |
| Total length (L) | 136.1 mm (L) |
| Tightening torque | |
| Nut torque at enclosure (SW1)2 Nm (SW1) | Nut torque at enclosure (SW1) |
| Nut torque at enclosure (SW1) | 2 Nm (SW1) |
| Mounting | via actuator head |
Ambient conditions
| Ambient temperature | -40 ... 50 °C (-40 ... 122 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3106X |
| Marking II 2 GD Ex de IIC T6 Gb Ex tb IIIC T80 °C Db | Marking |
| Marking | II 2 GD Ex de IIC T6 Gb Ex tb IIIC T80 °C Db |
International approvals
| IECEx approval | IECEx CML 16.0046X |
| UKCA approval | CML 21 UKEX 21275X |
Conformity
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
