K-System (DIN Rail Mounting, Highly Functional) Parts
Compare K-System (DIN Rail Mounting, Highly Functional)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Mass | Rated voltage | Signal type | Power dissipation |
|---|---|---|---|---|---|

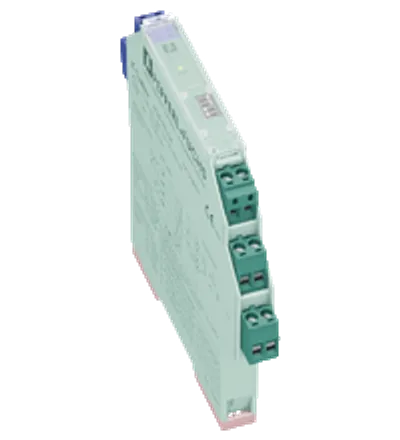

| KC-ST-5GN | 215357 | approx. 4 g | — | — | — |
| KC-STP-5GN | 215362 | approx. 4 g | — | — | — |

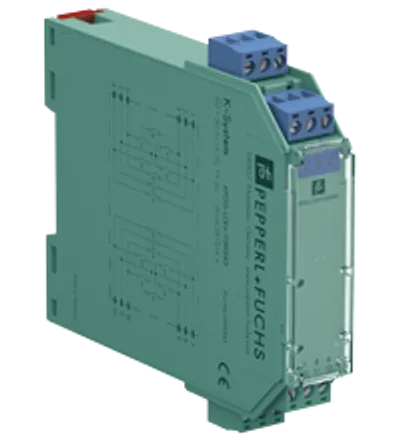

| KFD0-LGH-Y39343 | 039343 | approx. 100 g | ≤ 50 V Ur | — | — |

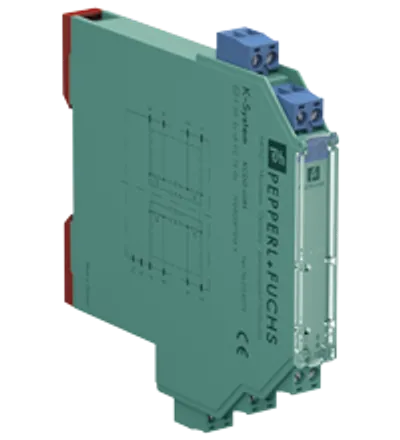

| KCD0-LGH | 204279 | approx. 80 g | ≤ 50 V Ur | — | — |

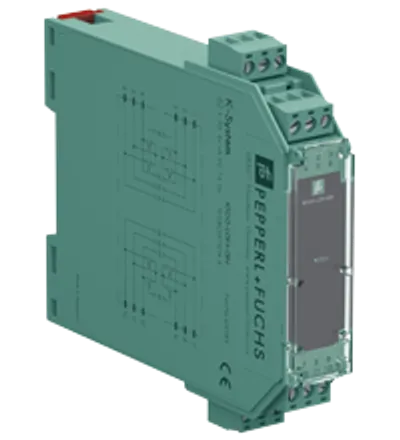

| KFD0-LGH-GN | 126984 | approx. 120 g | ≤ 50 V Ur | — | — |

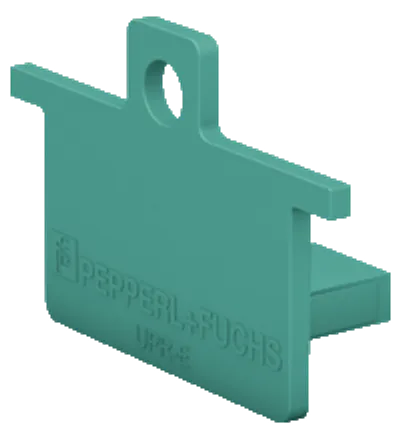

| UPR-E | 038035 | approx. 10 g | — | — | — |

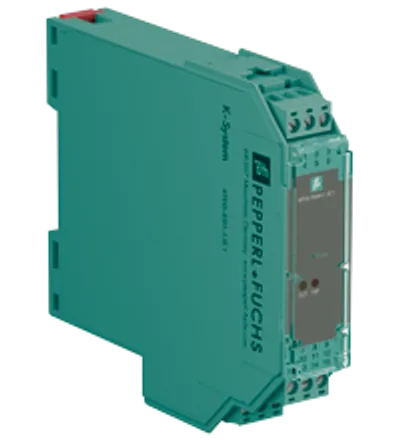

| KFD0-RSH-1.1E.1 | 70180826 | approx. 120 g | 19 ... 30 V DC loop powered Ur | Digital Output | < 1.5 W |
| KCD0-RSH-1.1E.1 | 70180765 | approx. 100 g | 19 ... 30 V DC loop powered Ur | Digital Output | < 1.5 W |

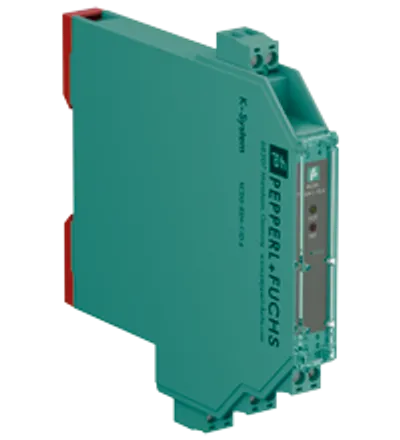

| KCD0-RSH-1.1D.4 | 70180762 | approx. 100 g | 19 ... 30 V DC loop powered Ur | Digital Output | < 1.3 W |

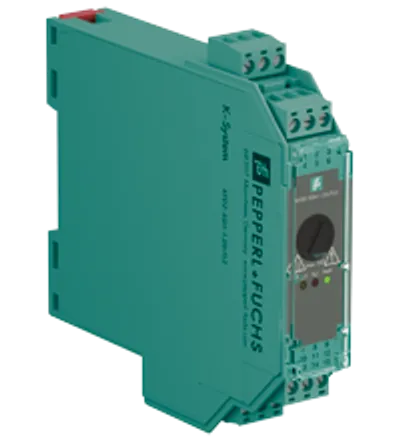

| KFD2-RSH-1.2D.FL2 | 70172208 | approx. 142 g | 19 ... 26.4 V DC Ur | Digital Output | < 3.3 W at 5 A , see derating curves |
| KFD2-RSH-1.2E.L2 | 70172205 | approx. 134 g | 19 ... 26.4 V DC Ur | Digital Output | < 3.3 W at 5 A , see derating curves |

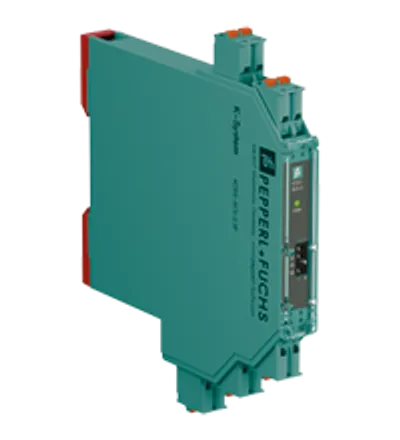

| KCD2-SCS-2.SP | 70166766 | approx. 115 g | 19 ... 30 V DC Ur | Analog input/analog output | max. 1.4 W |

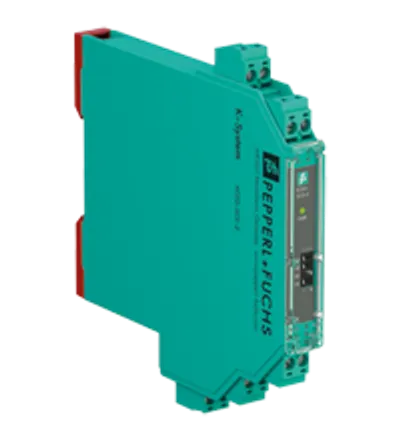

| KCD2-SCS-2 | 70166765 | approx. 115 g | 19 ... 30 V DC Ur | Analog input/analog output | max. 1.4 W |

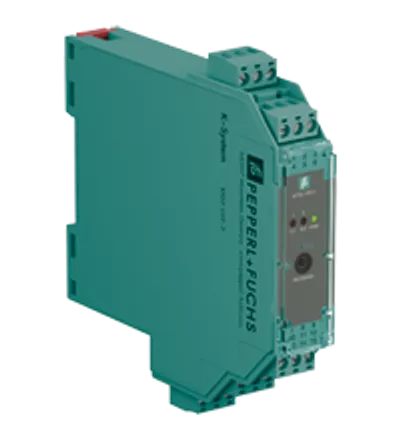

| KFD2-UT2-2 | 70158279 | approx. 130 g | 20 ... 30 V DC Ur | Analog input | ≤ 1.53 W |
| KFD2-UT2-1 | 70157028 | approx. 130 g | 20 ... 30 V DC Ur | Analog input | ≤ 0.98 W |

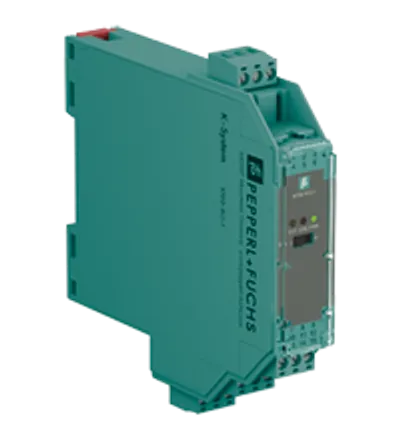

| KFD2-RCI-1 | 70155717 | approx. 150 g | 19 ... 30 V DC Ur | Digital Output | — |

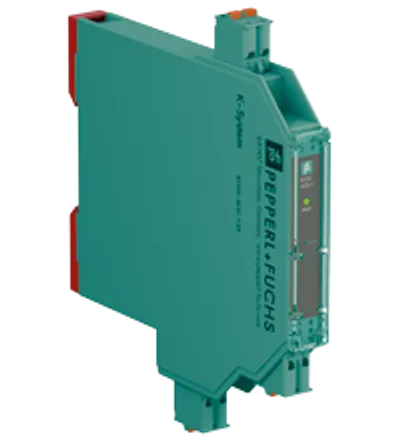

| KCD2-SCD-1.SP | 321421 | approx. 100 g | 19 ... 30 V DC Ur | Analog output | ≤ 600 mW at 20 mA and 500 Ω load |

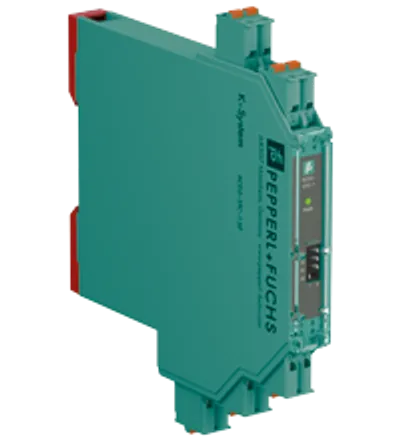

| KCD2-STC-1.SP | 321419 | approx. 100 g | 19 ... 30 V DC Ur | Analog input | ≤ 800 mW |

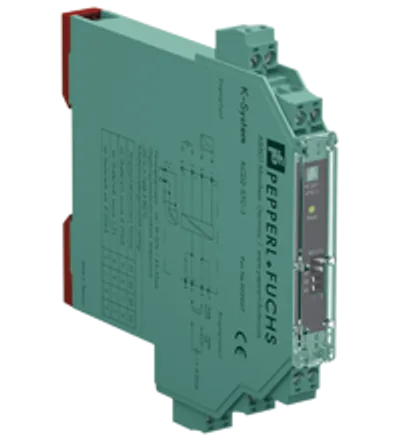

| KCD2-STC-1 | 321413 | approx. 100 g | 19 ... 30 V DC Ur | Analog input | ≤ 800 mW |

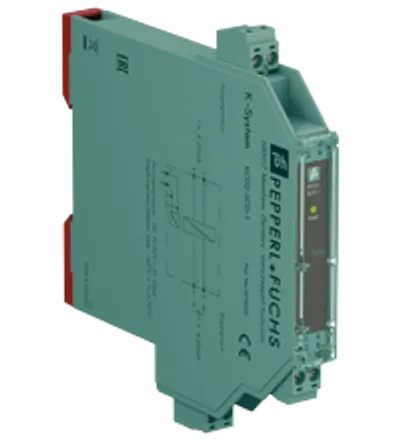

| KCD2-SCD-1 | 321420 | approx. 100 g | 19 ... 30 V DC Ur | Analog output | ≤ 600 mW at 20 mA and 500 Ω load |

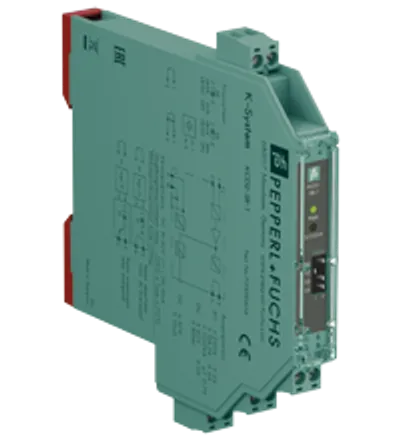

| KCD2-SR-1 | 70109403 | approx. 100 g | 19 ... 30 V DC Ur | Digital Input | ≤ 600 mW |
| KCD2-SR-2.SP | 70112150 | approx. 100 g | 19 ... 30 V DC Ur | Digital Input | ≤ 900 mW |

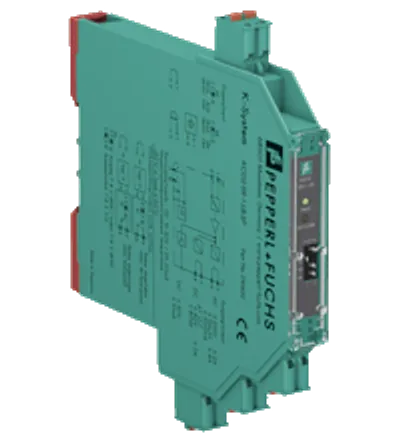

| KCD2-SR-1.LB.SP | 70112149 | approx. 100 g | 19 ... 30 V DC Ur | Digital Input | ≤ 750 mW |
| KCD2-SR-2 | 70112148 | approx. 100 g | 19 ... 30 V DC Ur | Digital Input | ≤ 900 mW |
