Home / Industrial Communication and Interfaces / Signal Conditioners / K-System (DIN Rail Mounting, Highly Functional)

K-System (DIN Rail Mounting, Highly Functional) Parts

Pepperl Fuchs

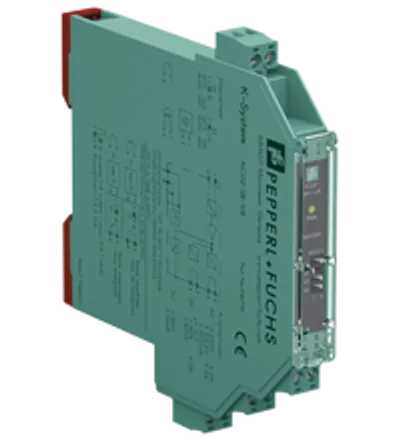

KCD2-SR-1.LB

Switch Amplifier

Pepperl Fuchs

KFD0-RSH-1.1D.F1

Relay Module

Pepperl Fuchs

KCD0-RSH-1.1D.1

Relay Module

Pepperl Fuchs

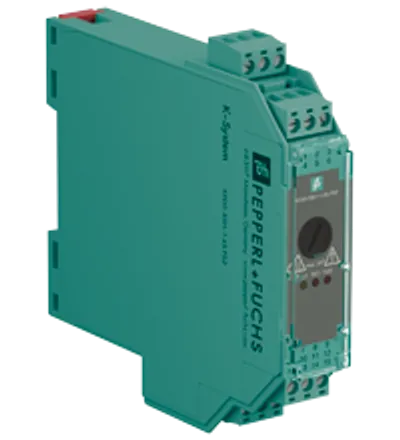

KFD0-RSH-1.4S.PS2

Relay Module

Pepperl Fuchs

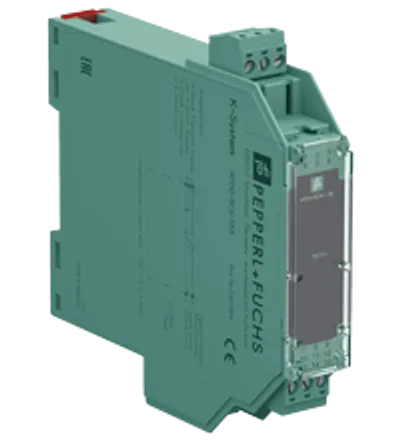

KFD0-SCS-1.55

SMART Current Driver/Repeater

Pepperl Fuchs

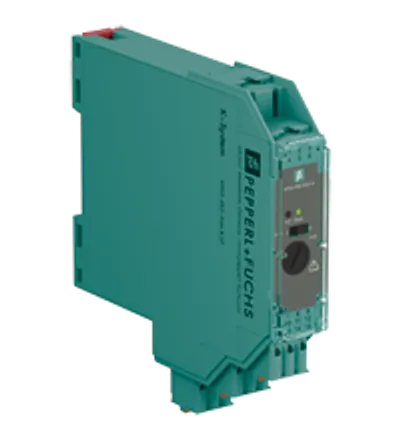

KFD2-EB2.R4A.B.SP

Redundant Power Feed Module

Pepperl Fuchs

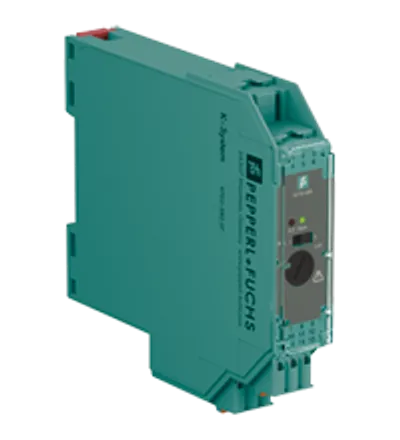

KFD2-EB2.SP

Power Feed Module

Pepperl Fuchs

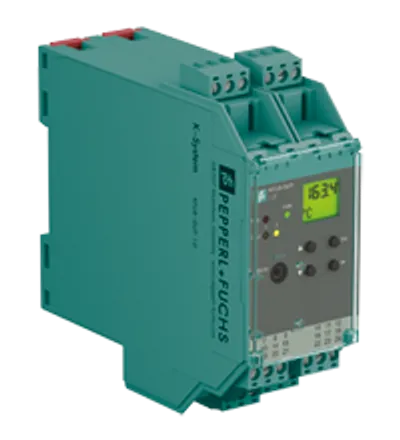

KFU8-GUT-1.D

Temperature Converter with Trip Values

Pepperl Fuchs

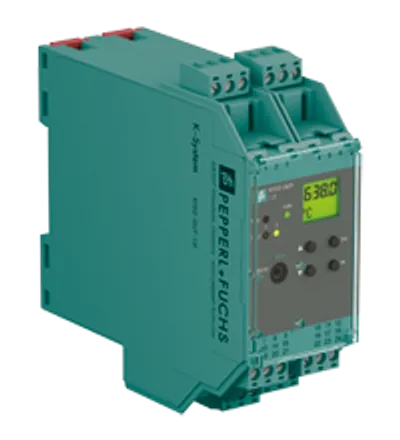

KFD2-GUT-1.D

Temperature Converter with Trip Values

Pepperl Fuchs

KFD2-WAC2-1.D

Strain Gauge Converter

Pepperl Fuchs

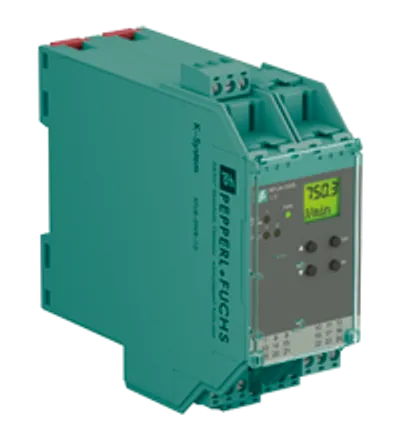

KFU8-DWB-1.D

Rotation Speed Monitor

Pepperl Fuchs

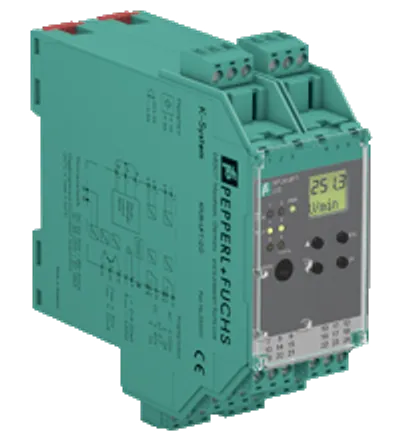

KFU8-UFT-2.D

Frequency Converter with Direction and Synchronization Monitor

Pepperl Fuchs

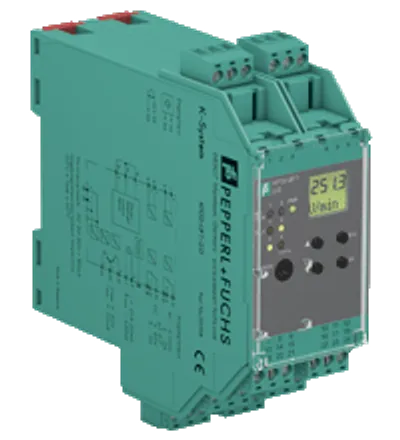

KFD2-UFT-2.D

Frequency Converter with Direction and Synchronization Monitor

Pepperl Fuchs

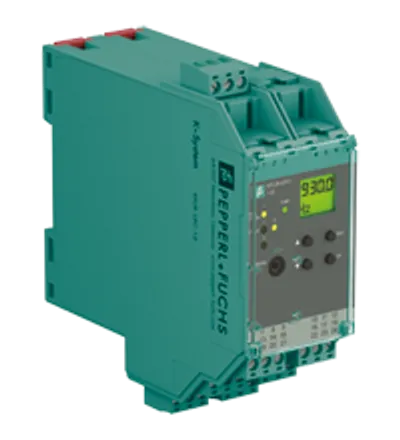

KFU8-UFC-1.D

Frequency Converter with Trip Values

Pepperl Fuchs

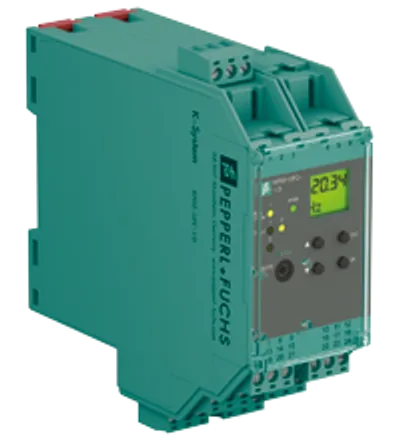

KFD2-UFC-1.D

Frequency Converter with Trip Values

Pepperl Fuchs

KCD2-SOT-2

Switch Amplifier

Pepperl Fuchs

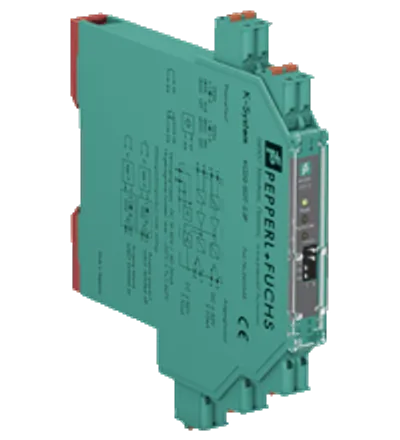

KCD2-SOT-2.SP

Switch Amplifier

Pepperl Fuchs

KCD2-SOT-1.LB

Switch Amplifier

Pepperl Fuchs

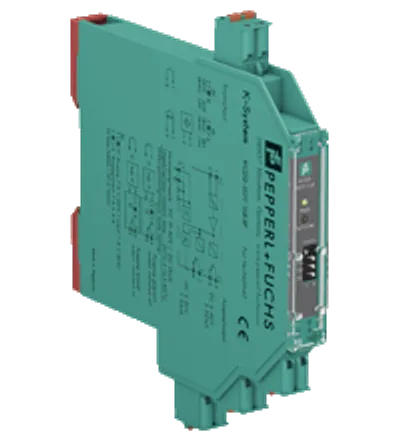

KCD2-SOT-1.LB.SP

Switch Amplifier

Pepperl Fuchs

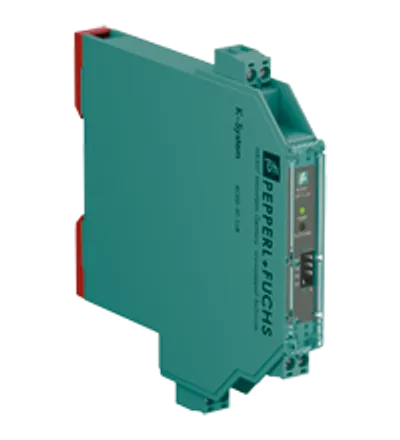

KCD2-ST-1.LB

Switch Amplifier

Pepperl Fuchs

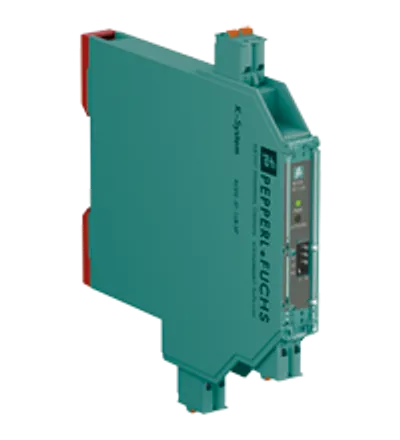

KCD2-ST-1.LB.SP

Switch Amplifier

Pepperl Fuchs

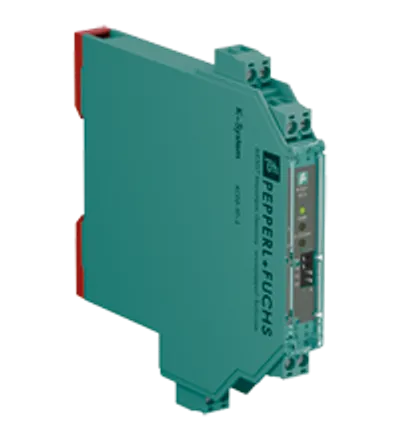

KCD2-ST-2

Switch Amplifier

Pepperl Fuchs

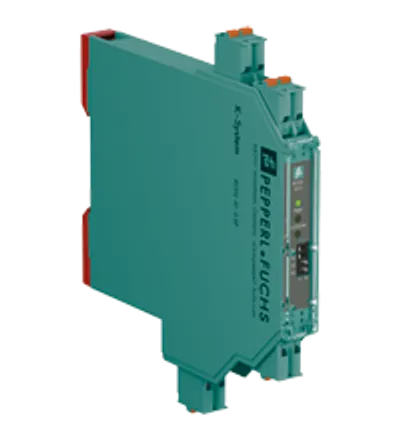

KCD2-ST-2.SP

Switch Amplifier

Pepperl Fuchs

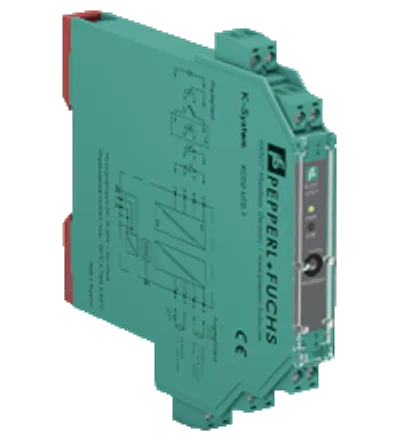

KCD2-UT2-1

Universal Temperature Converter

Compare K-System (DIN Rail Mounting, Highly Functional)

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Order code (Pepperl+Fuchs part number)	Signal type	Open circuit voltage/short-circuit current	Configuration	Mass
KCD2-SR-1.LB	70112146	Digital Input	approx. 8 V DC / approx. 8 mA	via DIP switches	approx. 100 g
KFD0-RSH-1.1D.F1	70131899	Digital Output	—	—	approx. 120 g
KCD0-RSH-1.1D.1	70131898	Digital Output	—	—	approx. 100 g
KFD0-RSH-1.4S.PS2	70132178	Digital Output	—	—	approx. 100 g
KFD0-SCS-1.55	240494	Analog input/analog output	—	—	approx. 120 g
KFD2-EB2.R4A.B.SP	240662	—	—	via DIP switches	approx. 100 g
KFD2-EB2.SP	240660	—	—	via DIP switches	approx. 100 g
KFU8-GUT-1.D	231226	Analog input	—	via operating buttons via PACTware	300 g
KFD2-GUT-1.D	231224	Analog input	—	via operating buttons via PACTware	300 g
KFD2-WAC2-1.D	231223	Analog input	18 V / 5 mA	via operating buttons via PACTware	approx. 250 g
KFU8-DWB-1.D	231209	Digital Input	22 V / 40 mA	via operating buttons	300 g
KFU8-UFT-2.D	231201	Digital Input	8.2 V / 10 mA	via operating buttons via PACTware	300 g
KFD2-UFT-2.D	231198	Digital Input	8.2 V / 10 mA	via operating buttons via PACTware	300 g
KFU8-UFC-1.D	231195	Digital Input	22 V / 40 mA	via operating buttons via PACTware	300 g
KFD2-UFC-1.D	231193	Digital Input	22 V / 40 mA	via operating buttons via PACTware	300 g
KCD2-SOT-2	214248	Digital Input	approx. 10 V DC / approx. 8 mA	via DIP switches	approx. 100 g
KCD2-SOT-2.SP	240648	Digital Input	approx. 10 V DC / approx. 8 mA	via DIP switches	approx. 100 g
KCD2-SOT-1.LB	214246	Digital Input	approx. 10 V DC / approx. 8 mA	via DIP switches	approx. 100 g
KCD2-SOT-1.LB.SP	240647	Digital Input	approx. 10 V DC / approx. 8 mA	via DIP switches	approx. 100 g
KCD2-ST-1.LB	214245	Digital Input	approx. 10 V DC / approx. 8 mA	via DIP switches	approx. 100 g
KCD2-ST-1.LB.SP	242098	Digital Input	approx. 10 V DC / approx. 8 mA	via DIP switches	approx. 100 g
KCD2-ST-2	214247	Digital Input	approx. 10 V DC / approx. 8 mA	via DIP switches	approx. 100 g
KCD2-ST-2.SP	242099	Digital Input	approx. 10 V DC / approx. 8 mA	via DIP switches	approx. 100 g
KCD2-UT2-1	253994	Analog input	—	via PACTware	approx. 100 g

Common to all listed parts

Lifecycle	Active (current Pepperl+Fuchs product)
Labeling	space for labeling at the front
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
