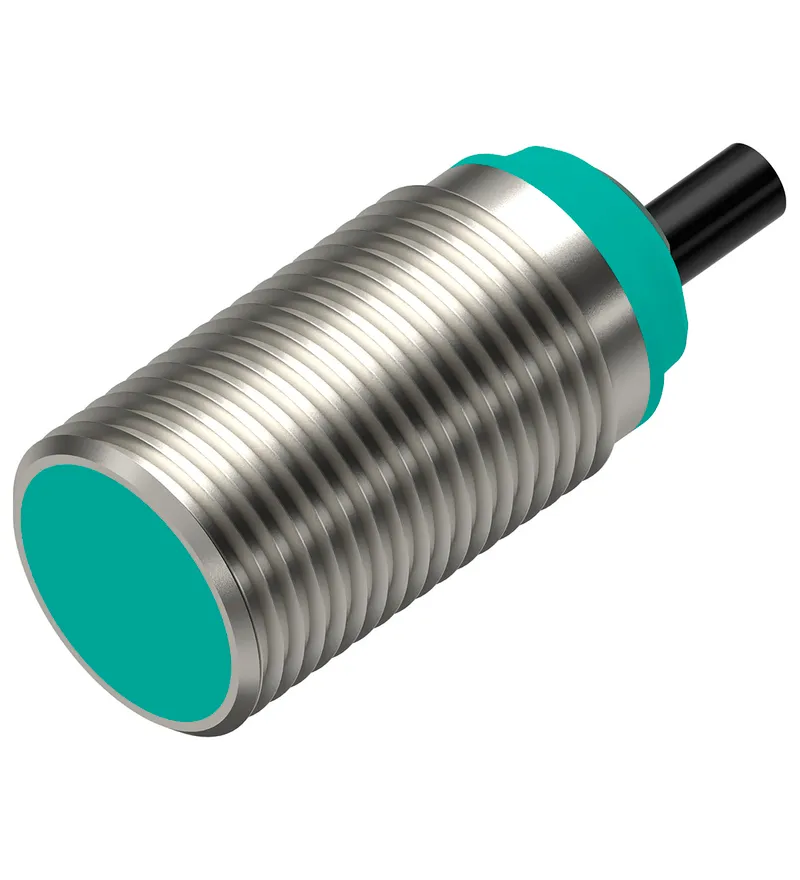

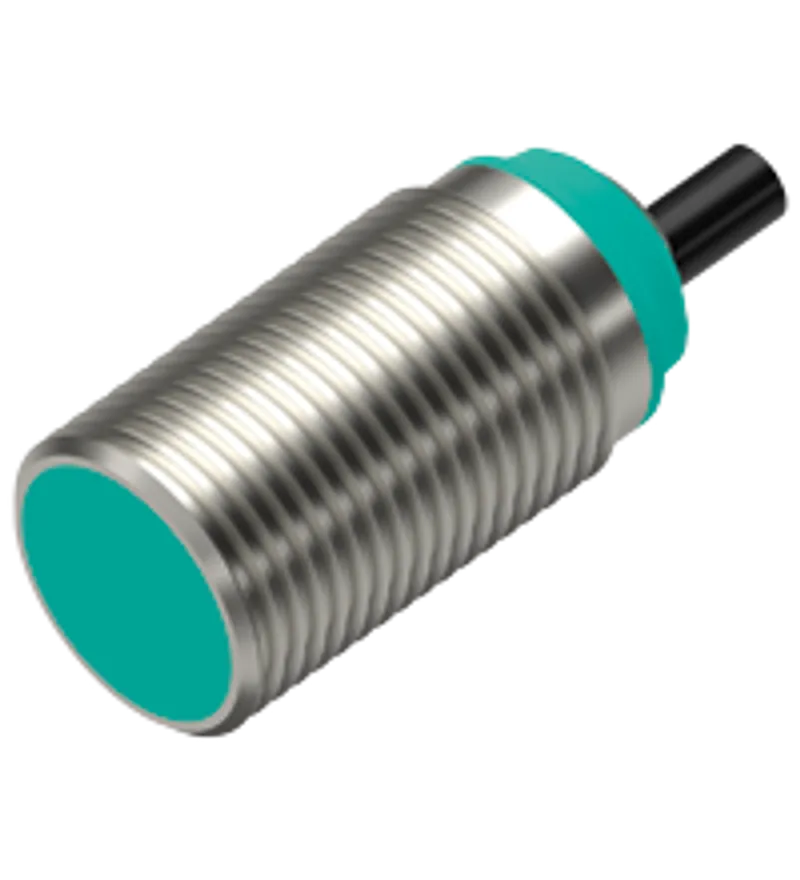

Pepperl Fuchs NBB8-18GM35-E2-5M
Inductive sensor
- MPN
- NBB8-18GM35-E2-5M
- Category
- Inductive Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs NBB8-18GM35-E2-5M?
Use in harsh environments
High shock resistance
Extended temperature range -40 ... +85 °C
Extended operating voltage range
Extremely high switching frequency
Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: brass , white bronze coated, Degree of protection: IP65 / IP66 / IP67 / IP68 / IP69, Material: PVC
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 326163-0310 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 8 mm sn |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 6.48 mm sa |
| Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 24 mm x 24 mm x 1 mm |
| Reduction factor rAl | 0.38 |
| Reduction factor rCu | 0.35 |
| Reduction factor r304 | 0.74 |
| Reduction factor rBrass | 0.47 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 6 ... 36 V UB |
| Switching frequency | 0 ... 1350 Hz f |
| Hysteresis | typ. 5 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 1 V Ud |
| Operating current | 0 ... 200 mA IL |
| Off-state current | max. 20 µA Ir |
| No-load supply current | ≤ 10 mA I0 |
| Time delay before availability | ≤ 10 ms tv |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 1610 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Conformity
| PWIS conformity | VDMA 24364-C1/T100°C-W |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| Protection class | II |
| Rated insulation voltage | 36 V Ui |
| Rated impulse withstand voltage | 500 V Uimp |
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 36 V DC Output Switching Current: 200 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Marine approval | DNVGL TAA00003AK |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | brass , white bronze coated |
| Sensing face | PBT , green |
| Degree of protection | IP65 / IP66 / IP67 / IP68 / IP69 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 4.3 mm ± 0.15 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Color | black |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.34 mm2 |
| Cable: Length | 5 m L |
| Mass | 187 g |

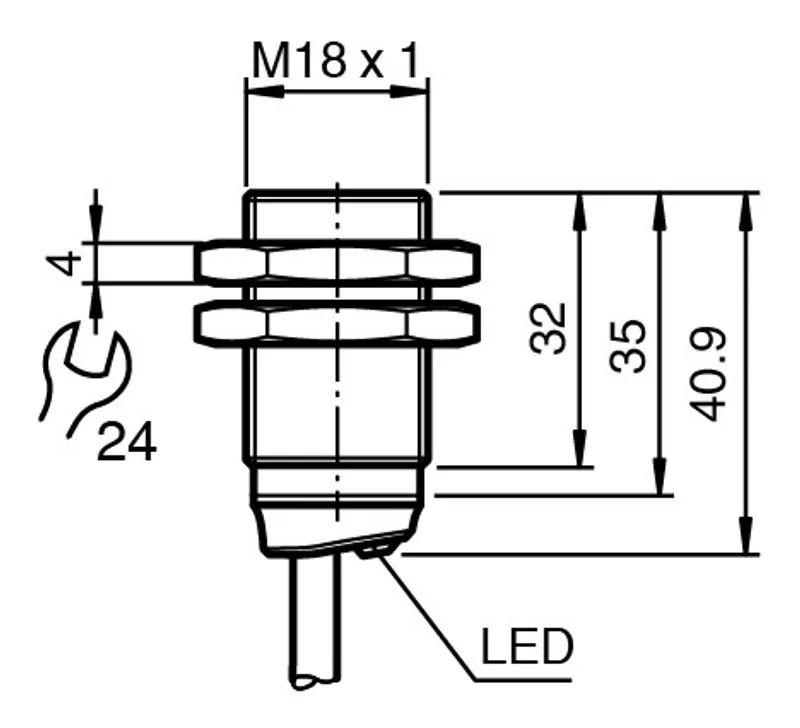

| Dimensions: Length | 41 mm |
| Dimensions: Diameter | 18 mm |
| Mounting | with nuts, M18 |
| Tightening torque | ≤ 30 Nm |
General information
| Scope of delivery | 2 self locking nuts in scope of delivery |
