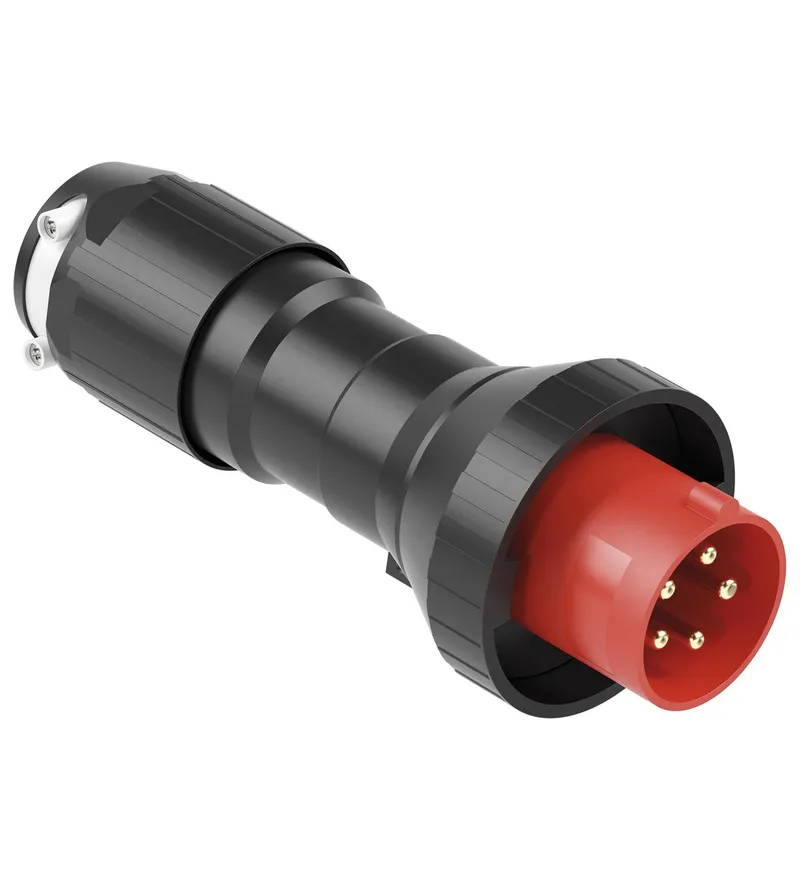

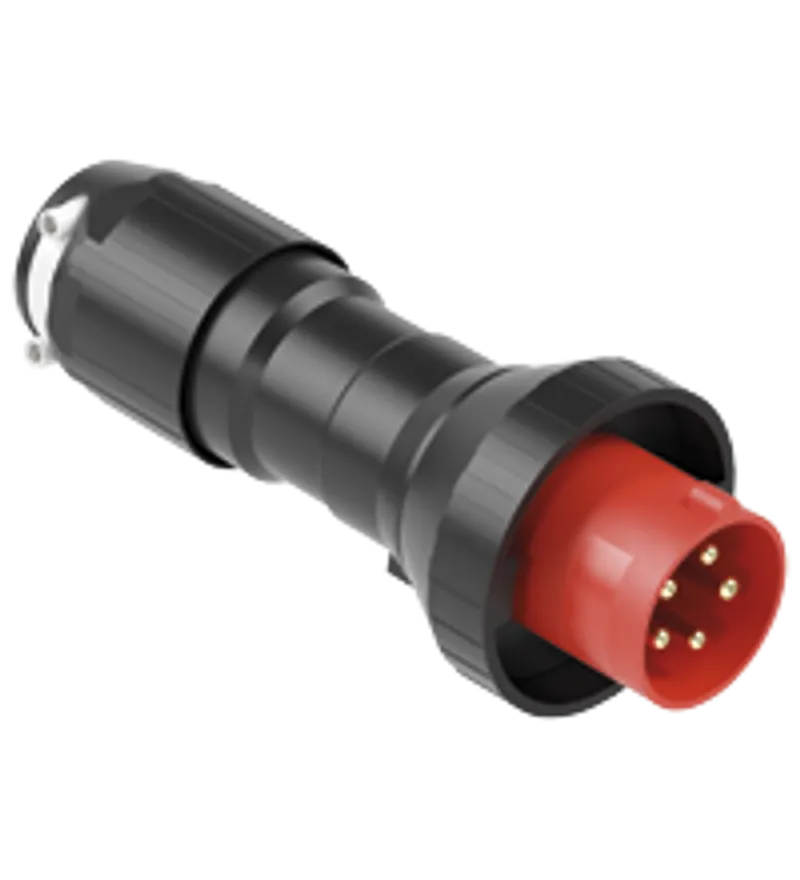

Pepperl Fuchs PS*-7*
Plugs Ex de
- MPN
- PS*-7*
- Category
- Inductive Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs PS*-7*?
Ex de and Ex t certified
Polyamide
Full equipment certified
Installation in Zone 1, Zone 2, Zone 21 and Zone 22
Degree of protection IP66
Degree of protection ensured when plugged into socket and secured by means of bayonet catch
Low insertion force
Ex de and Ex t certified, Polyamide, Full equipment certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Degree of protection IP66, Degree of protection ensured when plugged into socket and secured by means of bayonet catch, Low insertion force, Operating voltage: see table, Operating current: see table, Number of poles: see table, Color coding according to IEC 60309: see table
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | T194110 |
| Operating voltage | see table |
| Operating current | see table |
| Terminal capacity | see table |
| Supply frequency | 50/60 Hz |
| Function | plug |
| Number of poles | see table |
| Color coding according to IEC 60309 | see table |
| Protective contact position according to IEC 60309 | see table |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Cable type | non-armored cables |
| Clamping range (D) | see table |
| Degree of protection | IP66 |
| Material: Housing | Polyamide (PA) |
| Material: Finish | inherent color black |
| Mass | see table |

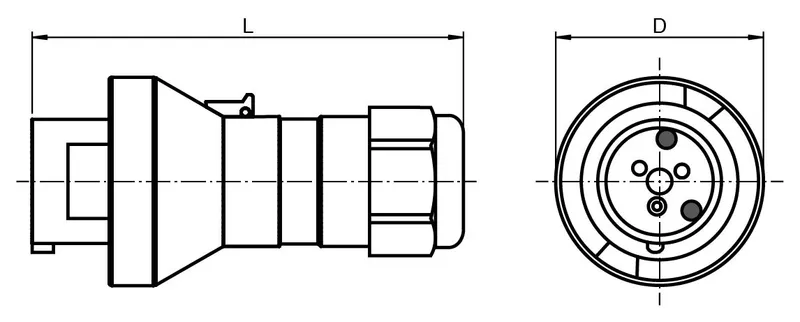

| Dimensions | see table |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | SIRA 11 ATEX 1044 |
| Marking | II 2 GD Ex de IIC T6 Gb Ex t IIIC T80 °C Db |
International approvals
| IECEx approval | IECEx SIR 11.0026 |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 0102 |
| Plug connection | IEC 60309 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
