Pepperl Fuchs NBN4-F29-E2-0,13M-V3-Y

Inductive sensor

MPN: NBN4-F29-E2-0,13M-V3-Y
Category: Inductive Sensors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs NBN4-F29-E2-0,13M-V3-Y?

Basic series

Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 4.75 ... 30 V DC, Type of voltage: DC, Connection type: fixed cable with plug, Housing material: PPS, Degree of protection: IP67, Threading: M8 x 1, Material: PVC

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70206893
Switching function	Normally open (NO)
Output type	PNP
Rated operating distance	4 mm sn
Installation	non-flush
Output polarity	DC
Assured operating distance	0 ... 3.24 mm sa
Reduction factor rAl	0.4
Reduction factor rCu	0.3
Reduction factor r304	0.7
Output type	3-wire
Lifecycle	Active (current Pepperl+Fuchs product)

Nominal ratings

Operating voltage	4.75 ... 30 V DC UB
Switching frequency	0 ... 1000 Hz f
Hysteresis	typ. 5 % H
Reverse polarity protection	reverse polarity protected
Short-circuit protection	pulsing
Voltage drop	≤ 3 V Ud
Operating current	0 ... 100 mA IL
Off-state current	0 ... 0.5 mA typ. 0.1 µA at 25 °C Ir
No-load supply current	≤ 10 mA I0
Time delay before availability	≤ 5 ms tv
Switching state indicator	LED, yellow

Safety-relevant product characteristics

MTTFd	2133 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %

Compliance with standards and directives

Standard conformity: Standards

EN IEC 60947-5-2

Approvals and certificates

UL approval	cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA Further UL information see section "Additional Information"
CCC approval	CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Connection type	fixed cable with plug
Housing material	PPS
Sensing face	PPS
Degree of protection	IP67
Connector: Threading	M8 x 1
Connector: Tightening torque	≤ 0.4 Nm
Connector: Number of pins	3
Cable: Cable diameter	3.5 mm ± 0.2 mm
Cable: Bending radius	> 10 x cable diameter
Cable: Material	PVC
Cable: Color	grey
Cable: Number of cores	3
Cable: Core cross section	0.14 mm2
Cable: Length	130 mm L

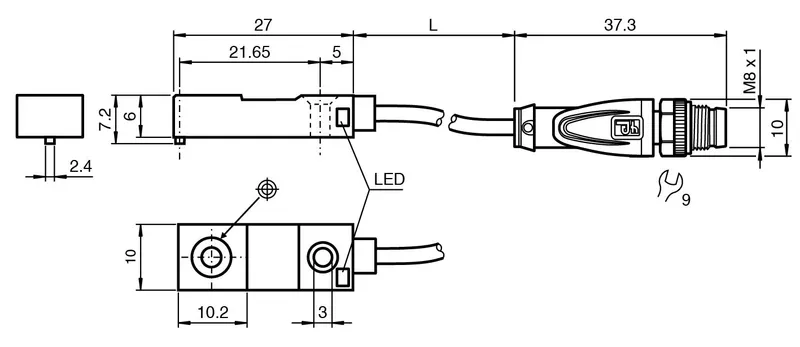

Dimensions: Height	6 mm
Dimensions: Width	10 mm
Dimensions: Length	27 mm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet NBN4-F29-E2-0,13M-V3-YPDF

CAD & dimension drawings

3-D model (STEP) NBN4-F29-E2-Y295466STP · 74 kB

Certificates (4)
