Pepperl Fuchs ENI58IL-S**Q*
Incremental rotary encoder
- MPN
- ENI58IL-S**Q*
- Category
- Incremental Rotary Encoders
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

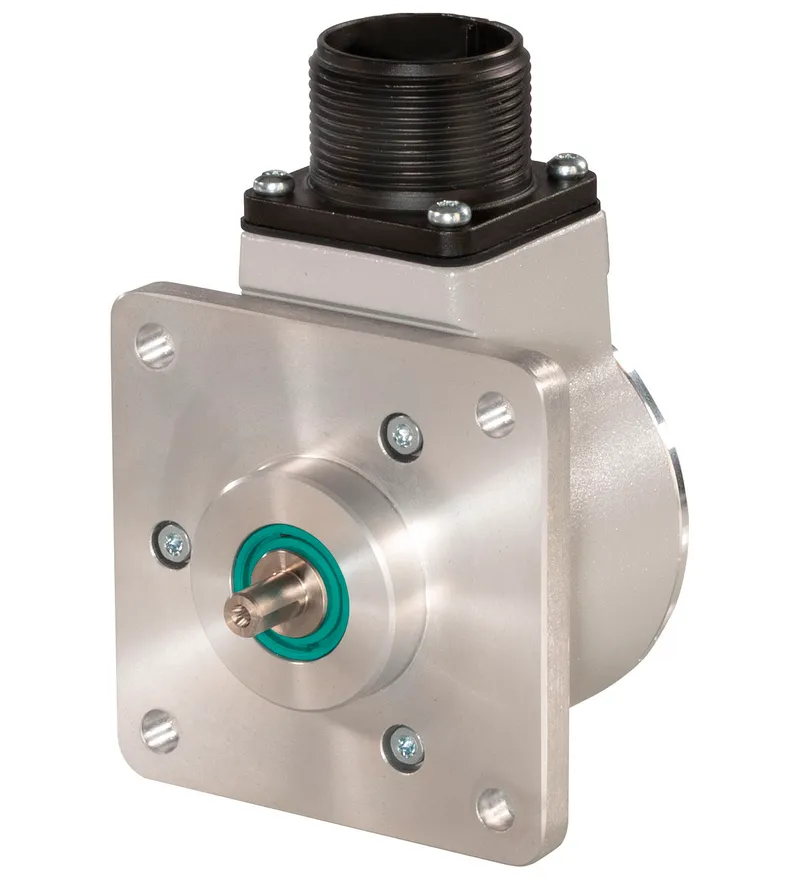

What is the Pepperl Fuchs ENI58IL-S**Q*?
Housing ∅ 58 mm
Solid shaft
Up to 1500 ppr
Square flange
Universal output driver
BlueBeam technology for ultimate precision
Housing powder coated
Housing ∅ 58 mm, Solid shaft, Up to 1500 ppr, Square flange, Universal output driver, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: push-pull, incremental, Detection type: photoelectric sampling, Output type: push-pull or RS422 (universal output driver, output level depending on input voltage)
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T215148 |
| Detection type | photoelectric sampling |
| Linearity error | ± 0.025 ° |
| Pulse count | max. 1500 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | 4.75 ... 30 V DC , Reverse polarity protection UB |
| No-load supply current | max. 50 mA I0 |
Output
| Output type | push-pull or RS422 (universal output driver, output level depending on input voltage) |
| Load current | max. per channel 40 mA , short-circuit protected |
| Output frequency | max. 400 kHz |
| Rise time | 300 ns |
| Phase position A to B: Pulse counts < 3600 | 90 ° ± 9 ° electrical |
| Phase position A to B: Pulse counts ≥ 3600 | 90 ° ± 15 ° electrical |
| Duty cycle | 1/2 ± 10 % |
Connection

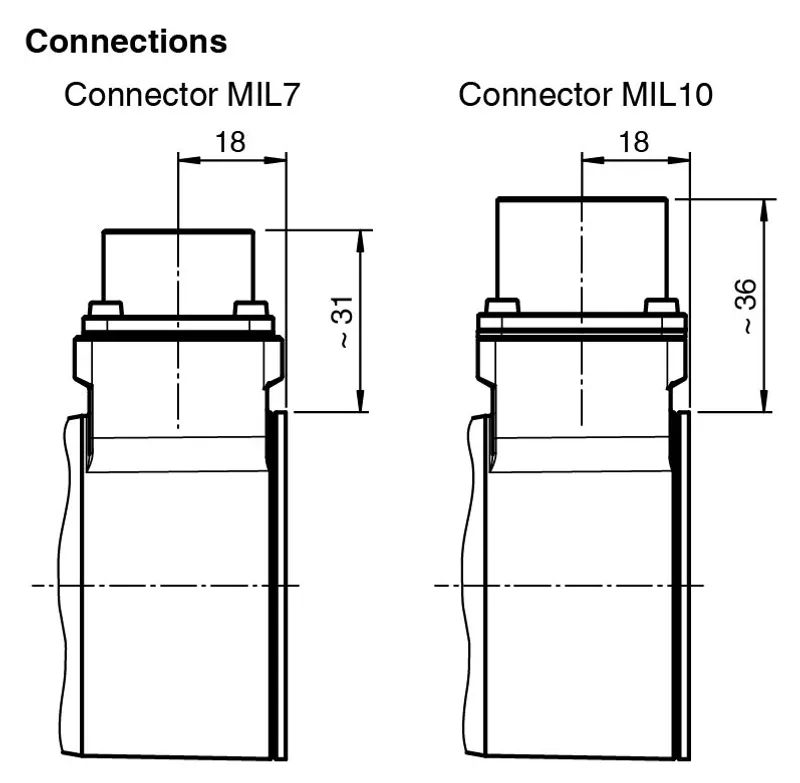

| Connector | 10-pin MIL connector 7-pin MIL connector |

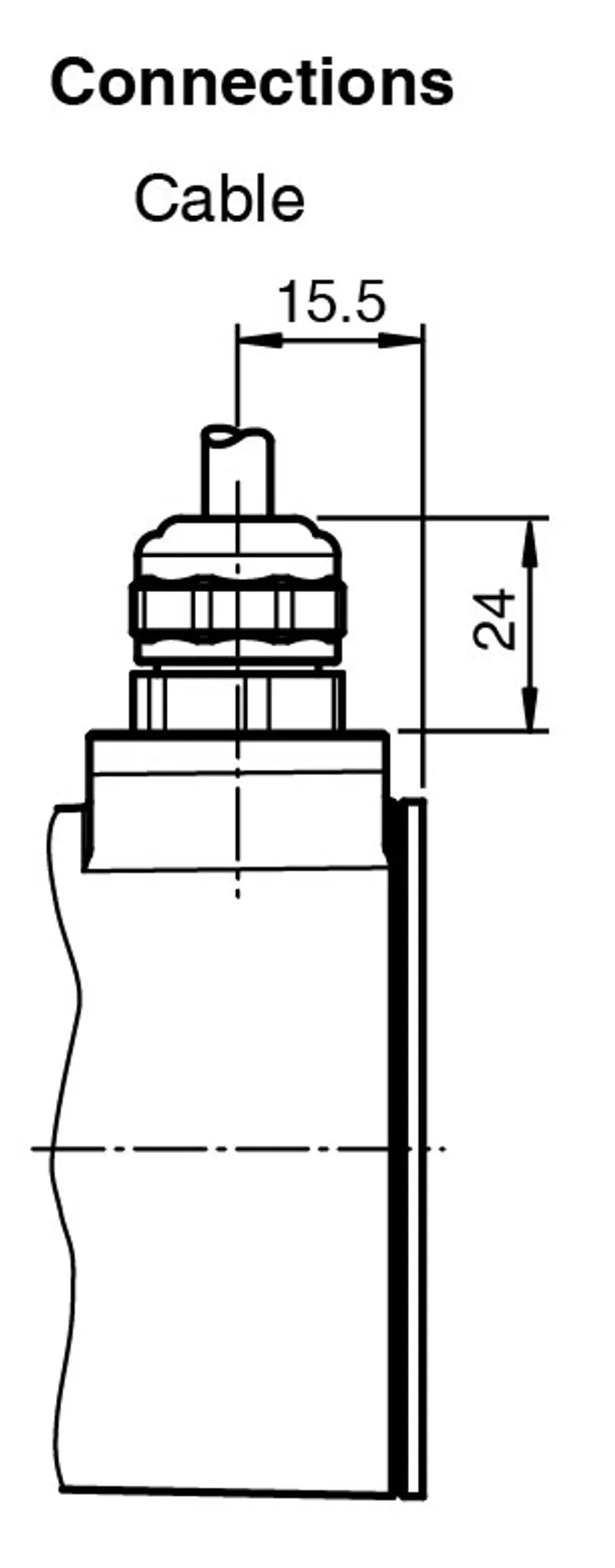

| Cable | ∅6 mm, 4 x 2 x 0.14 mm2 |
Standard conformity
| Degree of protection | DIN EN 60529, IP65, IP67 |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation |
| Emitted interference | EN IEC 61000-6-4:2019 |
| Noise immunity | EN IEC 61000-6-2:2019 |
| Shock resistance | DIN EN 60068-2-27, 300 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 30 g, 10 ... 2000 Hz |
Approvals and certificates
| UL approval | E223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request |
| Maximum permissible ambient temperature | max. 80 °C (max. 176 °F) |
Ambient conditions
| Operating temperature | -40 ... 85 °C (-40 ... 185 °F) , cable, fixed installation-5 ... 85 °C (23 ... 185 °F) , cable, movable installation |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |

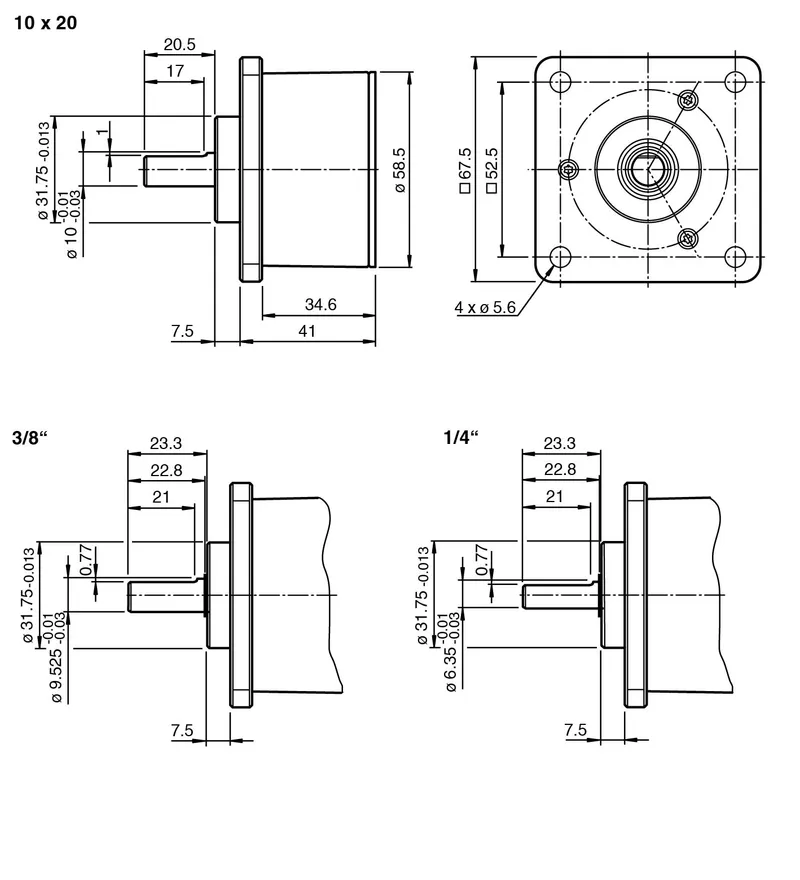

Mechanical specifications
| Material: Housing | powder coated aluminum |
| Material: Flange | aluminum, blank |
| Material: Shaft | Solid shaft Stainless steel |
| Mass | < 400 g without cable |
| Rotational speed | max. 12000 min -1 for IP65 max. 6000 min -1 for IP67 |
| Moment of inertia | ≤ 35 gcm2 |
| Starting torque | ≤ 0.01 Nm for IP65 ≤ 0.025 Nm for IP67 |
| Shaft load: Axial | 40 N at max. 6000 min-1 10 N at max. 12000 min-1 |
| Shaft load: Radial | 80 N at max. 6000 min-1 20 N at max. 12000 min-1 |
| Dimensions: Diameter | 58.5 mm |
