Pepperl Fuchs ENI58IL-R*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Incremental Rotary Encoders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ENI58IL-R* be shipped?
ENI58IL-R* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ENI58IL-R* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ENI58IL-R* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ENI58IL-R*, subject to availability and destination.

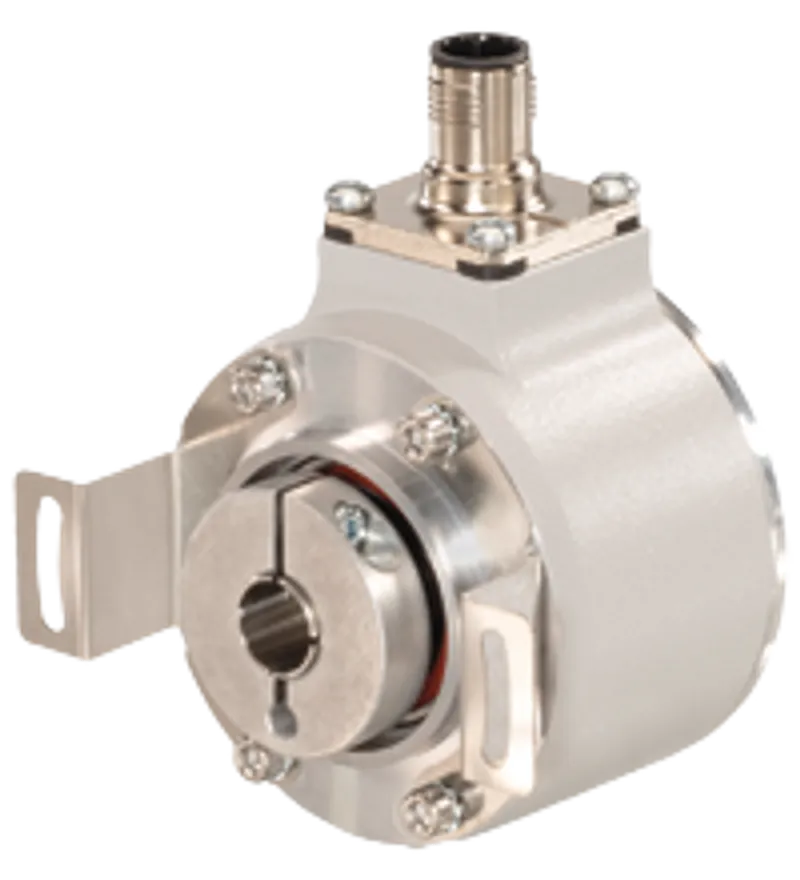

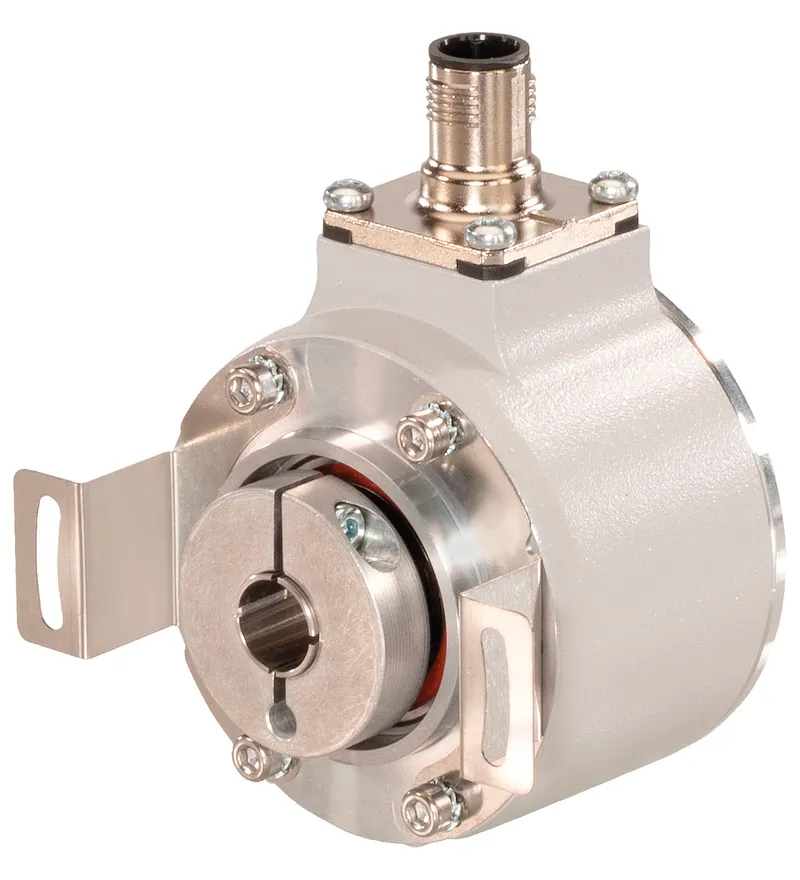

Incremental rotary encoder. Housing ∅ 58 mm, Recessed hollow shaft, Universal output driver, BlueBeam technology for ultimate precision, Up to 5000 pulses, Enclosure type: 58 mm, Type of shaft: Recessed hollow shaft, Interface: push-pull, incremental, Detection type: photoelectric sampling, Output type: push-pull or RS422 (universal output driver, output level depending on input voltage). Detection type: photoelectric sampling. Linearity error: ± 0.025 °. Pulse count: max. 5000. Operating voltage: 4.75 ... 30 V DC. No-load supply current: max. 50 mA. Output type: push-pull or RS422 (universal output driver, output level depending on input voltage). Load current: max. per channel 40 mA , short-circuit protected, reverse polarity protected. Output frequency: max. 400 kHz. Rise time: 300 ns. Phase position A to B: . Pulse counts < 360090 ° ± 9 ° electricalPulse counts ≥ 360090 ° ± 15 ° electrical: . Pulse counts < 3600: 90 ° ± 9 ° electrical. Pulse counts ≥ 3600: 90 ° ± 15 ° electrical. Duty cycle: 1/2 ± 10 %. Connector: M12 connector, 8-pin M12 connector, 5 pin M23 connector, 12-pin 10-pin MIL connector 7-pin MIL connector. Cable: ∅6 mm, 4 x 2 x 0.14 mm2. Degree of protection: DIN EN 60529, IP65, IP67. Climatic testing: DIN EN 60068-2-78 , no moisture condensation. Emitted interference: EN IEC 61000-6-4:2019. Noise immunity: EN IEC 61000-6-2:2019. Shock resistance: DIN EN 60068-2-27, 300 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 30 g, 10 ... 2000 Hz. UL approval: E223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request. Maximum permissible ambient temperaturemax. 80 °C (max. 176 °F): . Maximum permissible ambient temperature: max. 80 °C (max. 176 °F). Operating temperature: -40 ... 85 °C (-40 ... 185 °F) , cable, fixed installation-5 ... 85 °C (23 ... 185 °F) , cable, movable installation. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Material: . Housingpowder coated aluminumFlangealuminum, blankShaftRecessed hollow shaft Stainless steel: . Housing: powder coated aluminum. Flange: aluminum, blank. Shaft: Recessed hollow shaft Stainless steel. Mass: < 300 g without cable. Rotational speed: max. 8000 min -1 for IP65 max. 6000 min -1 for IP67. Moment of inertia: ≤ 60 gcm2. Starting torque: ≤ 0.015 Nm for IP65 ≤ 0.025 Nm for IP67. Shaft load: . Angle offsetmax. 1 °Axial offsetmax. 1 mm: . Angle offset: max. 1 °. Axial offset: max. 1 mm. Dimensions: . Diameter58.5 mm: . Diameter: 58.5 mm
Specifications
General specifications
| Detection type | photoelectric sampling |
| Linearity error | ± 0.025 ° |
| Pulse count | max. 5000 |
Electrical specifications
| Operating voltage | 4.75 ... 30 V DC UB |
| No-load supply current | max. 50 mA I0 |
Output
| Output type | push-pull or RS422 (universal output driver, output level depending on input voltage) |
| Load current | max. per channel 40 mA , short-circuit protected, reverse polarity protected |
| Output frequency | max. 400 kHz |
| Rise time | 300 ns |
| Phase position A to B | |
| Pulse counts < 360090 ° ± 9 ° electricalPulse counts ≥ 360090 ° ± 15 ° electrical | Pulse counts < 3600 |
| Pulse counts < 3600 | 90 ° ± 9 ° electrical |
| Pulse counts ≥ 3600 | 90 ° ± 15 ° electrical |
| Duty cycle | 1/2 ± 10 % |

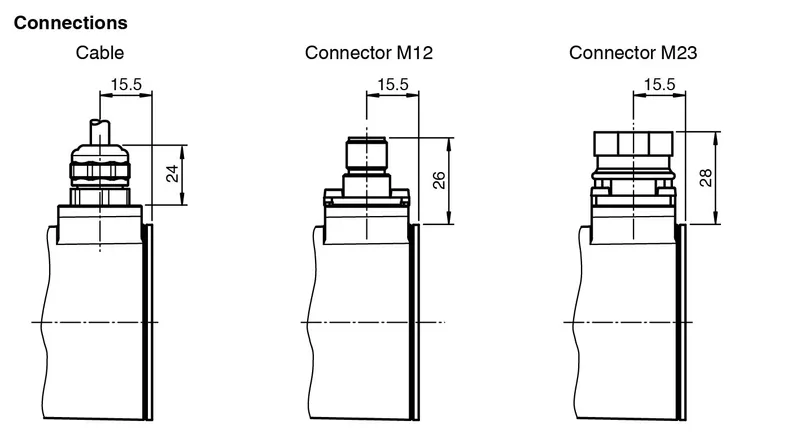

Connection

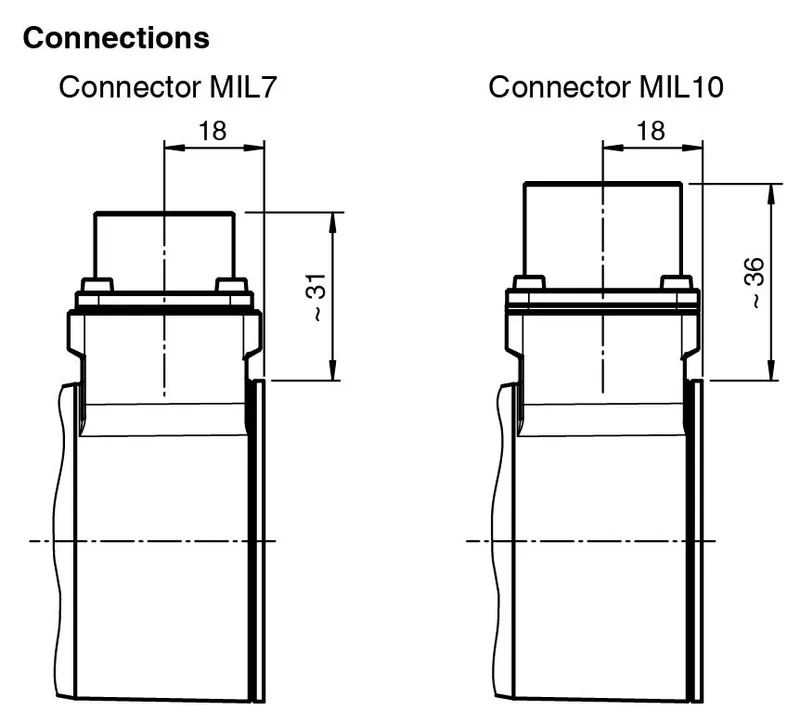

| Connector | M12 connector, 8-pin M12 connector, 5 pin M23 connector, 12-pin 10-pin MIL connector 7-pin MIL connector |
| Cable | ∅6 mm, 4 x 2 x 0.14 mm2 |
Standard conformity
| Degree of protection | DIN EN 60529, IP65, IP67 |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation |
| Emitted interference | EN IEC 61000-6-4:2019 |
| Noise immunity | EN IEC 61000-6-2:2019 |
| Shock resistance | DIN EN 60068-2-27, 300 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 30 g, 10 ... 2000 Hz |
Approvals and certificates
| UL approval | E223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request |
| Maximum permissible ambient temperaturemax. 80 °C (max. 176 °F) | Maximum permissible ambient temperature |
| Maximum permissible ambient temperature | max. 80 °C (max. 176 °F) |
Ambient conditions
| Operating temperature | -40 ... 85 °C (-40 ... 185 °F) , cable, fixed installation-5 ... 85 °C (23 ... 185 °F) , cable, movable installation |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Material | |
| Housingpowder coated aluminumFlangealuminum, blankShaftRecessed hollow shaft Stainless steel | Housing |
| Housing | powder coated aluminum |
| Flange | aluminum, blank |
| Shaft | Recessed hollow shaft Stainless steel |
| Mass | < 300 g without cable |
| Rotational speed | max. 8000 min -1 for IP65 max. 6000 min -1 for IP67 |
| Moment of inertia | ≤ 60 gcm2 |
| Starting torque | ≤ 0.015 Nm for IP65 ≤ 0.025 Nm for IP67 |
| Shaft load | |
| Angle offsetmax. 1 °Axial offsetmax. 1 mm | Angle offset |
| Angle offset | max. 1 ° |
| Axial offset | max. 1 mm |

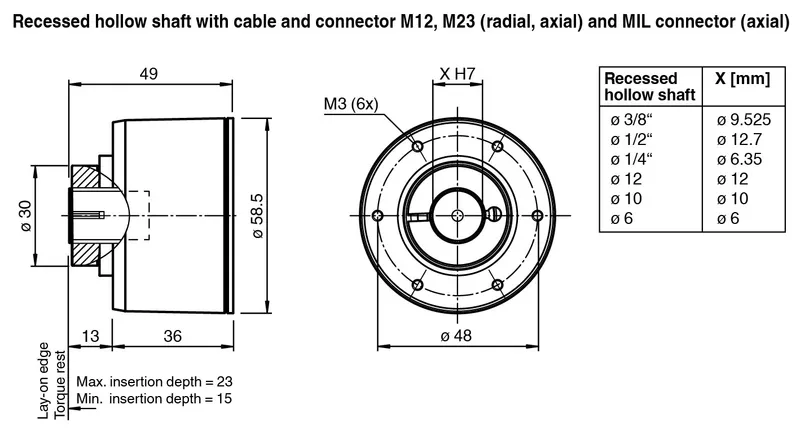

| Dimensions | |
| Diameter58.5 mm | Diameter |
| Diameter | 58.5 mm |
