SIMOCODE pro 3UF7 motor management and control devices Parts
Compare SIMOCODE pro 3UF7 motor management and control devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product type designation | consumed active power | Net Weight | height | depth |
|---|---|---|---|---|---|
| 3UF7011-1AU00-2 | pro V PN GP | 4.5 W | 0.308 kg | 111 mm | 124 mm |
| 3UF7011-1AU00-1 | pro V PN GP | 4.5 W | 0.307 kg | 111 mm | 124 mm |
| 3UF7011-1AU00-0 | pro V PN | 4.5 W | 0.307 kg | 111 mm | 124 mm |

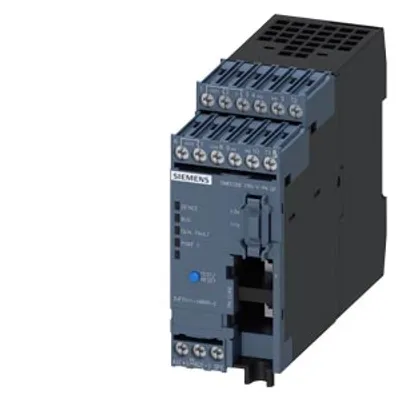

| 3UF7011-1AB00-2 | pro V PN GP | 3.6 W | 0.291 kg | 111 mm | 124 mm |

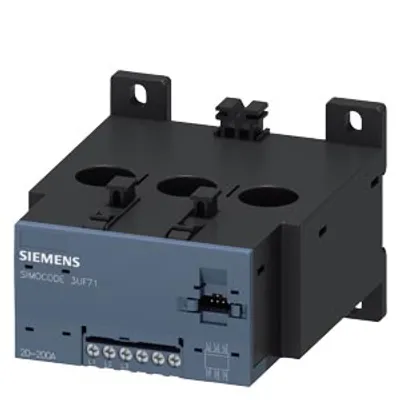

| 3UF7123-1AA01-0 | IUM | 0.5 W | 0.581 kg | 95 mm | 145 mm |

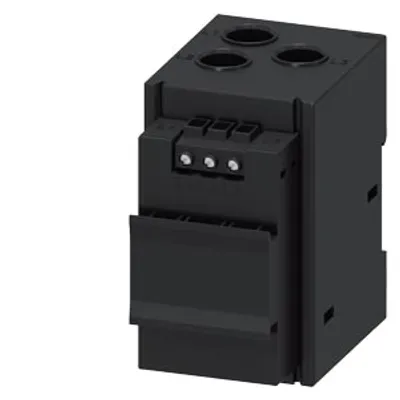

| 3UF7122-1AA01-0 | IUM | 0.5 W | 0.355 kg | 94 mm | 91 mm |
| 3UF7121-1AA01-0 | IUM | 0.5 W | 0.182 kg | 84 mm | 64 mm |

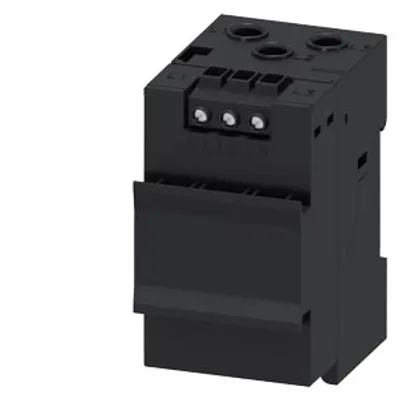

| 3UF7120-1AA01-0 | IUM | 0.5 W | 0.188 kg | 84 mm | 64 mm |

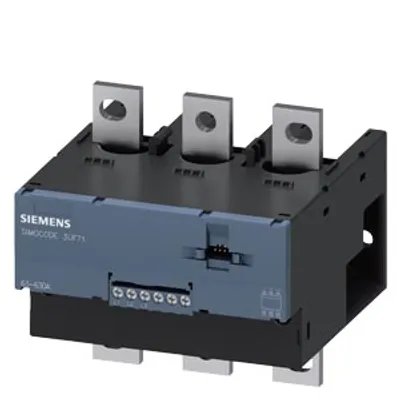

| 3UF7114-1BA01-0 | IUM | 0.5 W | 1.827 kg | 147 mm | 149 mm |

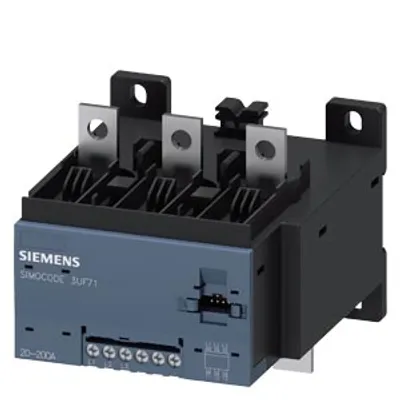

| 3UF7113-1BA01-0 | IUM | 0.5 W | 0.928 kg | 119 mm | 145 mm |
| 3UF7210-1BA01-0 | BBD | 0.3 W | 0.118 kg | 60 mm | 44 mm |

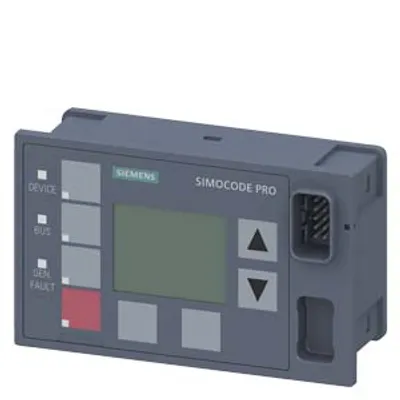

| 3UF7210-1AA01-0 | BBD | 0.3 W | 113.58 g | 60 mm | 44 mm |

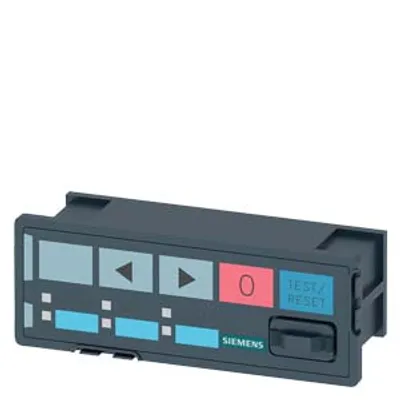

| 3UF7200-1AA01-0 | BB | 0.1 W | 0.086 kg | 36 mm | 44 mm |

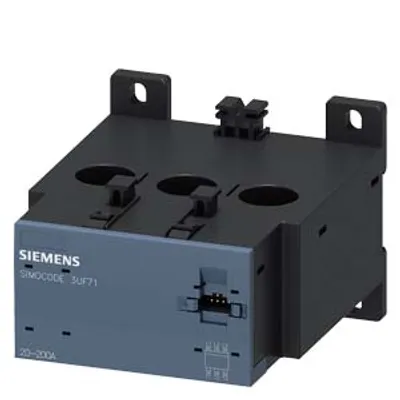

| 3UF7103-1AA00-0 | IM | 0.2 W | 516.9 g | 95 mm | 145 mm |

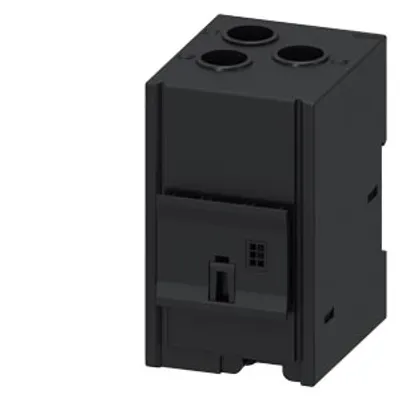

| 3UF7102-1AA00-0 | IM | 0.2 W | 280.08 g | 94 mm | 72 mm |

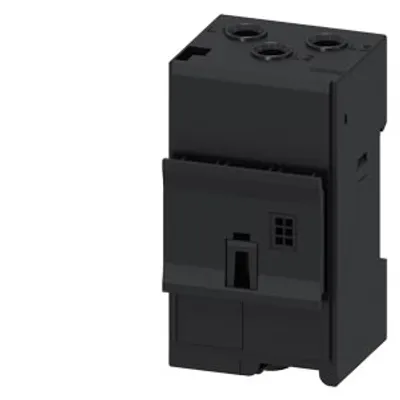

| 3UF7101-1AA00-0 | IM | 0.2 W | 0.144 kg | 84 mm | 45 mm |
| 3UF7100-1AA00-0 | IM | 0.2 W | 0.148 kg | 84 mm | 45 mm |

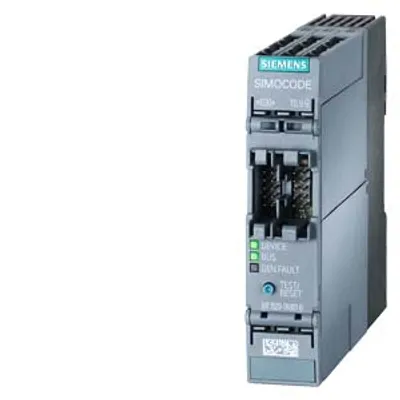

| 3UF7020-1AU01-0AX0 | pro S | 2.5 W | 0.224 kg | 100 mm | 124.5 mm |
| 3UF7011-1AB00-1 | pro V PN GP | 3.6 W | 0.293 kg | 111 mm | 124 mm |
| 3UF7011-1AB00-0 | pro V PN | 3.6 W | 0.29 kg | 111 mm | 124 mm |

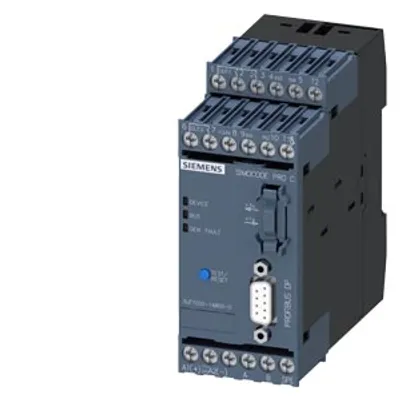

| 3UF7000-1AB00-0 | pro C | 2.3 W | 281.5 g | 111 mm | 95 mm |

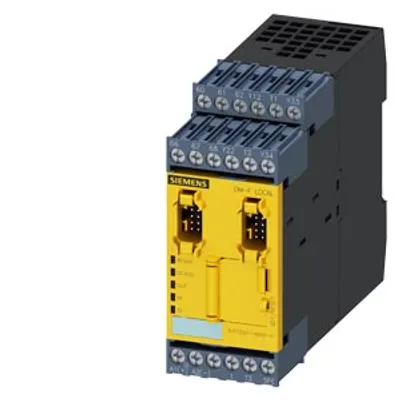

| 3UF7320-1AB00-0 | DM-FL | 3 W | 0.319 kg | 106 mm | 124 mm |
| 3UF7310-1AU00-0 | DM bi | 0.7 W | 134.85 g | 92 mm | 124 mm |

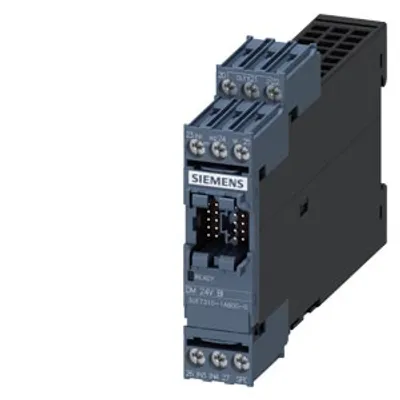

| 3UF7310-1AB00-0 | DM bi | 0.7 W | 0.12 kg | 92 mm | 124 mm |
Common to all listed parts
| EMC emitted interference according to IEC 60947-1 | class A |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
