Siemens 3UF7210-1BA01-0

Operator panel with display for SIMOCODE pro V(without PN GP) installation in control cabinet door or front…

MPN: 3UF7210-1BA01-0
Category: SIMOCODE pro 3UF7 motor management and control devices

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 3UF7210-1BA01-0?

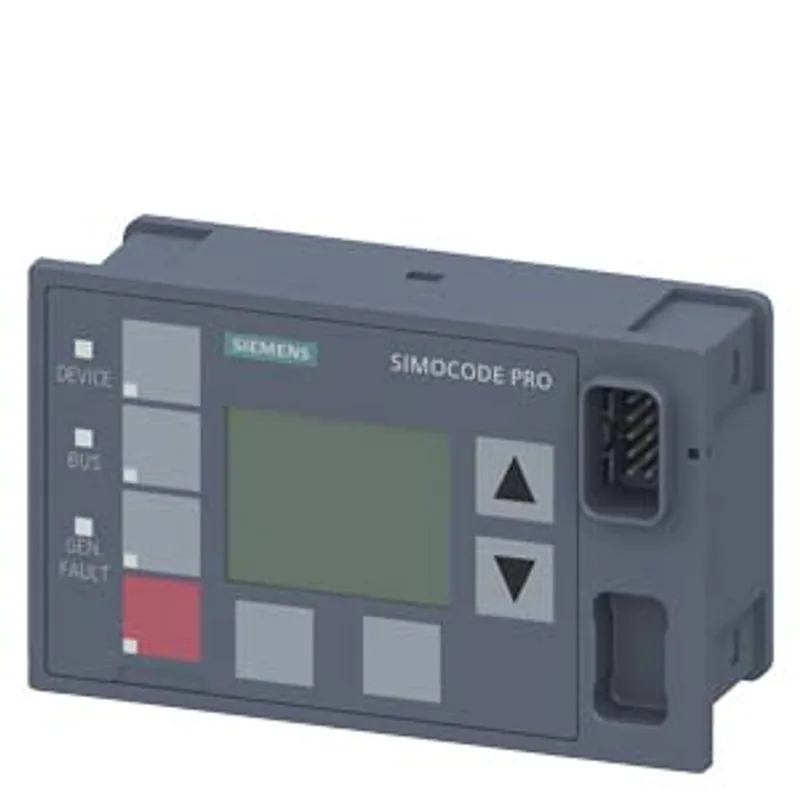

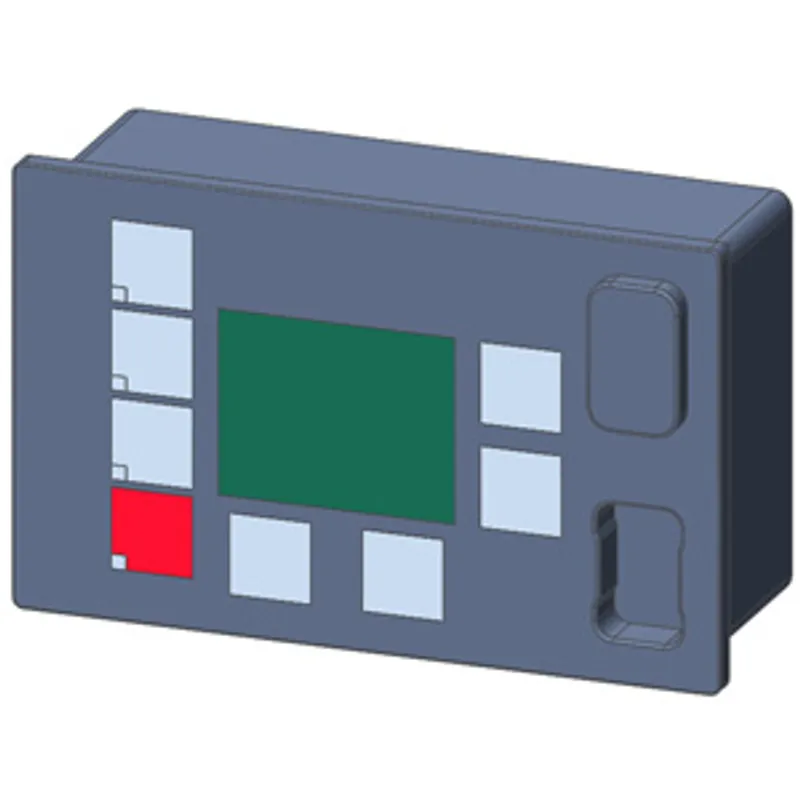

operator panel with display for SIMOCODE pro V(without PN GP) installation in control cabinet door or front plate; can be plugged onto basic unit or expansion modules, 7 LEDs for status display and 4 freely assignable buttons for manual control, languages en/zh-cn/ru/ko, color: titanium gray

Specifications

General

product brand name	SIMOCODE
product designation	operating module with display
product type designation	BBD

General technical data

national language on the display screen is supported	English / Chinese / Russian / Korean
color	titanium grey
certificate of suitability	CE / UL / CSA / CCC / C-Tick (RCM) / GOST / NOM / ABS / DNV / GL / LRS / RoHS
consumed active power	0.3 W
insulation voltage — rated value	300 V
surge voltage resistance rated value	4 000 V
protection class IP on the front	IP54
vibration resistance	1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g
reference code according to IEC 81346-2	A
Substance Prohibitance (day/month/year)	07/01/2006
SVHC substance name	Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8
Net Weight	0.118 kg

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1	class A
EMC immunity according to IEC 60947-1	corresponds to degree of severity 3
conducted interference — due to burst according to IEC 61000-4-4	1 kV
conducted interference — due to conductor-earth surge according to IEC 61000-4-5	2 kV
conducted interference — due to conductor-conductor surge according to IEC 61000-4-5	1 kV
field-based interference according to IEC 61000-4-3	10 V/m

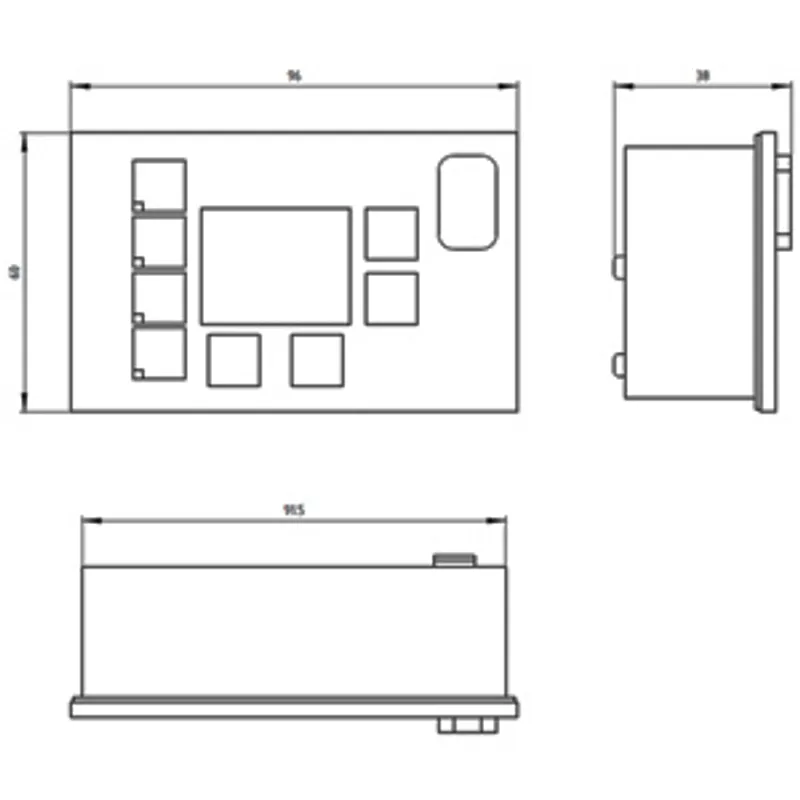

Installation/ mounting/ dimensions

mounting position	vertical
fastening method	front plate mounting
height	60 mm
width	96 mm
depth	44 mm

Ambient conditions

installation altitude at height above sea level — maximum	4 000 m
installation altitude at height above sea level — 1 maximum	2 000 m
installation altitude at height above sea level — 2 maximum	3 000 m; max. +50 °C (no protective separation)
installation altitude at height above sea level — 3 maximum	4 000 m; max. +40 °C (no protective separation)
ambient temperature — during operation	0 ... 60 °C
ambient temperature — during storage	-20 ... +70 °C
ambient temperature — during transport	-20 ... +70 °C
environmental category — during operation according to IEC 60721	3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
environmental category — during storage according to IEC 60721	1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
environmental category — during transport according to IEC 60721	2K2, 2C1, 2S1, 2M2

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3UF7210-1BA01-0PDF
