SIMOCODE pro 3UF7 motor management and control devices Parts
Compare SIMOCODE pro 3UF7 motor management and control devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | Net Weight | height | width | depth |
|---|---|---|---|---|---|

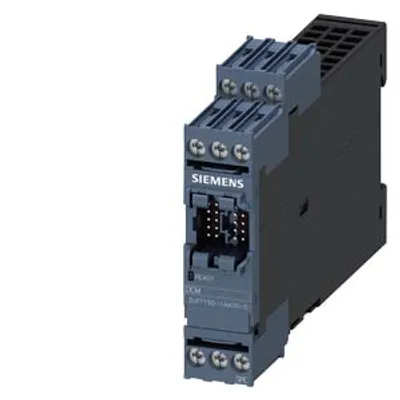

| 3UF7150-1AA00-0 | Decoupling module | 0.114 kg | 92 mm | 22.5 mm | 124 mm |

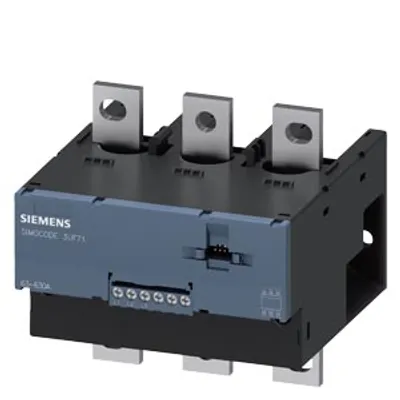

| 3UF7124-1BA01-0 | Current/voltage measuring module | 1.843 kg | 147 mm | 145 mm | 148 mm |

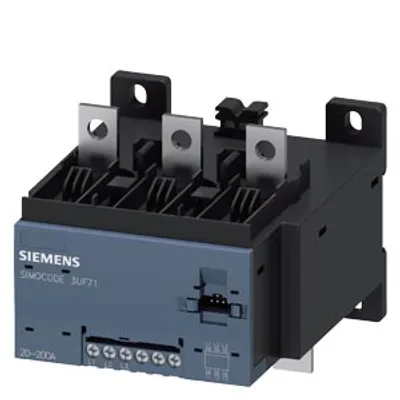

| 3UF7123-1BA01-0 | Current/voltage measuring module | 0.933 kg | 119 mm | 120 mm | 145 mm |
Common to all listed parts
| product component — input for thermistor connection | No |
| insulation voltage — for wires of main circuit according to IEC 60947-1 rated value | 6 kV |
| EMC emitted interference according to IEC 60947-1 | class A |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| number of outputs as contact-affected switching element | 0 |
