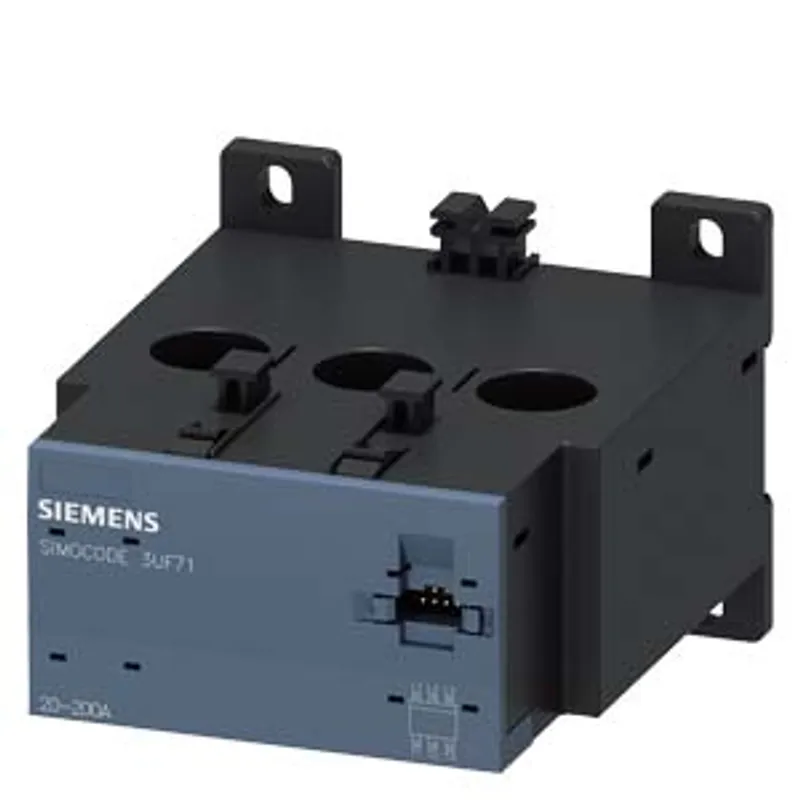

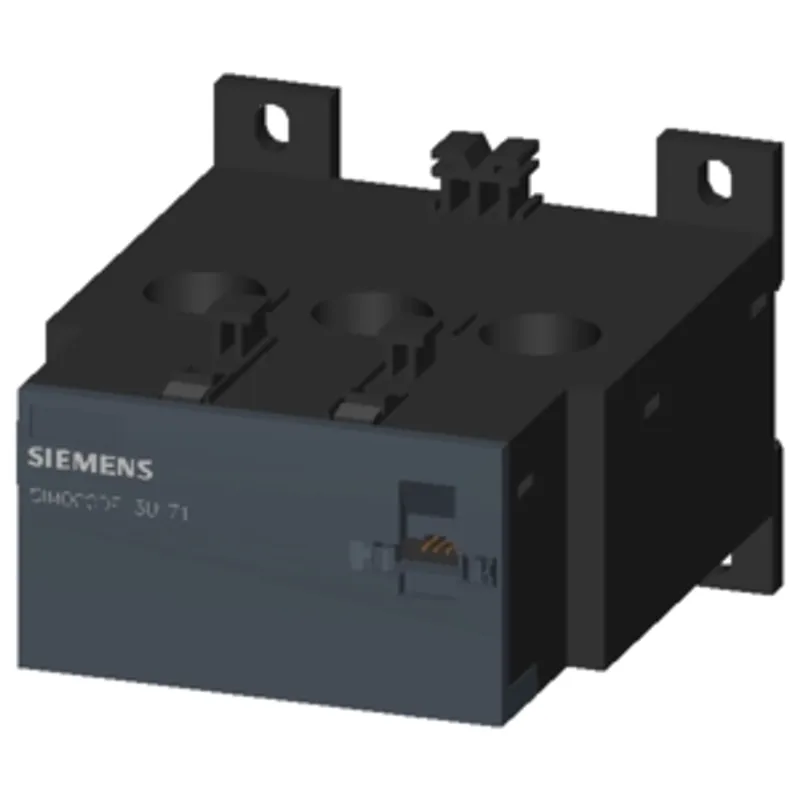

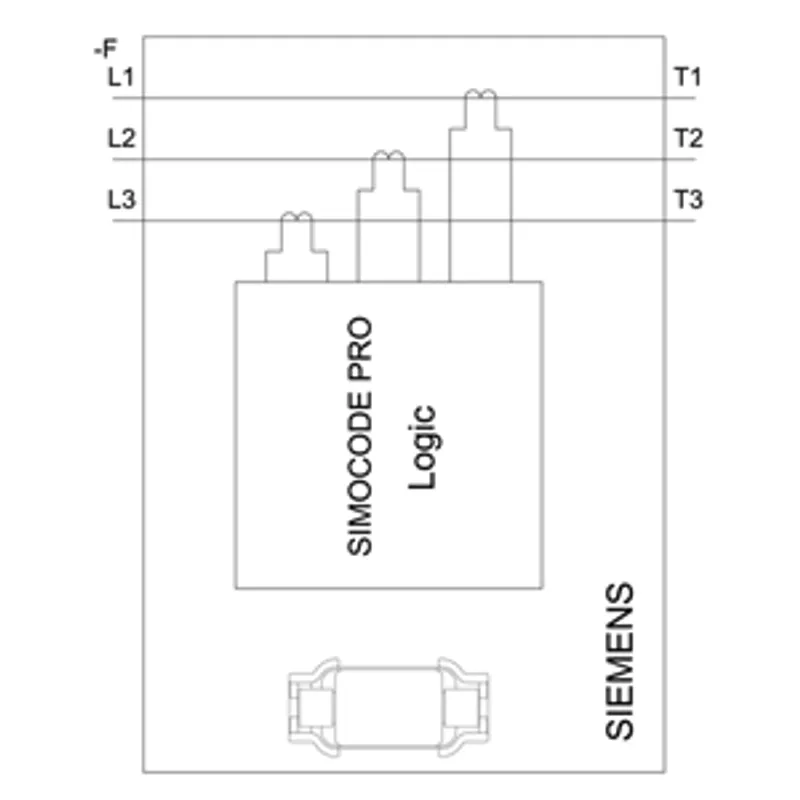

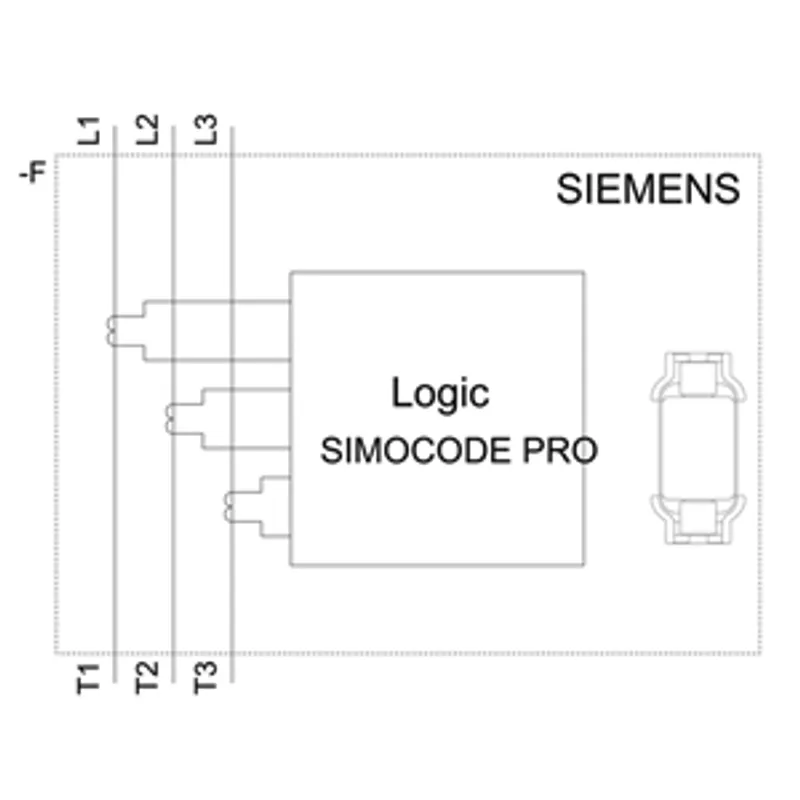

Siemens 3UF7103-1AA00-0

Current measuring module, Set current 20...200 A overall width 120 mm, straight-through transformer

MPN: 3UF7103-1AA00-0
Category: SIMOCODE pro 3UF7 motor management and control devices

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 3UF7103-1AA00-0?

Current measuring module, Set current 20...200 A overall width 120 mm, straight-through transformer

Specifications

General

product brand name	SIMOCODE
product designation	Current measuring module
product type designation	IM

General technical data

size of the circuit-breaker	S6
product function — current measurement	Yes
product function — voltage measurement	No
product function — active power measurement	No
product function — energy measurement	No
product function — frequency measurement	No
product component — input for thermistor connection	No
consumed active power	0.2 W
insulation voltage — with degree of pollution 3 at AC rated value	690 V
insulation voltage — for wires of main circuit according to IEC 60947-1 rated value	8 kV
surge voltage resistance rated value	8 000 V
shock resistance according to IEC 60068-2-27	15 g / 11 ms
vibration resistance	1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g
reference code according to IEC 81346-2	F
Substance Prohibitance (day/month/year)	07/01/2006
SVHC substance name	Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1
Net Weight	516.9 g

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1	class A
EMC immunity according to IEC 60947-1	corresponds to degree of severity 3
conducted interference — due to burst according to IEC 61000-4-4	2 kV
conducted interference — due to conductor-earth surge according to IEC 61000-4-5	2 kV
conducted interference — due to conductor-conductor surge according to IEC 61000-4-5	1 kV
field-based interference according to IEC 61000-4-3	10 V/m

Inputs/ Outputs

number of outputs as contact-affected switching element

Protective and monitoring functions

product function — power factor monitoring	No
product function — ground-fault monitoring	No
product function — voltage detection	No
trip class	CLASS 5E, 10E, 15E, 20E, 25E, 30E, 35E and 40E adjustable
product function — current detection	Yes
product function — overload protection	Yes

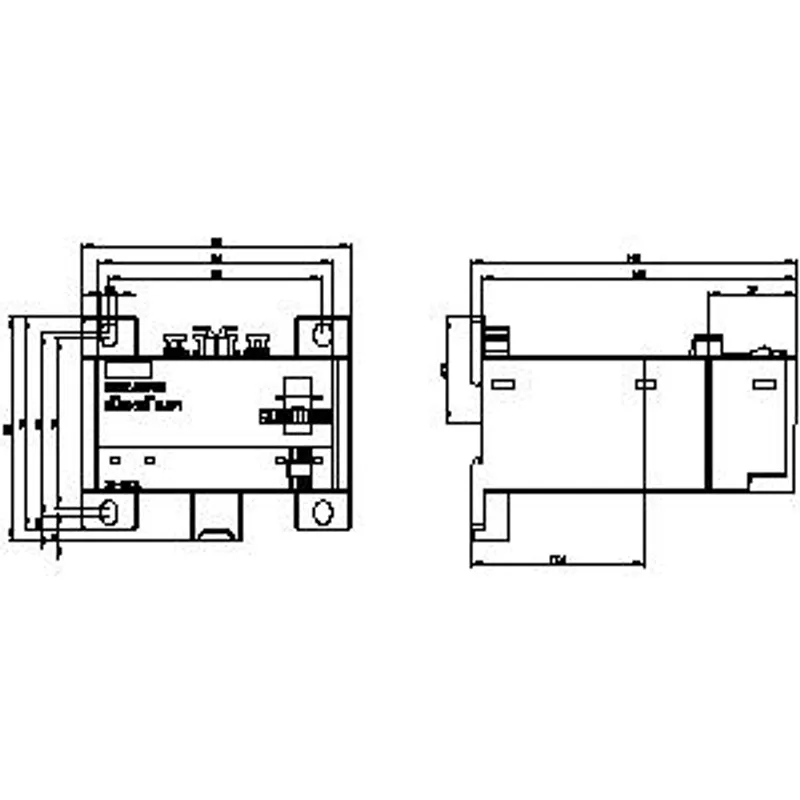

Installation/ mounting/ dimensions

mounting position	any
fastening method	screw and snap-on mounting
height	95 mm
width	120 mm
depth	145 mm
required spacing — top	30 mm
required spacing — bottom	30 mm
required spacing — left	0 mm
required spacing — right	0 mm
diameter of inlet opening	25 mm
diameter of inlet opening for current measurement	25 mm

Connections/ Terminals

type of electrical connection — for main current circuit

straight-through transformers

Ambient conditions

installation altitude at height above sea level — 1 maximum	2 000 m
installation altitude at height above sea level — 2 maximum	3 000 m; max. +50 °C (no protective separation)
installation altitude at height above sea level — 3 maximum	4 000 m; max. +40 °C (no protective separation)
ambient temperature — during operation	-25 ... +60 °C
ambient temperature — during storage	-40 ... +80 °C
ambient temperature — during transport	-40 ... +80 °C
environmental category — during operation according to IEC 60721	3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
environmental category — during storage according to IEC 60721	1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
environmental category — during transport according to IEC 60721	2K2, 2C1, 2S1, 2M2
relative humidity during operation	5 ... 95 %

Short-circuit protection

product function short circuit protection	No
Safety Integrity Level (SIL) according to IEC 61508	1

ATEX

certificate of suitability — according to ATEX directive 2014/34/EU	BVS 06 ATEX F001
certificate of suitability — according to UKCA	ITS21UKEX0464
explosion device group and category according to ATEX directive 2014/34/EU	II (2) G, II (2 ) D, I (M2)

Galvanic isolation

(electrically) protective separation according to IEC 60947-1

All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)

Main circuit

number of poles for main current circuit	3
adjustable current response value current of the current-dependent overload release	20 ... 200 A
operating voltage — at AC — at 50 Hz rated value	110 ... 690 V
operating voltage — at AC — at 60 Hz rated value	110 ... 690 V
operating frequency rated value	50 ... 60 Hz

Control circuit/ Control

type of voltage

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3UF7103-1AA00-0PDF
