Complete Enclosures Parts
Compare Complete Enclosures
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | width | depth | ventilation cross section inlet can be used | ventilation cross section outlet can be used | Net Weight |
|---|---|---|---|---|---|
| 8MF1098-3VR4 | 900 mm | 800 mm | 816 cm² | 1 004 cm² | 153.76 kg |
| 8MF1098-3BS5 | 900 mm | 800 mm | 0 cm² | 0 cm² | 193.66 kg |
| 8MF1098-3BS4 | 900 mm | 800 mm | 0 cm² | 0 cm² | 193.56 kg |

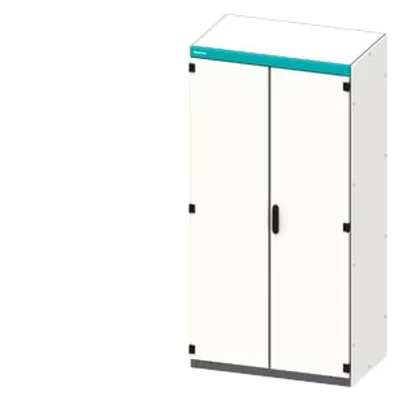

| 8MF1096-3BS5 | 900 mm | 600 mm | 0 cm² | 0 cm² | 174.46 kg |
| 8MF1096-3BS4 | 900 mm | 600 mm | 0 cm² | 0 cm² | 174.36 kg |
| 8MF1096-3BR5 | 900 mm | 600 mm | 0 cm² | 0 cm² | 144.66 kg |

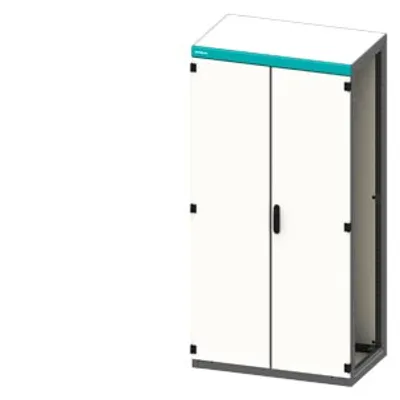

| 8MF1096-3BR4 | 900 mm | 600 mm | 0 cm² | 0 cm² | 144.56 kg |
| 8MF1866-3BR4 | 600 mm | 600 mm | 0 cm² | 0 cm² | 93 kg |

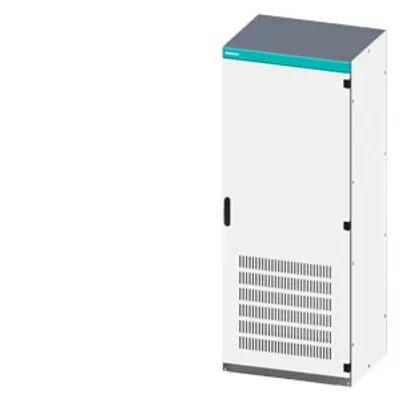

| 8MF1865-3VS4 | 600 mm | 500 mm | 646 cm² | 285 cm² | 103 kg |

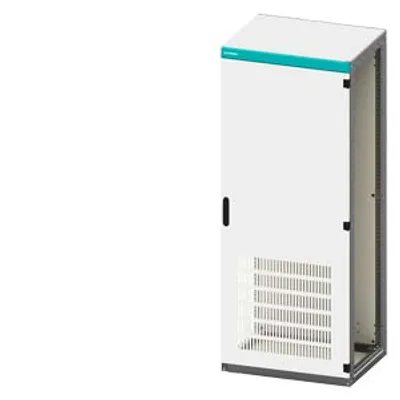

| 8MF1865-3VR4 | 600 mm | 500 mm | 646 cm² | 285 cm² | 92 kg |

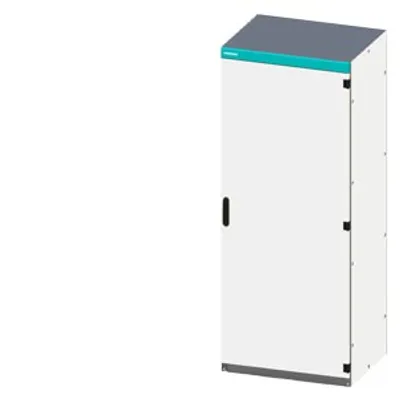

| 8MF1865-3BS5 | 600 mm | 500 mm | 0 cm² | 0 cm² | 103 kg |
| 8MF1865-3BS4 | 600 mm | 500 mm | 0 cm² | 0 cm² | 103 kg |
| 8MF1865-3BR5 | 600 mm | 500 mm | 0 cm² | 0 cm² | 92 kg |

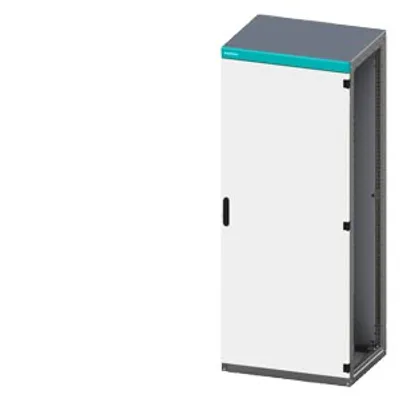

| 8MF1865-3BR4 | 600 mm | 500 mm | 0 cm² | 0 cm² | 92 kg |
| 8MF1884-3BS4 | 800 mm | 400 mm | 0 cm² | 0 cm² | 131 kg |
| 8MF1884-3BR5 | 800 mm | 400 mm | 0 cm² | 0 cm² | 113 kg |
| 8MF1884-3BR4 | 800 mm | 400 mm | 0 cm² | 0 cm² | 113 kg |
| 8MF1880-3VS4 | 800 mm | 1 000 mm | 986 cm² | 1 148 cm² | 176 kg |

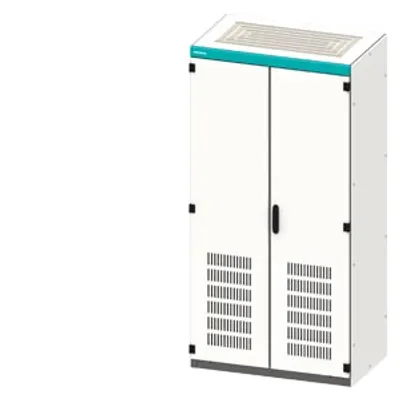

| 8MF1290-3VS4 | 900 mm | 1 000 mm | 816 cm² | 1 339 cm² | 227.64 kg |

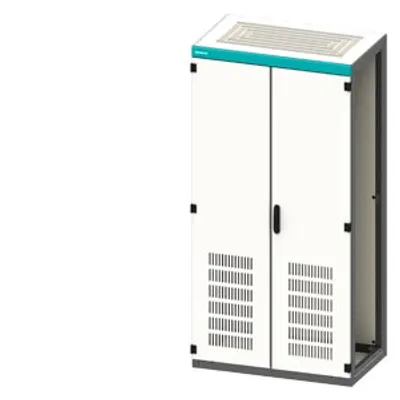

| 8MF1290-3VR4 | 900 mm | 1 000 mm | 816 cm² | 1 339 cm² | 172.84 kg |
| 8MF1286-3BS5 | 800 mm | 600 mm | 0 cm² | 0 cm² | 173.68 kg |
| 8MF1286-3BS4 | 800 mm | 600 mm | 0 cm² | 0 cm² | 173.58 kg |
| 8MF1286-3BR5 | 800 mm | 600 mm | 0 cm² | 0 cm² | 140.88 kg |
| 8MF1200-3VS4 | 1 000 mm | 1 000 mm | 952 cm² | 1 531 cm² | 236.8 kg |
Common to all listed parts
| product designation | Empty control cabinet enclosure |
| design of the product | according to IEC 62208 |
| design of the surface | powder-coated |
| design of the product EMC version | No |
| operating resource protection class | Safety class 1 |
| suitability for installation for metric dimensions | Yes |
| suitability for integration flush mounting | No |
| suitability for use for outside use | No |
