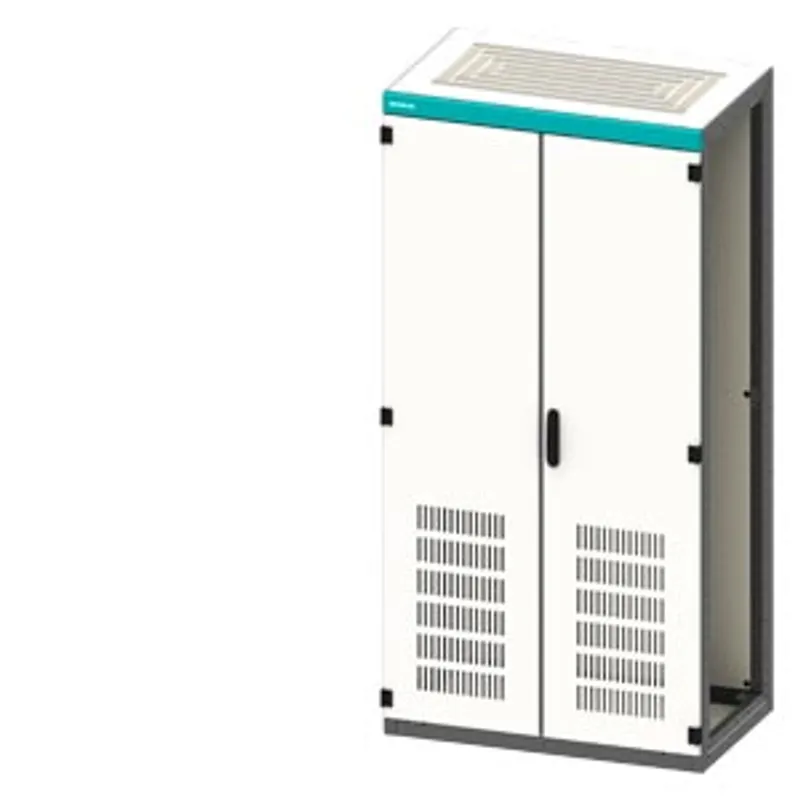

Siemens 8MF1098-3VR4

SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208

MPN: 8MF1098-3VR4
Category: Complete Enclosures

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 8MF1098-3VR4?

SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, with Ventilation openings IP20, H: 2000 mm, W: 900 mm, T: 800 mm

Specifications

Model

product brand name	SIVACON
product designation	Empty control cabinet enclosure
design of the product	according to IEC 62208
design of the surface	powder-coated
design of the product EMC version	No

Protection class

protection class IP	IP20
operating resource protection class	Safety class 1

Suitability

suitability for installation for metric dimensions	Yes
suitability for integration surface-mounted installation	Yes
suitability for integration flush mounting	No
suitability for use for outside use	No

Appearance

RAL color number	7 035
RAL color number (similar)	7 035
color	light grey

Product details

product component — ventilation door	Yes
product component — mounting plate	Yes
product component — rear door	No
product component — viewing door	No
product component — height-adjustable mounting plate	Yes
product feature of the enclosure housing can be lined up	Yes

Number

number of locking devices	0
number of doors	2

Mechanical Design

height	2 000 mm
width	900 mm
depth	800 mm
fastening method — 19-inch installation	No
fastening method — floor mounting	Yes
fastening method — wall mounting	No
ventilation cross section inlet can be used	816 cm²
ventilation cross section outlet can be used	1 004 cm²
Net Weight	153.76 kg
material	steel

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8MF1098-3VR4PDF
