Complete Enclosures Parts
Compare Complete Enclosures
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | width | depth | ventilation cross section inlet can be used | ventilation cross section outlet can be used | Net Weight |
|---|---|---|---|---|---|
| 8MF1020-3BR4 | 1 200 mm | 1 000 mm | 0 cm² | 0 cm² | 194.14 kg |
| 8MF1025-3VS4 | 1 200 mm | 500 mm | 1 292 cm² | 718 cm² | 190 kg |
| 8MF1025-3VR4 | 1 200 mm | 500 mm | 1 292 cm² | 718 cm² | 166 kg |
| 8MF1025-3BS5 | 1 200 mm | 500 mm | 0 cm² | 0 cm² | 190 kg |

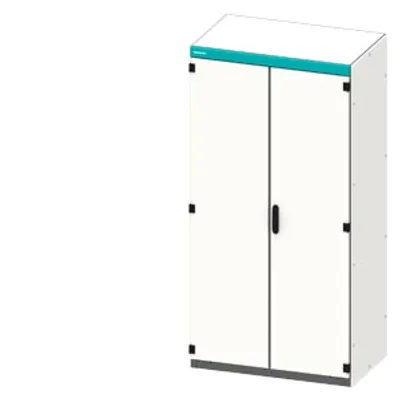

| 8MF1025-3BS4 | 1 200 mm | 500 mm | 0 cm² | 0 cm² | 190 kg |
| 8MF1208-3BS4 | 1 000 mm | 800 mm | 0 cm² | 0 cm² | 216.7 kg |
| 8MF1208-3BR5 | 1 000 mm | 800 mm | 0 cm² | 0 cm² | 173 kg |
| 8MF1208-3BR4 | 1 000 mm | 800 mm | 0 cm² | 0 cm² | 172.9 kg |
| 8MF1225-3BR5 | 1 200 mm | 500 mm | 0 cm² | 0 cm² | 185 kg |
| 8MF1225-3BR4 | 1 200 mm | 500 mm | 0 cm² | 0 cm² | 185 kg |

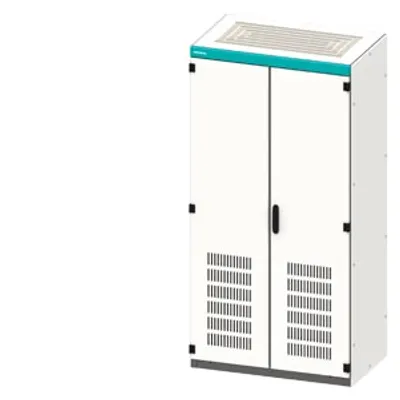

| 8MF1224-3VS4 | 1 200 mm | 400 mm | 1 292 cm² | 479 cm² | 205.12 kg |
| 8MF1895-3VS4 | 900 mm | 500 mm | 816 cm² | 502 cm² | 140 kg |

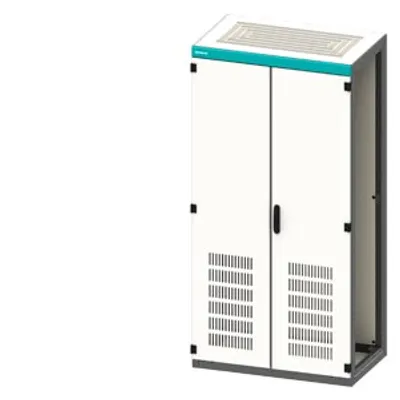

| 8MF1895-3VR4 | 900 mm | 500 mm | 816 cm² | 502 cm² | 129 kg |
| 8MF1298-3VR4 | 900 mm | 800 mm | 816 cm² | 1 004 cm² | 165.14 kg |
| 8MF1298-3BS5 | 900 mm | 800 mm | 0 cm² | 0 cm² | 209.04 kg |
| 8MF1298-3BS4 | 900 mm | 800 mm | 0 cm² | 0 cm² | 208.94 kg |

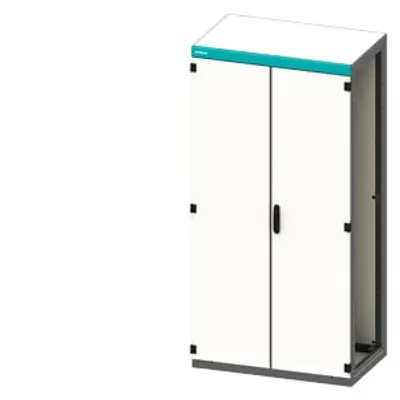

| 8MF1298-3BR5 | 900 mm | 800 mm | 0 cm² | 0 cm² | 165.24 kg |
| 8MF1298-3BR4 | 900 mm | 800 mm | 0 cm² | 0 cm² | 165.14 kg |

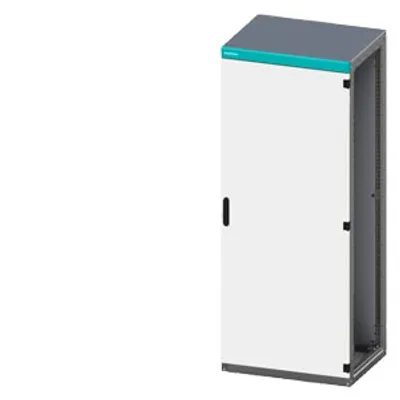

| 8MF1845-3BR4 | 400 mm | 500 mm | 0 cm² | 0 cm² | 66 kg |
| 8MF1844-3VS4 | 400 mm | 400 mm | 306 cm² | 93 cm² | 83 kg |

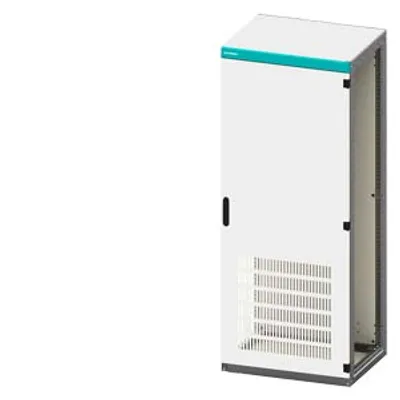

| 8MF1844-3VR4 | 400 mm | 400 mm | 306 cm² | 93 cm² | 65 kg |

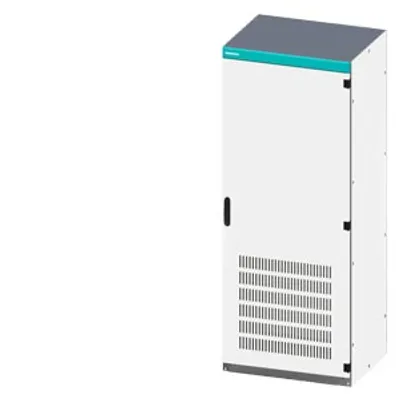

| 8MF1260-3VS4 | 600 mm | 1 000 mm | 646 cm² | 765 cm² | 181.66 kg |
| 8MF1260-3VR4 | 600 mm | 1 000 mm | 646 cm² | 765 cm² | 126.86 kg |

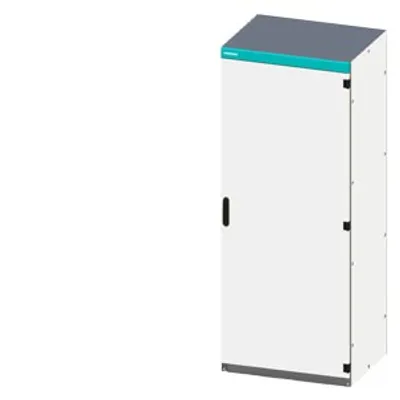

| 8MF1260-3BS5 | 600 mm | 1 000 mm | 0 cm² | 0 cm² | 181.76 kg |
Common to all listed parts
| product designation | Empty control cabinet enclosure |
| design of the product | according to IEC 62208 |
| design of the surface | powder-coated |
| design of the product EMC version | No |
| operating resource protection class | Safety class 1 |
| suitability for installation for metric dimensions | Yes |
| suitability for integration flush mounting | No |
| suitability for use for outside use | No |
