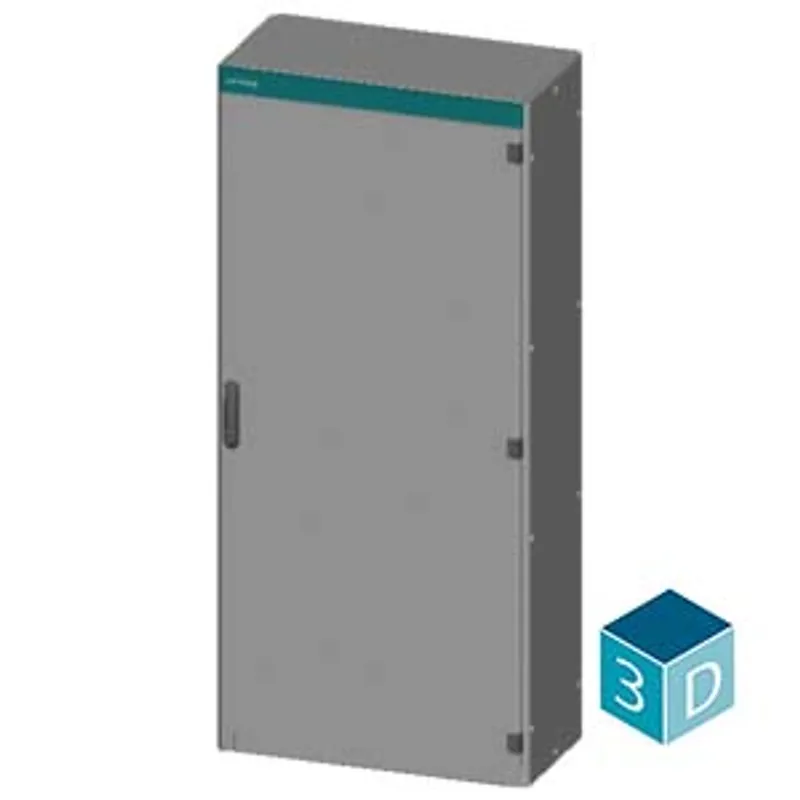

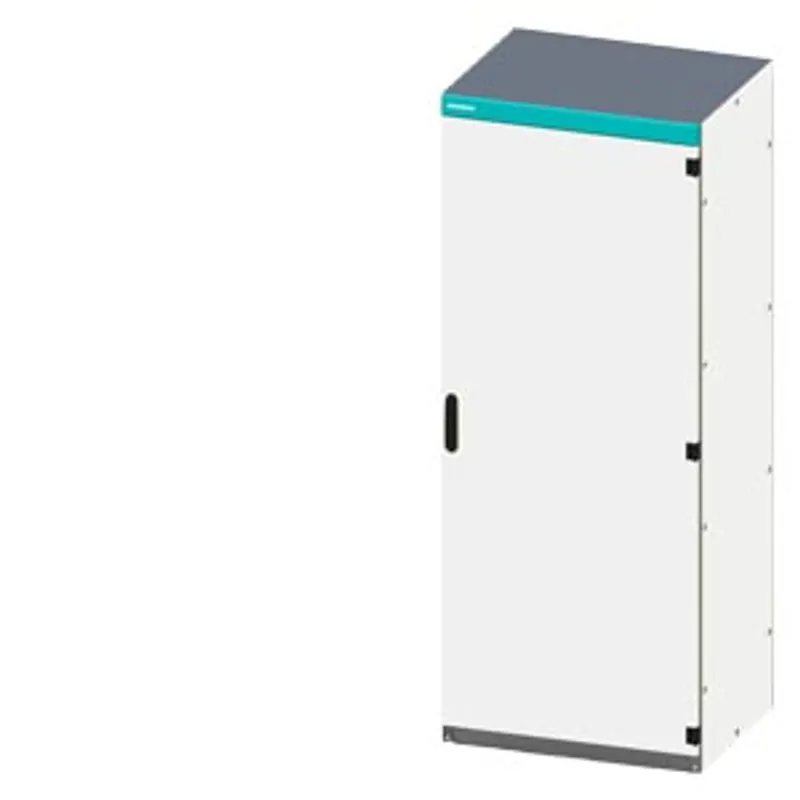

Siemens 8MF1884-3BS4
SIVACON, Control panel Empty enclosure, according to IEC 62208, IP40, H: 1800 mm, W: 800 mm, T: 400 mm
- MPN
- 8MF1884-3BS4
- Category
- Complete Enclosures
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 8MF1884-3BS4?
SIVACON, Control panel Empty enclosure, according to IEC 62208, IP40, H: 1800 mm, W: 800 mm, T: 400 mm
Specifications
Model
| product brand name | SIVACON |
| product designation | Empty control cabinet enclosure |
| design of the product | according to IEC 62208 |
| design of the surface | powder-coated |
| design of the product EMC version | No |
Protection class
| protection class IP | IP40 |
| operating resource protection class | Safety class 1 |
Suitability
| suitability for installation for metric dimensions | Yes |
| suitability for integration surface-mounted installation | No |
| suitability for integration flush mounting | No |
| suitability for use for outside use | No |
Appearance
| RAL color number | 7 035 |
| RAL color number (similar) | 7 035 |
| color | light grey |
Product details
| product component — ventilation door | No |
| product component — mounting plate | Yes |
| product component — rear door | No |
| product component — viewing door | No |
| product component — height-adjustable mounting plate | Yes |
| product feature of the enclosure housing can be lined up | No |
Number
| number of locking devices | 0 |
| number of doors | 1 |
Mechanical Design
| height | 1 800 mm |
| width | 800 mm |
| depth | 400 mm |
| fastening method — 19-inch installation | No |
| fastening method — floor mounting | Yes |
| fastening method — wall mounting | No |
| ventilation cross section inlet can be used | 0 cm² |
| ventilation cross section outlet can be used | 0 cm² |
| Net Weight | 131 kg |
| material | steel |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8MF1884-3BS4: frequently asked questions
When can 8MF1884-3BS4 be shipped?
8MF1884-3BS4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8MF1884-3BS4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8MF1884-3BS4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8MF1884-3BS4, subject to availability and destination.
