Complete Enclosures Parts
Compare Complete Enclosures
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | width | depth | ventilation cross section inlet can be used | ventilation cross section outlet can be used | Net Weight |
|---|---|---|---|---|---|
| 8MF1200-3VR4 | 1 000 mm | 1 000 mm | 952 cm² | 1 531 cm² | 182 kg |
| 8MF1200-3BS5 | 1 000 mm | 1 000 mm | 0 cm² | 0 cm² | 236.9 kg |
| 8MF1200-3BS4 | 1 000 mm | 1 000 mm | 0 cm² | 0 cm² | 236.8 kg |

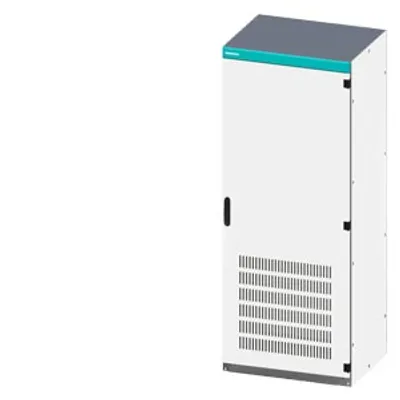

| 8MF1244-3VS4 | 400 mm | 400 mm | 306 cm² | 93 cm² | 107 kg |
| 8MF1244-3BS5 | 400 mm | 400 mm | 0 cm² | 0 cm² | 107 kg |
| 8MF1244-3BS4 | 400 mm | 400 mm | 0 cm² | 0 cm² | 107 kg |

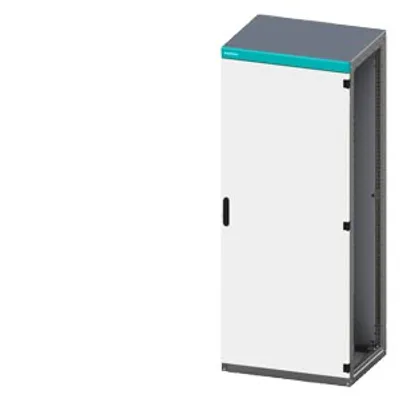

| 8MF1244-3BR5 | 400 mm | 400 mm | 0 cm² | 0 cm² | 80 kg |
| 8MF1244-3BR4 | 400 mm | 400 mm | 0 cm² | 0 cm² | 80 kg |

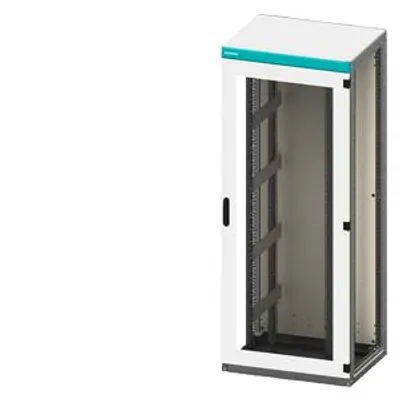

| 8MF1088-3DR4 | 800 mm | 800 mm | 0 cm² | 0 cm² | 156 kg |
| 8MF1088-3BS5 | 800 mm | 800 mm | 0 cm² | 0 cm² | 177.79 kg |

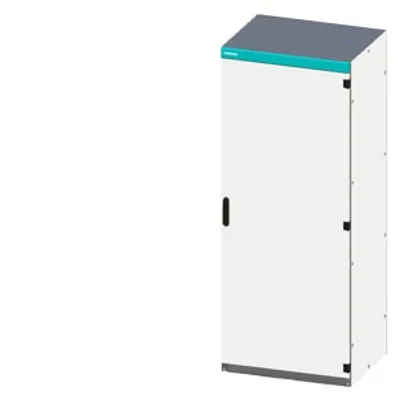

| 8MF1088-3BS4 | 800 mm | 800 mm | 0 cm² | 0 cm² | 177.69 kg |
| 8MF1088-3BR5 | 800 mm | 800 mm | 0 cm² | 0 cm² | 137.99 kg |
| 8MF1088-3BR4 | 800 mm | 800 mm | 0 cm² | 0 cm² | 137.89 kg |
| 8MF1060-3BR4 | 600 mm | 1 000 mm | 0 cm² | 0 cm² | 119.27 kg |
| 8MF1066-3VS4 | 600 mm | 600 mm | 646 cm² | 380 cm² | 150.77 kg |
| 8MF1066-3VR4 | 600 mm | 600 mm | 646 cm² | 380 cm² | 106.97 kg |
| 8MF1066-3BS5 | 600 mm | 600 mm | 0 cm² | 0 cm² | 136.87 kg |
| 8MF1066-3BS4 | 600 mm | 600 mm | 0 cm² | 0 cm² | 136.77 kg |
| 8MF1066-3BR5 | 600 mm | 600 mm | 0 cm² | 0 cm² | 107.07 kg |
| 8MF1044-3VS4 | 400 mm | 400 mm | 306 cm² | 93 cm² | 97 kg |

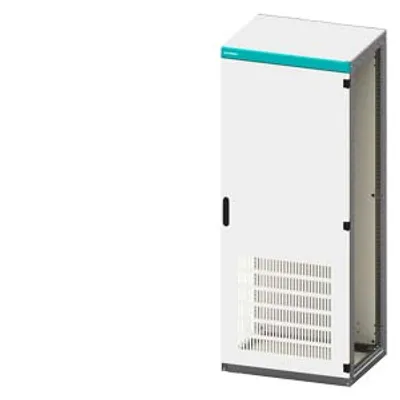

| 8MF1044-3VR4 | 400 mm | 400 mm | 306 cm² | 93 cm² | 77 kg |
| 8MF1044-3BS5 | 400 mm | 400 mm | 0 cm² | 0 cm² | 99 kg |
| 8MF1020-3BS4 | 1 200 mm | 1 000 mm | 0 cm² | 0 cm² | 243.94 kg |
| 8MF1020-3BR5 | 1 200 mm | 1 000 mm | 0 cm² | 0 cm² | 194.24 kg |
Common to all listed parts
| product designation | Empty control cabinet enclosure |
| design of the product | according to IEC 62208 |
| design of the surface | powder-coated |
| design of the product EMC version | No |
| operating resource protection class | Safety class 1 |
| suitability for installation for metric dimensions | Yes |
| suitability for integration flush mounting | No |
| suitability for use for outside use | No |
