Reactors Parts

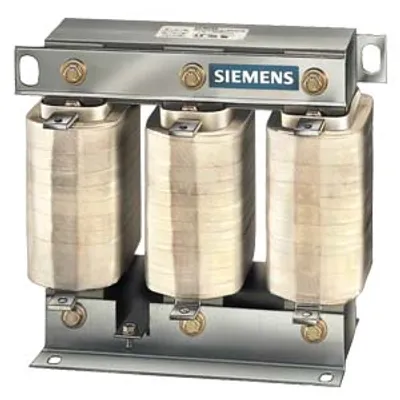

Siemens 4EP4000-3DS00 – Line commutating reactor for rectifier; phases: 3; Un1(V): 400; Ithmax 1(A) / F1(Hz): 80 /50; I LN (A): 72

Siemens

Line commutating reactor for rectifier; phases: 3

Siemens 4EP4000-2US00 – Line reactor for frequency converter; phases: 3; Un1(V): 480; Ithmax 1(A) / F1(Hz): 100 /60; I LN (A): 90

Siemens

Line reactor for frequency converter; phases: 3

Siemens 4EP3700-4DS00 – Line commutating reactor for rectifier; phases: 3; Un1(V): 400; Ithmax 1(A) / F1(Hz): 45 /50; I LN (A): 40.5

Siemens

Line commutating reactor for rectifier; phases: 3

Siemens 4EP3600-2US00 – Line reactor for frequency converter; phases: 3; Un1(V): 500; Ithmax 1(A) / F1(Hz): 16 /50; I LN (A): 14.4

Siemens

Line reactor for frequency converter; phases: 3

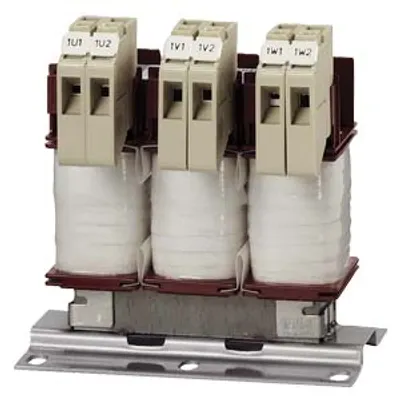

Siemens 4EP3500-0US00 – Line reactor for frequency converter; phases: 3; Un1(V): 480; Ithmax 1(A) / F1(Hz): 16 /60; I LN (A): 14.4

Siemens

Line reactor for frequency converter; phases: 3

Siemens 4EP3400-3US00 – Line reactor for frequency converter; phases: 3; Un1(V): 500; Ithmax 1(A) / F1(Hz): 8 /50; I LN (A): 7.2

Siemens

Line reactor for frequency converter; phases: 3

Siemens 4EP3400-2US00 – Line reactor for frequency converter; phases: 3; Un1(V): 480; Ithmax 1(A) / F1(Hz): 9.1 /60; I LN (A): 8.19

Siemens

Line reactor for frequency converter; phases: 3

Siemens 4EP3200-1US00 – Line reactor for frequency converter; phases: 3; Un1(V): 480; Ithmax 1(A) / F1(Hz): 6.3 /60; I LN (A): 5.67

Siemens

Line reactor for frequency converter; phases: 3

Siemens 4EM6100-2CB00 – Line commutating reactor for rectifier; phases: 1; Un1(V): 400; Ithmax 1(A) / F1(Hz): 28 /50; I LN (A): 25.2

Siemens

Line commutating reactor for rectifier; phases: 1

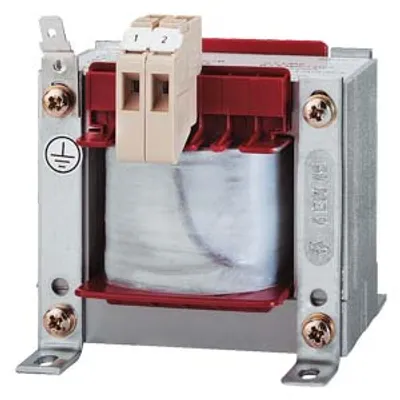

Siemens 4EM4700-8CB00 – Line commutating reactor for rectifier; phases: 1; Un1(V): 230; Ithmax 1(A) / F1(Hz): 20 /50; I LN (A): 18

Siemens

Line commutating reactor for rectifier; phases: 1

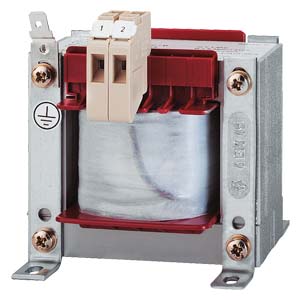

Siemens 4EM4700-0CB00 – Line commutating reactor for rectifier; phases: 1; Un1(V): 230; Ithmax 1(A) / F1(Hz): 8 /50; I LN (A): 7.2

Siemens

Line commutating reactor for rectifier; phases: 1

Siemens 4EP3701-8DS00 – Line commutating reactor for rectifier; phases: 3; Un1(V): 400; Ithmax 1(A) / F1(Hz): 35.5 /50

Siemens

Line commutating reactor for rectifier; phases: 3

Siemens 4EP3701-6DS00 – Line commutating reactor for rectifier; phases: 3; Un1(V): 400; Ithmax 1(A) / F1(Hz): 28 /50; I LN (A): 25

Siemens

Line commutating reactor for rectifier; phases: 3

Siemens 4EP3701-5DS00 – Line commutating reactor for rectifier; phases: 3; Un1(V): 400; Ithmax 1(A) / F1(Hz): 25 /50; I LN (A): 22.5

Siemens

Line commutating reactor for rectifier; phases: 3

Siemens 4EM4911-8CB00 – Line commutating reactor for rectifier; phases: 1; Un1(V): 400; Ithmax 1(A) / F1(Hz): 11.2 /50

Siemens

Line commutating reactor for rectifier; phases: 1

Siemens 4EU2722-1CA00-0AA0 – Line commutating reactor for rectifier; phases: 3; Un1(V): 500; Ithmax 1(A) / F1(Hz): 180 /50; I LN (A): 162

Siemens

4EU2722-1CA00-0AA0

Line commutating reactor for rectifier; phases: 3

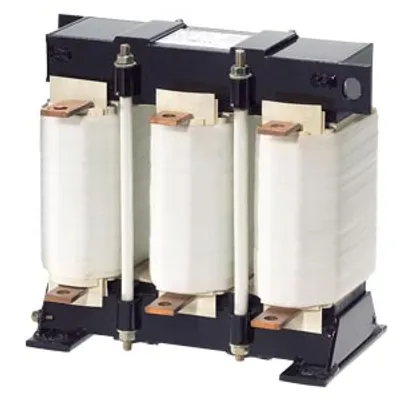

Siemens 4EU3652-8UA00-0AA0 – Line reactor for frequency converter; phases: 3; Un1(V): 480; Ithmax 1(A) / F1(Hz): 720 /60; I LN (A): 648

Siemens

4EU3652-8UA00-0AA0

Line reactor for frequency converter; phases: 3

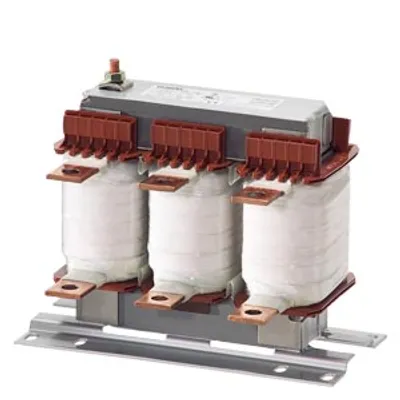

Siemens 4EP3800-1US00 – Line reactor for frequency converter; phases: 3; Un1(V): 500; Ithmax 1(A) / F1(Hz): 50 /50; I LN (A): 45

Siemens

Line reactor for frequency converter; phases: 3

Siemens 4EP3601-3DS00 – Line commutating reactor for rectifier; phases: 3; Un1(V): 400; Ithmax 1(A) / F1(Hz): 16 /50; I LN (A): 14.4

Siemens

Line commutating reactor for rectifier; phases: 3

Siemens 4EP3600-5US00 – Line reactor for frequency converter; phases: 3; Un1(V): 480; Ithmax 1(A) / F1(Hz): 28 /60; I LN (A): 25.2

Siemens

Line reactor for frequency converter; phases: 3

Siemens 4EP3600-4US00 – Line reactor for frequency converter; phases: 3; Un1(V): 480; Ithmax 1(A) / F1(Hz): 18 /60; I LN (A): 16.2

Siemens

Line reactor for frequency converter; phases: 3

Siemens 4EP3600-3US00 – Line reactor for frequency converter; phases: 3; Un1(V): 500; Ithmax 1(A) / F1(Hz): 22.4 /50; I LN (A): 20.16

Siemens

Line reactor for frequency converter; phases: 3

Siemens 4EU3022-7BA00-0AA0 – Line commutating reactor for rectifier; phases: 3; Un1(V): 500; Ithmax 1(A) / F1(Hz): 355 /50

Siemens

4EU3022-7BA00-0AA0

Line commutating reactor for rectifier; phases: 3

Siemens 4EU2752-1UB00-0AA0 – Line reactor for frequency converter; phases: 3; Un1(V): 480; Ithmax 1(A) / F1(Hz): 160 /60; I LN (A): 144

Siemens

4EU2752-1UB00-0AA0

Line reactor for frequency converter; phases: 3

Compare Reactors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	operational current at AC rated value	current at AC maximum	inductivity rated value	power loss [W] of the coil	power loss [W] of the iron core
4EP4000-3DS00	72 A	80 A	0.00028 H	80 W	26.2 W
4EP4000-2US00	90 A	100 A	0.00014 H	73 W	30 W
4EP3700-4DS00	40.5 A	45 A	0.00031 H	49 W	12 W
4EP3600-2US00	14.4 A	16 A	0.0012 H	49.6 W	17 W
4EP3500-0US00	14.4 A	16 A	0.00088 H	31 W	10 W
4EP3400-3US00	7.2 A	8 A	0.0023 H	23 W	11 W
4EP3400-2US00	8.19 A	9.1 A	0.0016 H	25 W	10 W
4EP3200-1US00	5.67 A	6.3 A	0.0022 H	17 W	5.6 W
4EM6100-2CB00	25.2 A	28 A	0.0017 H	12.6 W	31.8 W
4EM4700-8CB00	18 A	20 A	0.00064 H	8.62 W	11 W
4EM4700-0CB00	7.2 A	8 A	0.0035 H	7.22 W	11 W
4EP3701-8DS00	31.9 A	35.5 A	0.00062 H	55 W	9 W
4EP3701-6DS00	25 A	28 A	0.00079 H	53 W	9 W
4EP3701-5DS00	22.5 A	25 A	0.00089 H	53 W	9 W
4EM4911-8CB00	10.08 A	11.2 A	0.0043 H	14.6 W	14.4 W
4EU2722-1CA00-0AA0	162 A	180 A	0.00016 H	174 W	76 W
4EU3652-8UA00-0AA0	648 A	720 A	1.9E-5 H	300 W	135 W
4EP3800-1US00	45 A	50 A	0.00037 H	52 W	13 W
4EP3601-3DS00	14.4 A	16 A	0.0014 H	39 W	6.7 W
4EP3600-5US00	25.2 A	28 A	0.0005 H	37.4 W	7.7 W
4EP3600-4US00	16.2 A	18 A	0.00078 H	37 W	15 W
4EP3600-3US00	20.16 A	22.4 A	0.00082 H	49.6 W	3.8 W
4EU3022-7BA00-0AA0	319.5 A	355 A	7.7E-5 H	220 W	117 W
4EU2752-1UB00-0AA0	144 A	160 A	0.00018 H	172 W	87 W

Common to all listed parts

type of voltage	AC
ambient temperature rated value	40 °C
protection class IP	IP00
