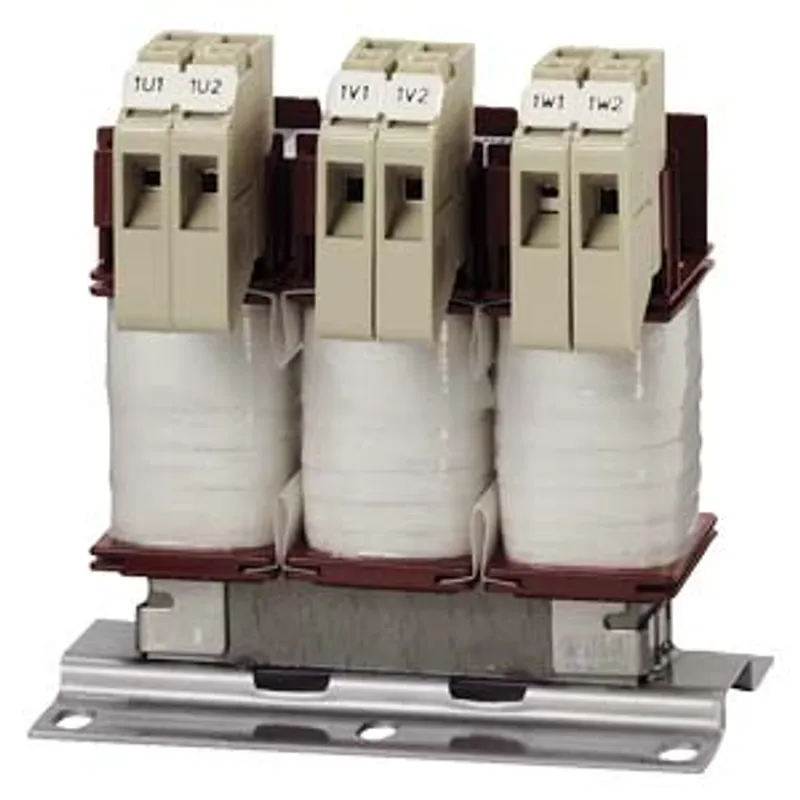

Siemens 4EP3500-0US00
Line reactor for frequency converter; phases: 3; Un1(V): 480; Ithmax 1(A) / F1(Hz): 16 /60; I LN (A): 14.4
- MPN
- 4EP3500-0US00
- Category
- Reactors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 4EP3500-0US00?
line reactor for frequency converter; phases: 3; Un1(V): 480; Ithmax 1(A) / F1(Hz): 16 /60; I LN (A): 14.4; UK(%): 2; LN(MH): 0.881; temperature rise/insulation class: 40 /B; IP00; connection: screw connection; EN 61558-2-20 >UL/CSA-recognized reactor<
Specifications
General technical data
| product designation | Netzdrossel f. FU |
| phase number | 3 |
| type of voltage | AC |
| operating voltage rated value | 400, 480 V |
| operating frequency rated value | 50 ... 60 Hz |
| operational current at AC rated value | 14.4 A |
| current at AC maximum | 16 A |
| inductivity rated value | 0.00088 H |
| relative inductive drop in voltage for rated value of the current, voltage and frequency | 2 % |
| power loss [W] of the coil | 31 W |
| power loss [W] of the iron core | 10 W |
Mechanical data
| type of electrical connection for main current circuit | screw-type terminals |
| width | 0.148 m |
| height | 0.139 m |
| depth | 0.068 m |
Ambient conditions
| thermal class according to IEC 60085 | B |
| ambient temperature rated value | 40 °C |
| protection class IP | IP00 |
