Reactors Parts
Compare Reactors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | operational current at AC rated value | current at AC maximum | inductivity rated value | power loss [W] of the coil | power loss [W] of the iron core |
|---|---|---|---|---|---|
| 4EU2722-7BA00-0AA0 | 252 A | 280 A | 7.5E-5 H | 174 W | 74 W |
| 4EU2552-8UA00-0AA0 | 202 A | 224 A | 6.2E-5 H | 134 W | 52 W |

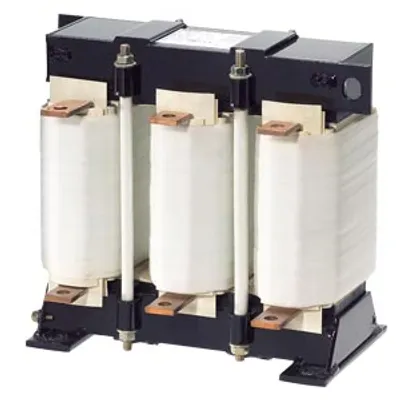

| 4EU2552-4UA00-0AA0 | 180 A | 200 A | 7E-5 H | 134 W | 52 W |
| 4EU2522-2BA00-0AA0 | 126 A | 140 A | 0.00015 H | 135 W | 55 W |
| 4EU2452-2UA00-0AA0 | 144 A | 160 A | 8.8E-5 H | 123 W | 30 W |
| 4EP4002-7DS00 | 63.9 A | 71 A | 0.00031 H | 80 W | 24.9 W |

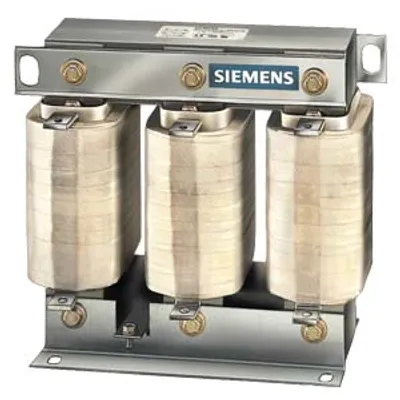

| 4EP4001-3US00 | 81.9 A | 91 A | 0.00016 H | 78 W | 21.5 W |
| 4EU3921-7BA00-0A | — | — | 3.5E-5 | 375 | 230 |
| 4EU3022-2BA00-0AA0 | 360 A | 400 A | 5.6E-5 H | 220 W | 102 W |
Common to all listed parts
| phase number | 3 |
| type of voltage | AC |
| type of electrical connection for main current circuit | flat connector |
| protection class IP | IP00 |
