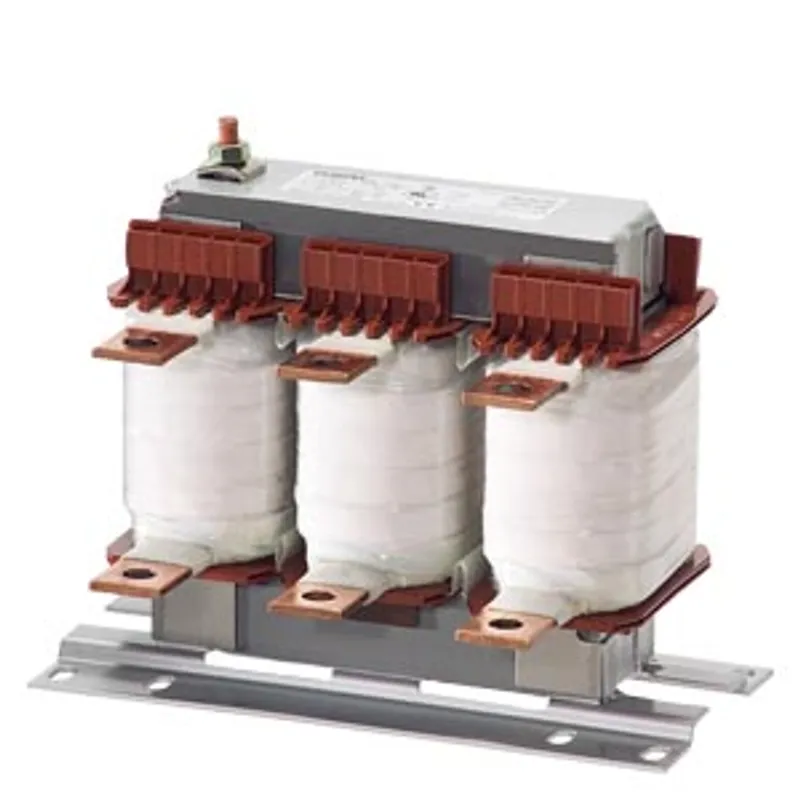

Siemens 4EP3800-1US00
Line reactor for frequency converter; phases: 3; Un1(V): 500; Ithmax 1(A) / F1(Hz): 50 /50; I LN (A): 45
- MPN
- 4EP3800-1US00
- Category
- Reactors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 4EP3800-1US00?
line reactor for frequency converter; phases: 3; Un1(V): 500; Ithmax 1(A) / F1(Hz): 50 /50; I LN (A): 45; UK(%): 2; LN(MH): 0.368; temperature rise/insulation class: 40 /B; IP00; connection: screw connection; EN 61558-2-20 >UL/CSA-recognized reactor<
Specifications
General technical data
| product designation | Netzdrossel f. FU |
| phase number | 3 |
| type of voltage | AC |
| operating voltage rated value | 500 V |
| operating frequency rated value | 50 Hz |
| operational current at AC rated value | 45 A |
| current at AC maximum | 50 A |
| inductivity rated value | 0.00037 H |
| relative inductive drop in voltage for rated value of the current, voltage and frequency | 2 % |
| power loss [W] of the coil | 52 W |
| power loss [W] of the iron core | 13 W |
Mechanical data
| type of electrical connection for main current circuit | screw-type terminals |
| width | 0.178 m |
| height | 0.153 m |
| depth | 0.12 m |
Ambient conditions
| thermal class according to IEC 60085 | B |
| ambient temperature rated value | 40 °C |
| protection class IP | IP00 |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
4EP3800-1US00: frequently asked questions
When can 4EP3800-1US00 be shipped?
4EP3800-1US00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4EP3800-1US00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4EP3800-1US00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4EP3800-1US00, subject to availability and destination.
