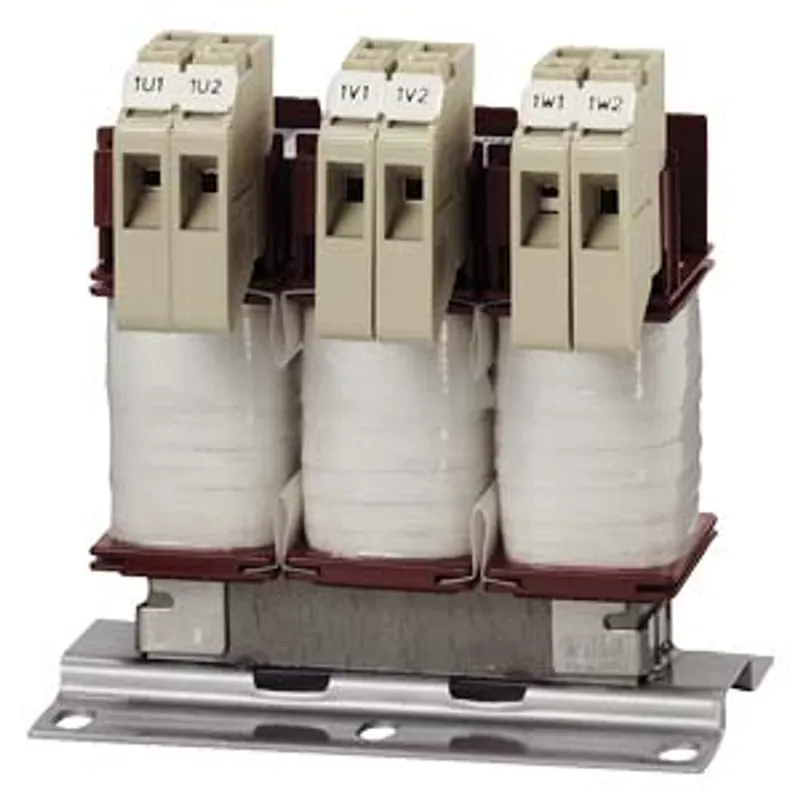

Siemens 4EP3701-8DS00
Line commutating reactor for rectifier; phases: 3; Un1(V): 400; Ithmax 1(A) / F1(Hz): 35.5 /50
- MPN
- 4EP3701-8DS00
- Category
- Reactors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 4EP3701-8DS00?
line commutating reactor for rectifier; phases: 3; Un1(V): 400; Ithmax 1(A) / F1(Hz): 35.5 /50; I LN (A): 31.9; UK(%): 4; LN(MH): 0.622; temperature rise/insulation class: 40 /B; IP00; connection: screw connection; EN 61558-2-20 >UL/CSA-recognized reactor<
Specifications
General technical data
| product designation | Kommut.-Drossel f. Stromrichter |
| phase number | 3 |
| type of voltage | AC |
| operating voltage rated value | 400 V |
| operating frequency rated value | 50 Hz |
| operational current at AC rated value | 31.9 A |
| current at AC maximum | 35.5 A |
| current at DC rated value | 43.5 A |
| peak current | 44 A |
| inductivity rated value | 0.00062 H |
| relative inductive drop in voltage for rated value of the current, voltage and frequency | 4 % |
| power loss [W] of the coil | 55 W |
| power loss [W] of the iron core | 9 W |
Mechanical data
| type of electrical connection for main current circuit | screw-type terminals |
| width | 0.178 m |
| height | 0.153 m |
| depth | 0.105 m |
Ambient conditions
| thermal class according to IEC 60085 | B |
| ambient temperature rated value | 40 °C |
| protection class IP | IP00 |
