Altivar 08 Parts
Schneider Electric

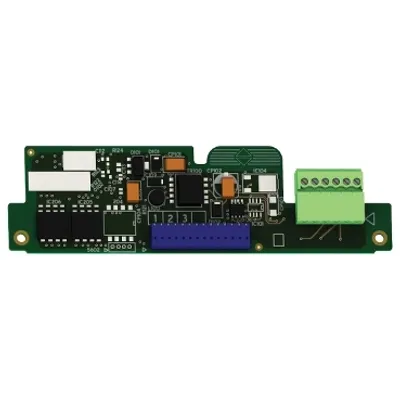

VW3A3401Encoder interface card, Altivar, differential outpt, with RS422 compatible, 5V DC
Compare Altivar 08
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | Line current | Nominal output current | Maximum transient current | Power dissipation in W |
|---|---|---|---|---|---|
| ATV08PU18M2X | Variable speed drive | 6 A at 230 V, Isc = 1 kA | 4.6 A 4 kHz 230 V motor | 6.3 A for 60 s | 43 W at nominal load |
| ATV08PU09M2X | Variable speed drive | 6 A at 230 V, Isc = 1 kA | 2.4 A 4 kHz 230 V motor | 3.6 A for 60 s | 23 W at nominal load |
| ATV08PU18M2 | Variable speed drive | 8.6 A at 230 V, Isc = 1 kA | 3.6 A 4 kHz 230 V motor | 5.4 A for 60 s | 37 W at nominal load |
| ATV08PU09M2 | Variable speed drive | 5.3 A at 230 V, Isc = 1 kA | 2.1 A 4 kHz 230 V motor | 3.1 A for 60 s | 20.5 W at nominal load |
| ATV08PU05M2 | Variable speed drive | 2.7 A at 230 V, Isc = 1 kA | 1.1 A 4 kHz 230 V motor | 1.32 A for 60 s | 15 W at nominal load |
| ATV08PU05M2X | Variable speed drive | 6 A at 230 V, Isc = 1 kA | 1.6 A 4 kHz 230 V motor | 2.4 A for 60 s | 14.5 W at nominal load |
| VW3A3409 | Encoder interface card | — | — | — | — |

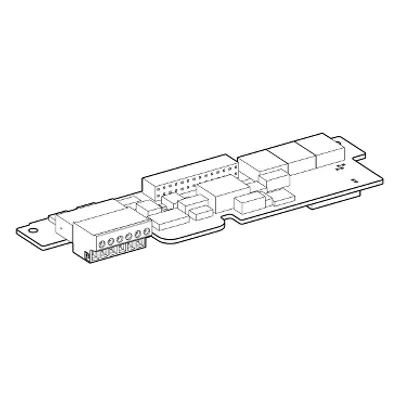

| VW3A3407 | Encoder interface card | — | — | — | — |
| VW3A3401 | Encoder interface card | — | — | — | — |

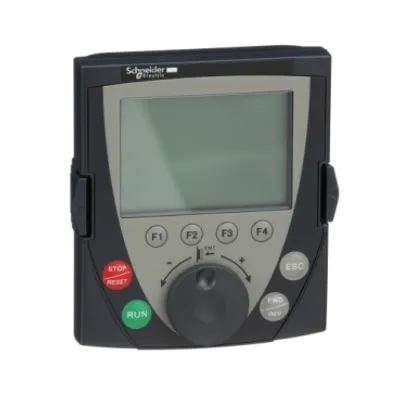

| VW3A1101 | Graphic terminal | — | — | — | — |
