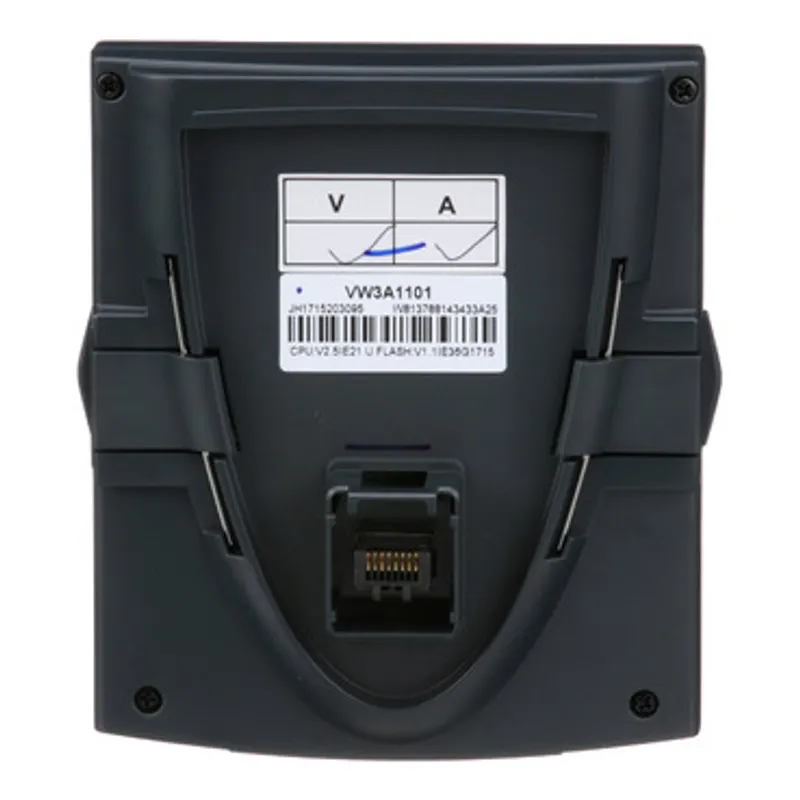

Schneider Electric VW3A1101
Remote graphic terminal, Altivar, 240 x 160pixels, IP54
- MPN
- VW3A1101
- EAN
- 3389118069305
- Category
- Altivar 08
€47.70excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3A1101?
This remote terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP54. This terminal is used to locate the Human-Machine Interface of the Altivar drive remotely on the door of an enclosure. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels. It weighs 180g. It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc), save and download configurations, 4 configuration files can be saved. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately.
Specifications
Specifications
| Range of product | Altivar |
| Range compatibility | Altivar 312, Altivar 61, Altivar Lift, Altivar 32, Altivar Machine ATV320, Altivar 312 Solar, Altivar 212, Altivar 71, Altivar 61Q, Altivar 71Q |
| Accessory / separate part category | Display and signalling accessories |
| Product or component type | Graphic terminal |
| Accessory / separate part type | Display terminal |
| Accessory / separate part destination | Variable speed drive |
| Product specific application | To control, adjust and configure the drive, To save and download configurations, To display the current values |
| IP degree of protection | IP54 |
| Mounting location | On the door of an enclosure |
| User language | Italian, English, French, Spanish, German, Chinese |
| Messages display capacity | 8 lines |
| Pixel resolution | 240 x 160 |
| Net weight | 0.145 kg |
| Ambient air temperature for operation | -15…50 °C |
Packaging
| Package 1 | 1 PCE, 23.500 cm × 17.500 cm × 7.800 cm (L × W × H), 306.000 g |
| Package 2 | 12 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 4.813 kg |
| Package 3 | 64 P06, 80.000 cm × 60.000 cm × 105.000 cm (L × W × H), 36.490 kg |
