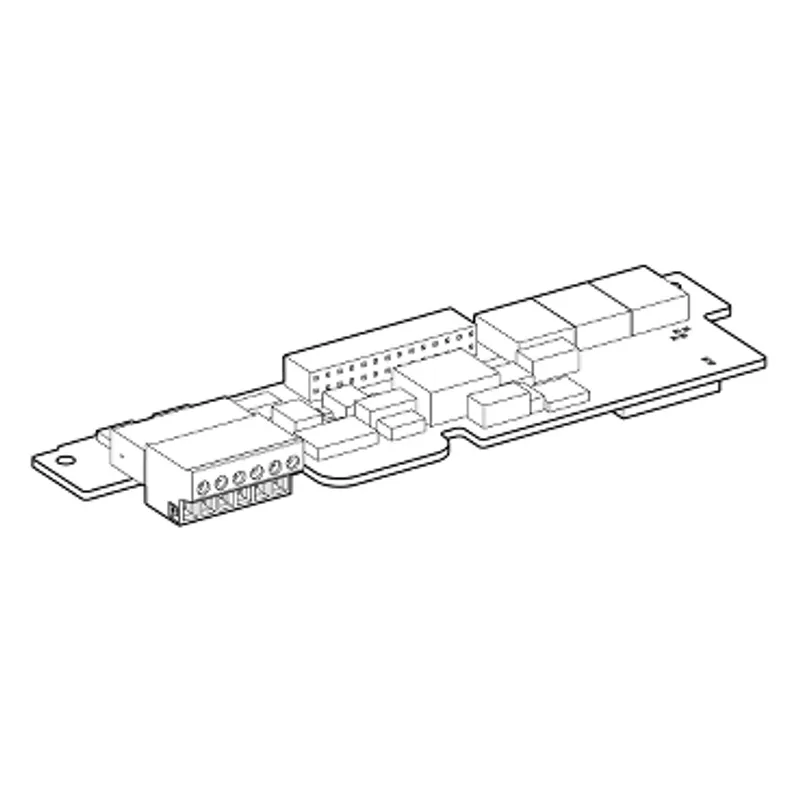

Schneider Electric VW3A3409
Universal encoder interface card, Altivar, 5 to 12V, 0.2A
- MPN
- VW3A3409
- EAN
- 3389119214209
- Category
- Altivar 08
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VW3A3409 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3A3409?
This universal encoder interface card is an option for variable speed drives of Altivar range. It is compatible with Altivar 71. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 200g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Encoder interface card |
| Range compatibility | Altivar 71, Altivar 71Q, Altivar Lift |
| Encoder type | SinCos Hiperface, EnDat 2.2, SSI |
| [Us] rated supply voltage | 5 V (voltage limits: 5…5.5 V), 8 V (voltage limits: 8…8.5 V), 12 V (voltage limits: 12…12.5 V) |
| Product compatibility | ATV71H...M3383, ATV71H...M3X383, ATV71H...N4383 |
| Maximum supply current | 0.2 A |
| Protection type | Short-circuit protection, Overload protection |
| Maximum cable distance between devices | 50 m |
| Speed feedback resolution | 2exp(13) maximum |
| Clock frequency | 500 kHz fixed |
| Output type | SinCos 10000 lines maximum, EnDat 2.1 25 bits maximum, SSI Gray or binary with no, odd or even parity, configurable, SinCos Hiperface 10000 lines maximum |
| Electrical connection | Terminal, connection capacity: 0.5 mm² (AWG 20) <25 m cable length, encoder, 100 mA at 4.75 V, Terminal, connection capacity: 0.5 mm² (AWG 20) <25 m cable length, encoder, 100 mA at 7.75 V, Terminal, connection capacity: 0.5 mm² (AWG 20) <25 m cable length, encoder, 100 mA at 14.75 V, Terminal, connection capacity: 0.75 mm² (AWG 18) <50 m cable length, encoder, 100 mA at 4.75 V, Terminal, connection capacity: 0.75 mm² (AWG 18) <50 m cable length, encoder, 100 mA at 7.75 V, Terminal, connection capacity: 0.75 mm² (AWG 18) <50 m cable length, encoder, 100 mA at 14.75 V, Terminal, connection capacity: 1 mm² (AWG 17) <25 m cable length, encoder, 200 mA at 4.75 V, Terminal, connection capacity: 1 mm² (AWG 17) <25 m cable length, encoder, 200 mA at 7.75 V, Terminal, connection capacity: 1 mm² (AWG 17) <25 m cable length, encoder, 200 mA at 14.75 V, Terminal, connection capacity: 1.5 mm² (AWG 15) <50 m cable length, encoder, 200 mA at 4.75 V, Terminal, connection capacity: 1.5 mm² (AWG 15) <50 m cable length, encoder, 200 mA at 7.75 V, Terminal, connection capacity: 1.5 mm² (AWG 15) <50 m cable length, encoder, 200 mA at 14.75 V |
| Net weight | 0.2 kg |
Packaging
| Package 1 | 1 PCE, 23.500 cm × 17.000 cm × 8.000 cm (L × W × H), 156.000 g |
| Package 2 | 7 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 1.566 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A3409: frequently asked questions
Can I still buy the VW3A3409 now that it is discontinued?
Yes. Schneider Electric has discontinued the VW3A3409, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can VW3A3409 be shipped?
VW3A3409 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A3409 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A3409 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A3409, subject to availability and destination.
