Schneider Electric VW3A3407

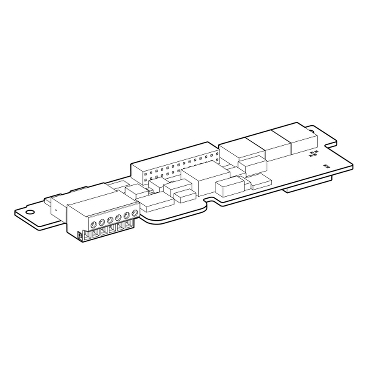

Encoder interface card, Altivar, with push-pull outputs, 24V DC
- MPN
- VW3A3407
- EAN
- 3389118067264
- Category
- Altivar 08
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3A3407?
This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with push-pull outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Encoder interface card |
| Range compatibility | Altivar 61Q, Altivar 71Q, Altivar 71, Altivar 61, Altivar Lift |
| Discrete output type | Push-pull |
| [Us] rated supply voltage | 24 V DC (voltage limits: 20…30 V) |
| Number of pulses per revolution | 10000 for ATV71H......383, 5000 for all ATV61 drives, 5000 for ATV71H...M3, 5000 for ATV71H...M3X, 5000 for ATV71H...N4 |
| Maximum supply current | 0.175 A |
| Protection type | Overload protection, Short-circuit protection |
| Maximum cable distance between devices | 500 m |
| Maximum operating frequency | 300 kHz |
| Input signal | A, B, Compliment of A, Compliment of B/AB/A |
| Input impedance | 1000 Ohm |
| Voltage state 0 guaranteed | <= 1.5 V |
| Voltage state 1 guaranteed | > 11.5...< 25 V |
| Electrical connection | Terminal, connection capacity: 0.2 mm² (AWG 24) <500 m cable length, encoder, 100 mA at 14 V |
Packaging
| Package 1 | 1 PCE, 23.000 cm × 17.000 cm × 7.500 cm (L × W × H), 142.000 g |
| Package 2 | 7 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 1.503 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A3407: frequently asked questions
When can VW3A3407 be shipped?
VW3A3407 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A3407 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A3407 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A3407, subject to availability and destination.
