Schneider Electric VW3A3401

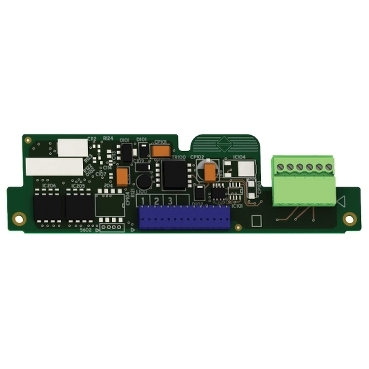

Encoder interface card, Altivar, differential outpt, with RS422 compatible, 5V DC
- MPN
- VW3A3401
- EAN
- 3389118067202
- Category
- Altivar 08
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3A3401?
This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with RS 422 differential outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Encoder interface card |
| Range compatibility | Altivar Lift, Altivar 61, Altivar 71Q, Altivar 71, Altivar 61Q |
| Discrete output type | Differential |
| Communication port protocol | RS422 |
| [Us] rated supply voltage | 5 V DC (voltage limits: 5…5.5 V) |
| Number of pulses per revolution | 10000 for ATV71H......383, 5000 for all ATV61 drives, 5000 for ATV71H...M3, 5000 for ATV71H...M3X, 5000 for ATV71H...N4 |
| Maximum supply current | 0.2 A |
| Protection type | Short-circuit protection, Overload protection |
| Maximum cable distance between devices | 50 m |
| Maximum operating frequency | 300 kHz |
| Input signal | A, B, Compliment of A, Compliment of B |
| Input impedance | 440 Ohm |
| Electrical connection | Terminal, connection capacity: 0.2 mm² (AWG 24) <25 m cable length, encoder, 100 mA at 4.5 V, Terminal, connection capacity: 0.5 mm² (AWG 20) <25 m cable length, encoder, 200 mA at 4.5 V, Terminal, connection capacity: 0.5 mm² (AWG 20) <50 m cable length, encoder, 100 mA at 4.5 V, Terminal, connection capacity: 0.75 mm² (AWG 18) <50 m cable length, encoder, 200 mA at 4.5 V |
| Net weight | 0.2 kg |
Packaging
| Package 1 | 1 PCE, 23.000 cm × 17.000 cm × 7.500 cm (L × W × H), 142.000 g |
| Package 2 | 7 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 1.479 kg |
