Curve AL Parts
Compare Curve AL
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

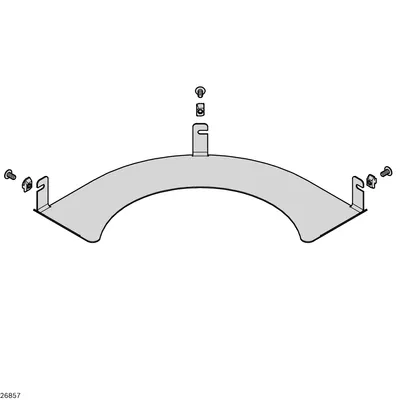

| MPN | Deflection angle [α] [°] | Size [b] [mm] | Weight [kg] | Dimension A [mm] [mm] | Required accessories |
|---|---|---|---|---|---|
| 3842551551 | 90 | 90 | 0.6 | — | — |
| 3842551550 | 45 | 90 | 0.43 | — | — |
| 3842551549 | 30 | 90 | 0.39 | — | — |
| 3842551552 | 180 | 90 | 0.83 | — | — |
| 3842551547 | 90 | 65 | 0.43 | — | — |
| 3842551546 | 45 | 65 | 0.31 | — | — |
| 3842551545 | 30 | 65 | 0.29 | — | — |
| 3842551548 | 180 | 65 | 0.57 | — | — |
| 3842559127 | 90 | 90 | 2.75 | 636.3 | Slide rail: Length calculation |

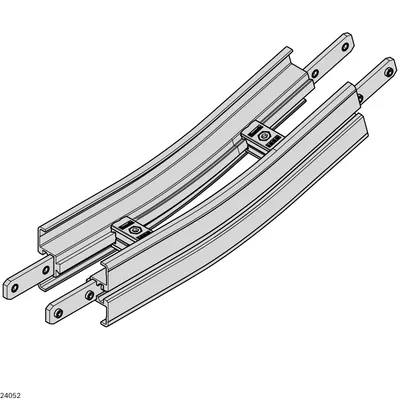

| 3842547089 | 7.5 | 90 | 1.1 | 268.9 | Slide rail: Length calculation |
| 3842547088 | 5 | 90 | 1.01 | 246.2 | Slide rail: Length calculation |
| 3842547092 | 45 | 90 | 1.78 | 548.7 | Slide rail: Length calculation |
| 3842547091 | 30 | 90 | 1.49 | 453.9 | Slide rail: Length calculation |
| 3842547090 | 15 | 90 | 1.2 | 334.9 | Slide rail: Length calculation |
| 3842547079 | 90 | 90 | 3.4 | 845 | Slide rail: Length calculation |

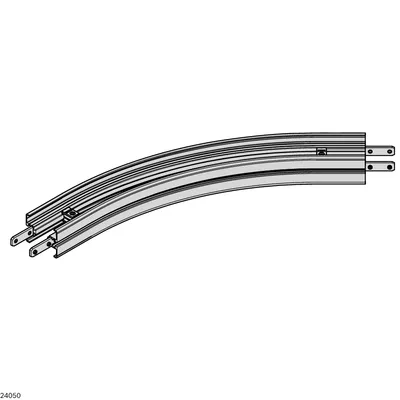

| 3842547076 | 90 | 90 | 2.71 | 645 | Slide rail: Length calculation |
| 3842547078 | 45 | 90 | 2.11 | 352.6 | Slide rail: Length calculation |
| 3842547075 | 45 | 90 | 1.76 | 294 | Slide rail: Length calculation |
| 3842547077 | 30 | 90 | 1.7 | 277.8 | Slide rail: Length calculation |
| 3842559126 | 90 | 65 | 2.64 | 636.3 | Slide rail |
| 3842547084 | 7.5 | 65 | 1.01 | 268.9 | Slide rail: Length calculation |
| 3842547083 | 5 | 65 | 0.96 | 246.2 | Slide rail |
| 3842547087 | 45 | 65 | 1.73 | 548.7 | Slide rail: Length calculation |
| 3842547086 | 30 | 65 | 1.44 | 453.9 | Slide rail: Length calculation |
