Curve AL Parts
Compare Curve AL
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

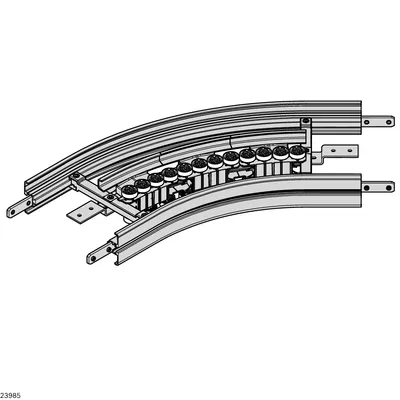

| MPN | Deflection angle [α] [°] | Dimension A [mm] [mm] | Actual chain length [m] | Effective sliding rail length [m] | Weight [kg] |
|---|---|---|---|---|---|
| 3842547100 | 15 | 334.9 | 2x 0,33 | 8x 0,33 | 2.27 |
| 3842547062 | 90 | 680 | 2x 0,98 | 5x 0,98 | 5.11 |
| 3842547061 | 45 | 580.8 | 2x 0,59 | 5x 0,59 | 3.05 |
| 3842547060 | 30 | 476.6 | 2x 0,46 | 5x 0,46 | 2.43 |
| 3842547063 | 180 | 1160 | 2x 1,77 | 5x 1,77 | 9.16 |

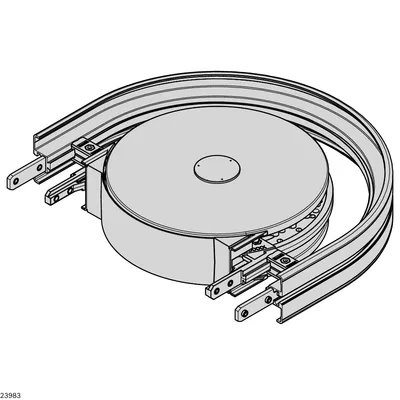

| 3842559128 | 90 | 636.3 | — | — | 2.87 |

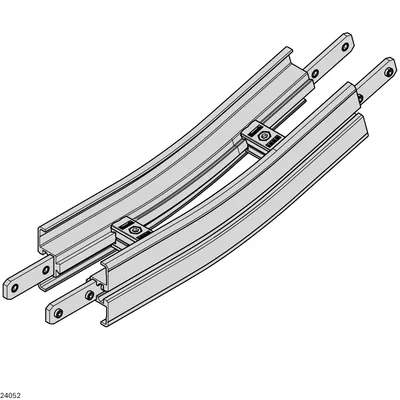

| 3842547094 | 7.5 | 268.9 | 2x 0,26 | 4x 0,26 | 1.07 |
| 3842547093 | 5 | 246.2 | 2x 0,24 | 4x 0,24 | 1.07 |
| 3842547097 | 45 | 548.7 | 2x 0,59 | 4x 0,59 | 1.83 |
| 3842547096 | 30 | 453.9 | 2x 0,46 | 4x 0,46 | 1.54 |
| 3842547095 | 15 | 334.9 | 2x 0,33 | 4x 0,33 | 1.25 |
| 3842547082 | 90 | 860 | 2x 1,3 | 4x 1,3 | 3.51 |
| 3842547081 | 45 | 378.2 | 2x 0,75 | 4x 0,75 | 2.16 |

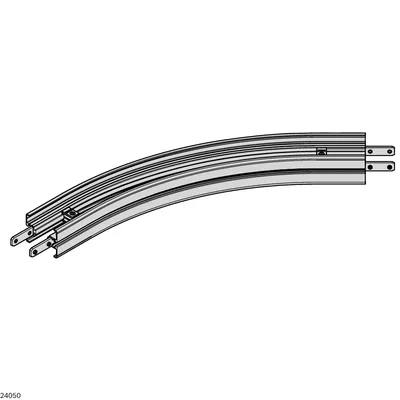

| 3842547080 | 30 | 255.7 | 2x 0,56 | 4x 0,56 | 1.75 |
| 3842547054 | 90 | 210.5 | 2x 0,46 | 2x 0,58 | 4.16 |
| 3842547053 | 45 | 210.5 | 2x 0,33 | 2x 0,41 | 3.4 |
| 3842547052 | 30 | 210.5 | 2x 0,28 | 2x 0,35 | 3.3 |
| 3842547055 | 180 | 210.5 | 2x 0,72 | 2x 0,91 | 4.8 |
| 3842547050 | 90 | 185.5 | 2x 0,44 | 2x 0,53 | 3.4 |
| 3842547049 | 45 | 185.5 | 2x 0,32 | 2x 0,38 | 3.3 |
| 3842547048 | 30 | 185.5 | 2x 0,28 | 2x 0,34 | 3.2 |
| 3842547051 | 180 | 185.5 | 2x 0,68 | 2x 0,82 | 3.6 |
| 3842547058 | 90 | 240.5 | 2x 0,48 | 2x 0,63 | 3.5 |
| 3842547057 | 45 | 240.5 | 2x 0,34 | 2x 0,44 | 3.4 |
Common to all listed parts
| Scope of delivery | Incl. fastening material for mounting to the AL section profile |
| Delivery information | Fully assembled |
