Bosch Rexroth 3842547091

CURVE 90+ VERT AL 30°R500

MPN: 3842547091
Category: Curve AL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547091?

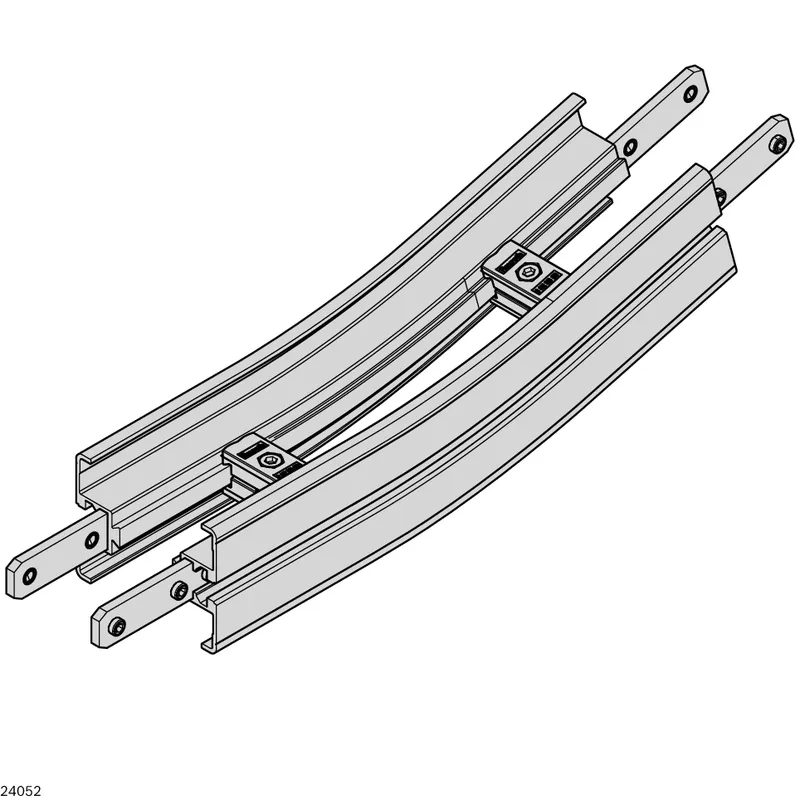

Vertical curve AL VFplus 90 30°

The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa

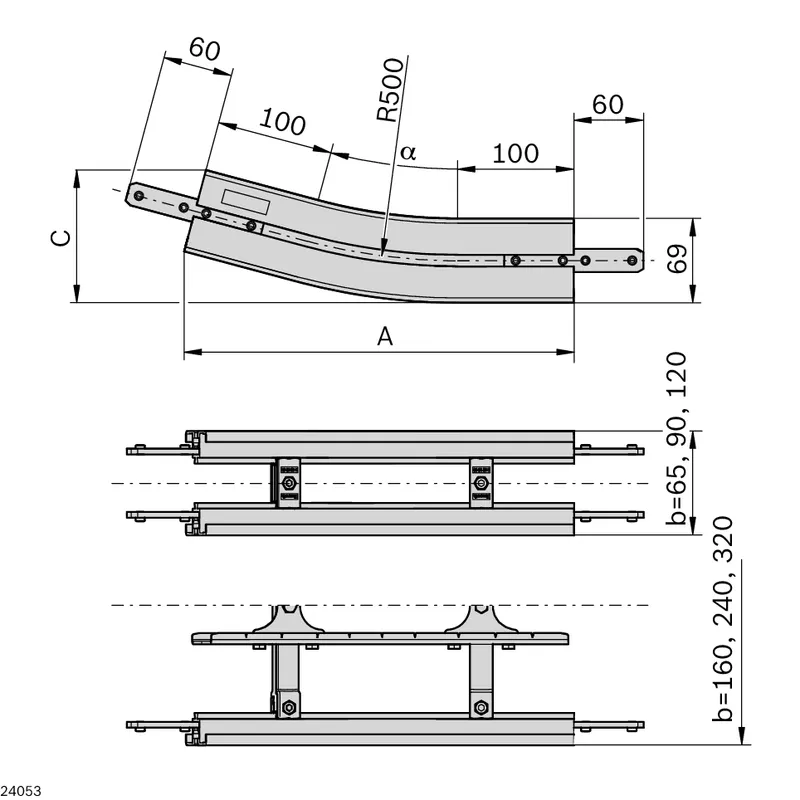

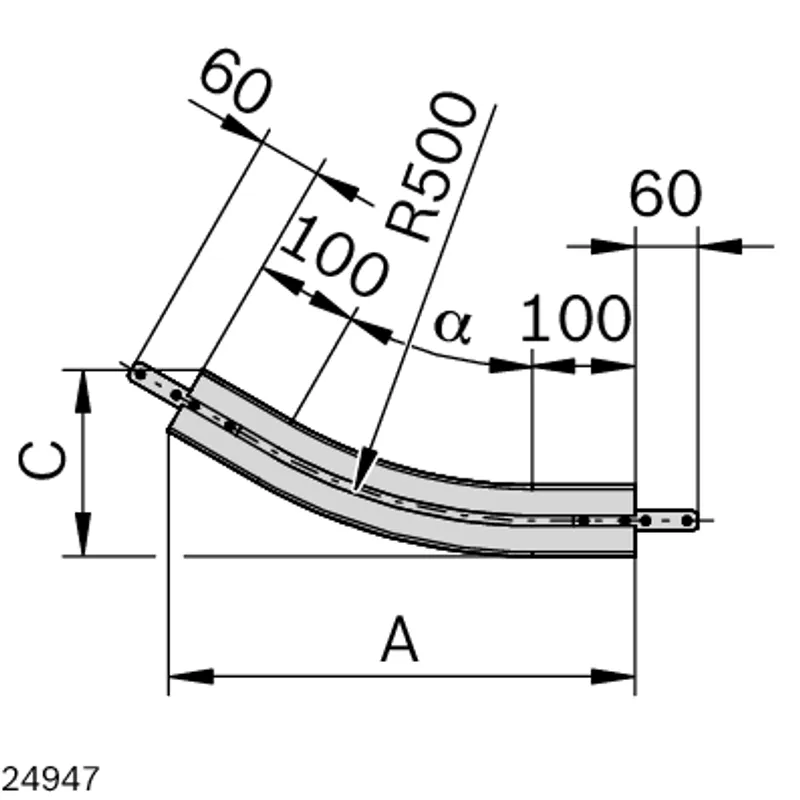

Specifications

Deflection angle [α] [°]	30
Dimension A [mm] [mm]	453.9
Size [b] [mm]	90
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Cross connector: Diecast aluminum; Profile connector: Steel, galvanized; Profile: Aluminum, anodized; Support profile from size 160: Non-rusting steel 1.4301
Actual chain length [m]	2x 0,46
Effective sliding rail length [m]	4x 0,46
Required accessories	Slide rail: Length calculation
Weight [kg]	1.49
