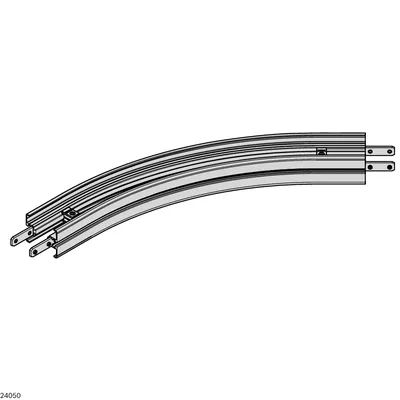

Curve AL Parts
Compare Curve AL
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Deflection angle [α] [°] | Dimension A [mm] [mm] | Actual chain length [m] | Effective sliding rail length [m] | Weight [kg] |
|---|---|---|---|---|---|
| 3842547085 | 15 | 334.9 | 2x 0,33 | 4x 0,33 | 1.15 |
| 3842547074 | 90 | 832.5 | 2x 1,3 | 4x 1,3 | 3.3 |
| 3842547073 | 45 | 331.2 | 2x 0,75 | 4x 0,75 | 2.06 |
| 3842547072 | 30 | 204.4 | 2x 0,56 | 4x 0,56 | 1.65 |
| 3842547108 | 7.5 | 268.9 | 2x 0,26 | 8x 0,26 | 2.42 |
| 3842547107 | 5 | 246.2 | 2x 0,24 | 8x 0,24 | 2.36 |
| 3842547110 | 30 | 453.9 | 2x 0,46 | 8x 0,46 | 2.56 |
| 3842547109 | 15 | 334.9 | 2x 0,33 | 8x 0,33 | 2.42 |
| 3842547070 | 90 | 760 | 2x 0,98 | 5x 0,98 | 5.47 |

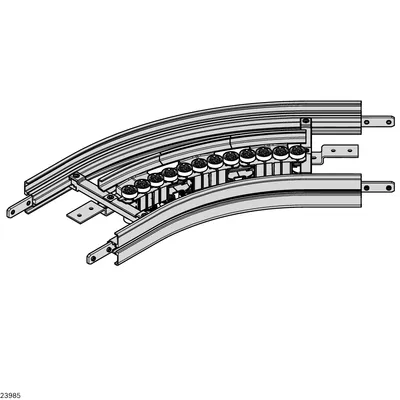

| 3842547069 | 45 | 637.4 | 2x 0,59 | 5x 0,59 | 3.22 |
| 3842547068 | 30 | 516.6 | 2x 0,46 | 5x 0,46 | 2.59 |
| 3842547071 | 180 | 1320 | 2x 1,77 | 5x 1,77 | 9.8 |
| 3842547104 | 7.5 | 268.9 | 2x 0,26 | 8x 0,26 | 2.35 |
| 3842547103 | 5 | 246.2 | 2x 0,24 | 8x 0,24 | 2.29 |
| 3842547106 | 30 | 453.9 | 2x 0,46 | 8x 0,46 | 2.49 |
| 3842547105 | 15 | 334.9 | 2x 0,33 | 8x 0,33 | 2.35 |
| 3842547066 | 90 | 720 | 2x 0,98 | 5x 0,98 | 5.29 |
| 3842547065 | 45 | 609.1 | 2x 0,59 | 5x 0,59 | 3.12 |
| 3842547064 | 30 | 496.6 | 2x 0,46 | 5x 0,46 | 2.5 |
| 3842547067 | 180 | 1240 | 2x 1,77 | 5x 1,77 | 9.41 |
| 3842547099 | 7.5 | 268.9 | 2x 0,26 | 8x 0,26 | 2.27 |
| 3842547098 | 5 | 246.2 | 2x 0,24 | 8x 0,24 | 2.21 |

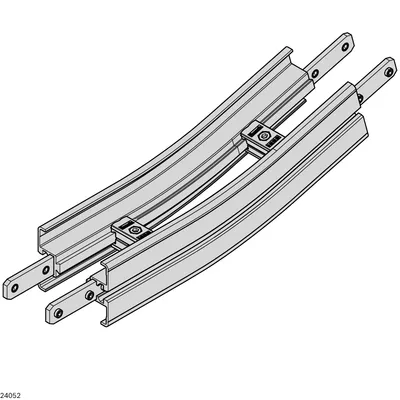

| 3842547102 | 45 | 548.7 | 2x 0,59 | 8x 0,59 | 2.97 |
| 3842547101 | 30 | 453.9 | 2x 0,46 | 8x 0,46 | 2.41 |
Common to all listed parts
| Scope of delivery | Incl. fastening material for mounting to the AL section profile |
| Delivery information | Fully assembled |
| Required accessories | Slide rail: Length calculation |
